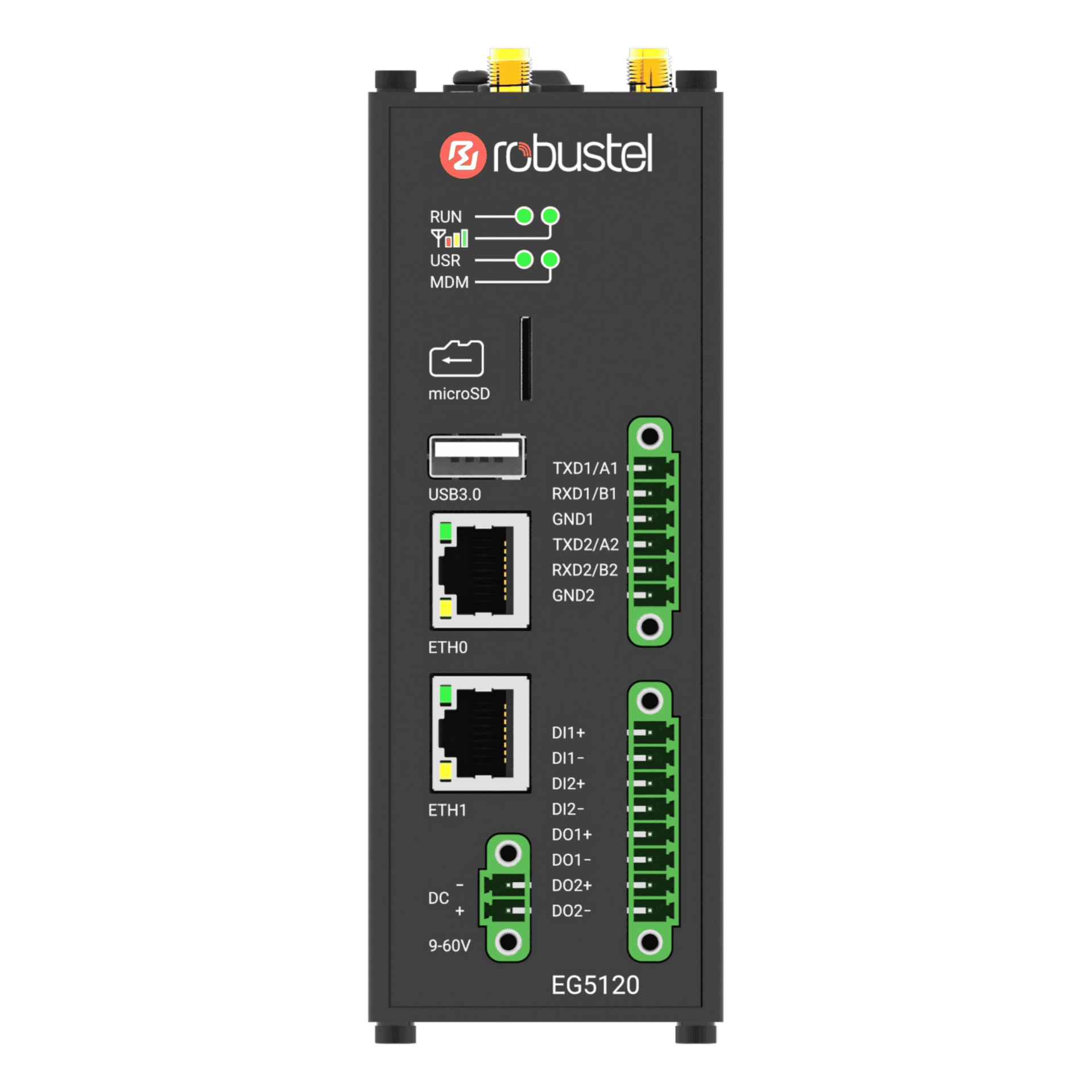

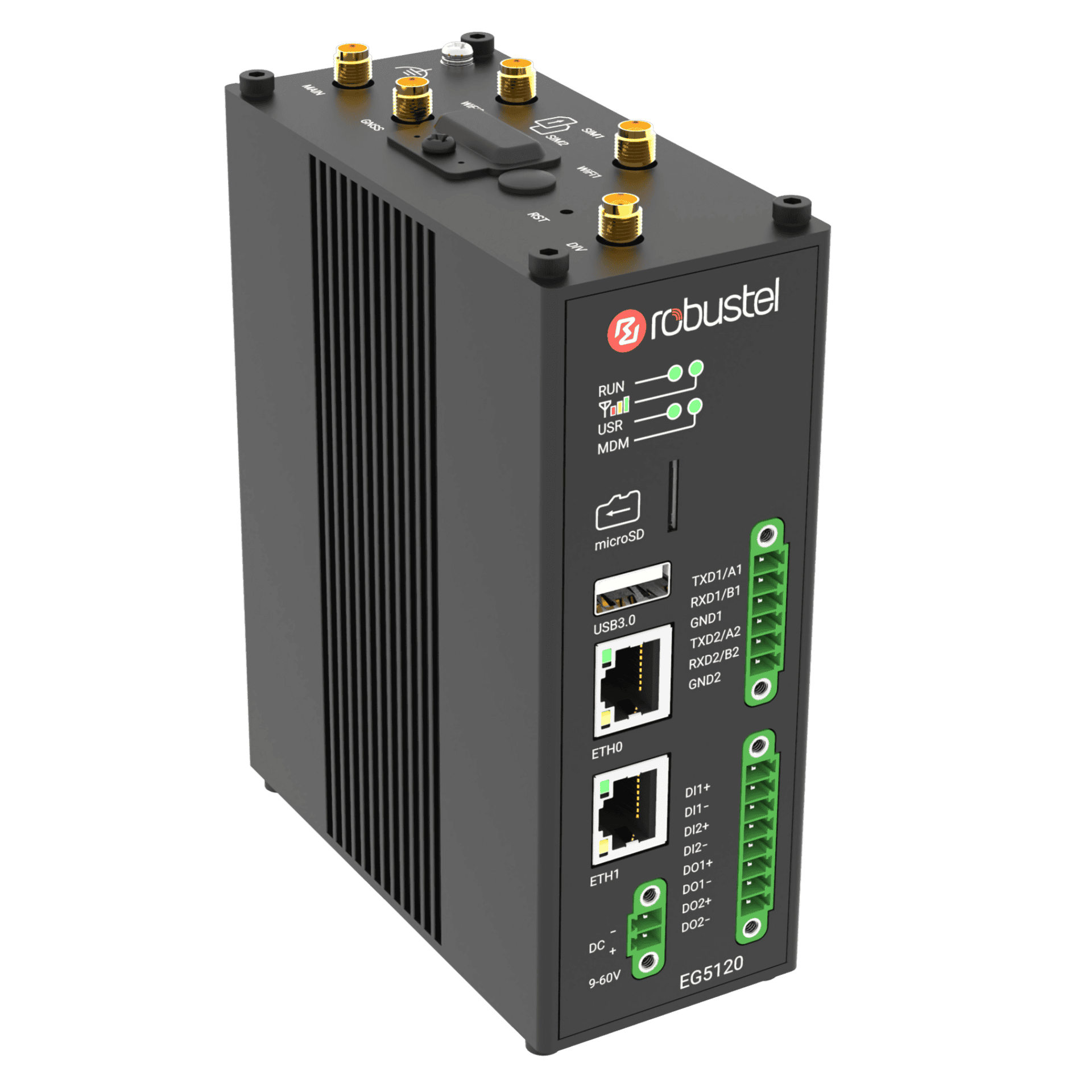

Robustel EG5120
Industrial edge computing gateway with Dual-SIM 5G or 4G LTE, Serial, GNSS, DI/DO, Bluetooth and a Debian-based OS
The Robustel EG5120 is a 5G-ready industrial edge gateway that combines secure cellular backhaul with on-device processing for real-time decisions at the edge. Built on RobustOS Pro (Debian 11), it supports Docker containers and Debian packages so you can deploy protocol bridges, data buffering, and ML workloads alongside your equipment. A quad-core 1.6 GHz Cortex-A53 with 16 GB eMMC and a 2.3 TOPS NPU accelerates inference for use cases like vision or anomaly detection.
Connectivity options include dual-SIM 5G/4G/3G/2G and Ethernet WAN with link backup; security covers IPsec, OpenVPN, GRE, L2TP, PPTP, and DMVPN. Integration is straightforward via two software-configurable RS-232/RS-485 ports, 2×DI/2×DO, native Modbus TCP/RTU, and MQTT-to-cloud bridging, with optional 802.11ac Wi-Fi and Bluetooth 5.2. Fleet operations scale through RCMS for monitoring, configuration, and updates.
The result is a rugged, open platform for reliable connectivity and high-performance edge processing in industrial and smart-city deployments.
DUAL-SIM CELLULAR
5G, 4G/LTE, 3G & 2G with Dual-SIM Card support for failover
MODULAR FUNCTION
Optional modular support for Bluetooth, GNSS & Wi-Fi
INTERFACES
1x WAN + 1x LAN or 2x LAN, RS-232, RS-485
OPERATING SYSTEM
RobustOS Pro – Full Linux Debian Operating System
RCMS ON-BOARD
RCMS Cloud device management enabled
Edge Gateway Series ‘Quick Pitch’ Video
Example EG5120 Use Cases

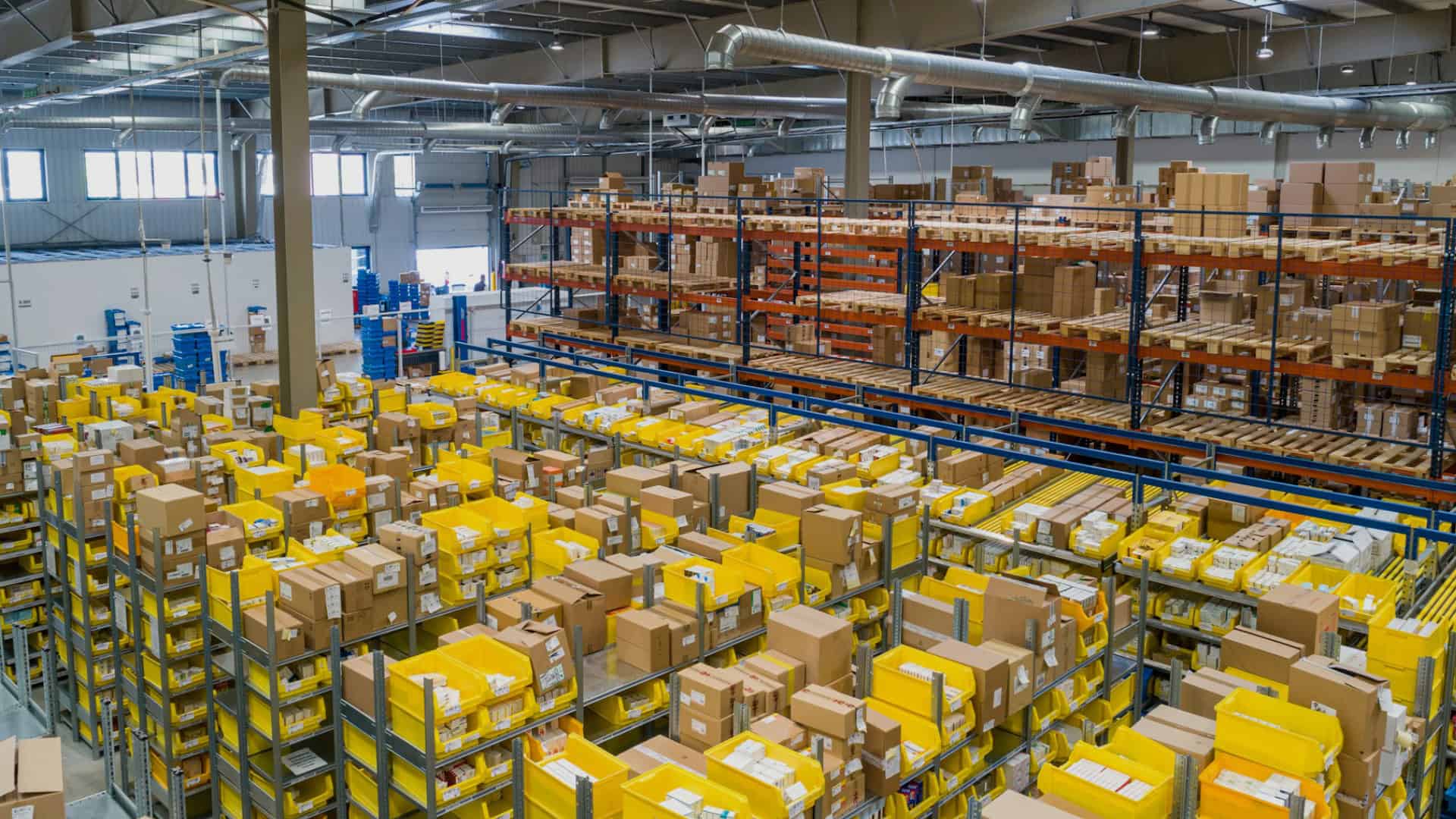

Warehouse Safety & Efficiency
Confirm empty bays before approach, detect overhangs and hazards; run models locally, forward events to in-house systems; reduce bandwidth by sending metadata, not video.
Predictive Maintenance
Ingest vibration/energy data via RS-485/Modbus, score anomalies at the Edge with your data models, then publish MQTT/REST events to maintenance platforms with secure VPN backhaul.
Smart Traffic Management
Aggregate controllers, sensors, and cameras; execute traffic counting/classification at the edge; send event summaries to your ITS platform with dual-SIM resilience and centralized management.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

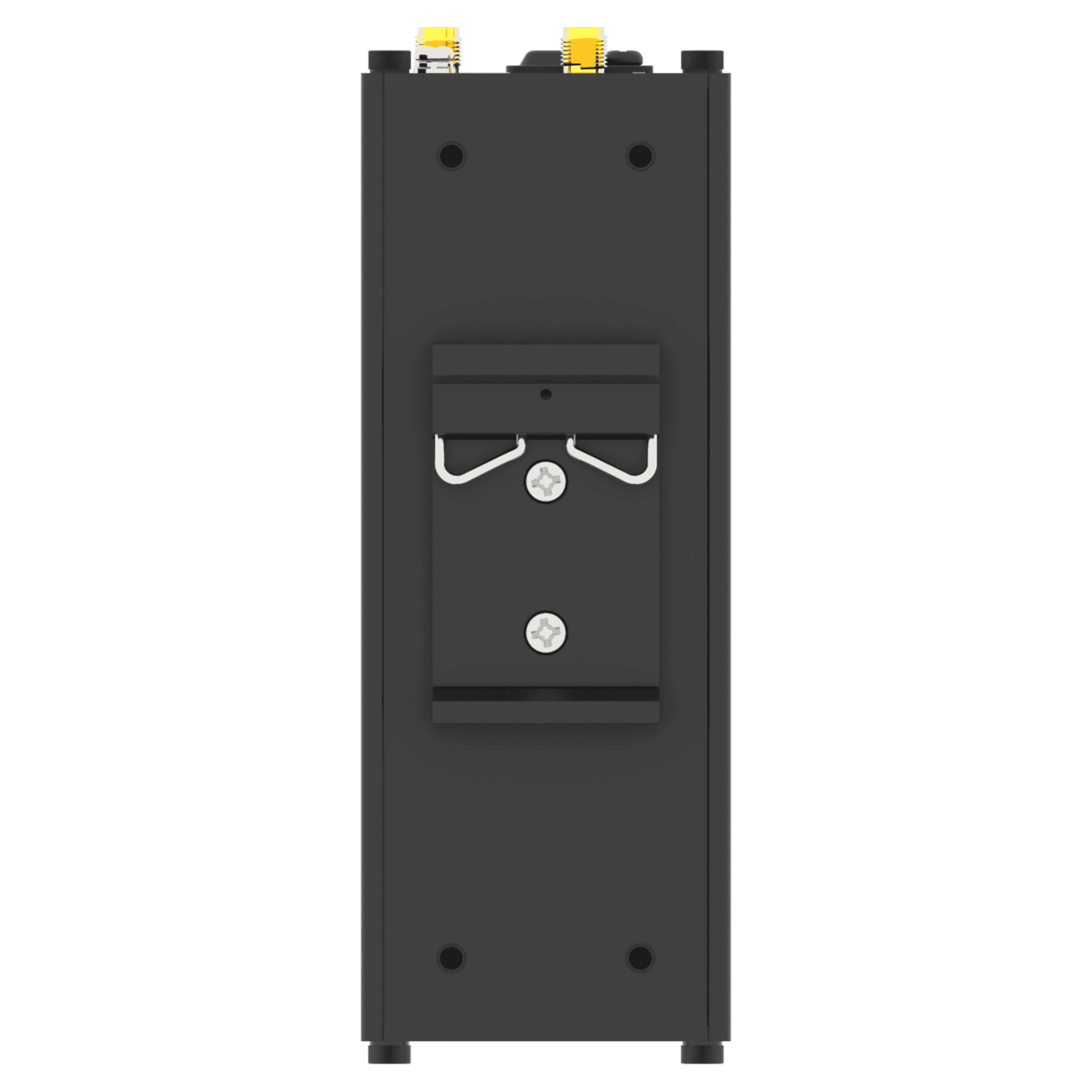

DIN Rail Mount
Wall Mount
System Architecture
|
Operating System |
RobustOS Pro |
|
CPU |
Quad core Cortex-A53, 1.6 GHz |
|
RAM |
2 GB DDR4 |
|
Flash |
16 GB eMMC |
|
NPU |
2.3 TOPS |
Cellular
|
Supported Technologies |
5G, 4G/LTE, 3G, 2G |
|
Antennas |
5G: 4 |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
2 x RS-232/RS-485 (software configurable) |
|
Connector |
6-pin 3.5 mm terminal block with lock |
|
ESD Protection |
8 KV air, 4 KV contact |
|
Baud Rate |
300 bps to 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
|
DI/DO Ports |
2 x DI + 2 x DO, wet contact |
|
Connector |
8-pin 3.5 mm terminal block with lock (DI/DO) |
|
Absolute Maximum VDC |
+30 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi (Optional)
|
Wi-Fi Antennas |
2 (Wi-Fi 0 + Wi-Fi 1) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
Bluetooth (Optional)
|
Bluetooth Antennas |
1 (Multiplexing Wi-Fi antenna) |
|
Connector |
RP-SMA-K |
|
Standards |
Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
GNSS/GPS (Optional)
|
GNSS Antennas |
5G: Optional, requires a 4-in-1 Combo Antenna |
|
Connector |
SMA-K |
|
Technology |
GPS |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x Signal, 1 x USR, 1 x MDM |
|
Watchdog |
External |
|
USB |
1 x USB 2.0 (host), Type A, 5 V, 500 mA |
|
SD-Card |
1x MicroSD |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 5 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 567 g |
|
Dimensions |
49 x 105 x 128 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-40 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
14GB |
|
RAM available for SDK |
1.5GB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 4 EN 61000-4-11 (Dips) |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
EG5120-A2AAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, CB, RCM |
A009000718 |
1 x EG5120 Gateway (B Code: B090701) |
|
EG5120-A2AAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, CB, RCM |
A009000719 |
1 x EG5120 Gateway (B Code: B090701) |
|
EG5120-A2CAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, CB, RCM, TDRA |
A009000720 |
1 x EG5120 Gateway (B Code: B090703) |
|
EG5120-A2CAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, CB, RCM, TDRA |
A009000721 |
1 x EG5120 Gateway (B Code: B090703) |
|
EG5120-A2AAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, CB, RCM, FCC, IC |
A009000714 |
1 x EG5120 Gateway (B Code: B090702) |
|
EG5120-A2AAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, CB, RCM, FCC, IC |
A009000715 |
1 x EG5120 Gateway (B Code: B090702) |
|
EG5120-A2CAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, CB, RCM, |
A009000716 |
1 x EG5120 Gateway (B Code: B090704) |
|
EG5120-A2CAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, CB, RCM, |
A009000717 |
1 x EG5120 Gateway (B Code: B090704) |
|
EG5120-A2AAZ-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A009000722 |
1 x EG5120 Gateway (B Code: B090708) |
|
EG5120-A2AAZ-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A009000723 |
1 x EG5120 Gateway (B Code: B090708) |
|
EG5120-A2CAZ-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A009000724 |
1 x EG5120 Gateway (B Code: B090709) |
|
EG5120-A2CAZ-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A009000725 |
1 x EG5120 Gateway (B Code: B090709) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
