Robustel R2011e
Industrial 4G/LTE Dual-SIM Router with 1x eSIM/eUICC, 1x 2FF SIM & 5x ETH
The Robustel R2011e is an industrial 4G/LTE router that pairs the stability of the R2011 platform with a mixed SIM design: one physical SIM plus an embedded MFF2 eSIM/eUICC aligned to the GSMA SGP.22 standard. You retain dual-path resilience, but replace the second removable SIM with a digitally managed profile—better suited to long-running deployments and fleets that move across borders or evolve over time.
Its eSIM capabilities let you provision and switch operator profiles remotely, adjusting coverage, roaming behaviour, and commercial terms without on-site intervention. Built-in safeguards make this practical at scale, including secure profile control, automatic fallback to a known-good profile if activation fails, and profile rotation to reduce reliance on fixed roaming arrangements and avoid maintenance-heavy SIM changes.
For networking, five 10/100 Ethernet ports (configurable as 4×LAN + 1×WAN or 5×LAN) support straightforward segmentation on-site without an external switch. Link Manager maintains continuity by orchestrating failover across cellular, Ethernet, and optional Wi-Fi, while remote administration scales through Robustel Cloud Manager Service (RCMS) for monitoring, configuration, and Zero-Touch eSIM provisioning across large device estates.
eSIM/eUICC Failover
4G/LTE, 3G & 2G with eSIM & physical SIM support for failover
eSIM Provisioning
Remotely provision and deploy up to 6 eSIM/eUICC Profiles
INTERFACES
1x WAN, 4x LAN or 5x LAN
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device & eSIM management enabled
R2011e Product Video
Example R2011e Use Cases
Branch Network Aggregation
Provide reliable cellular connectivity for branch networks with multiple wired devices. Multi-Ethernet ports enable simple aggregation, with SIM + eSIM redundancy and centralized management via RCMS.
Industrial Control Cabinets
Connect PLCs, HMIs, and edge devices inside control cabinets using multiple Ethernet ports. eSIM simplifies operator management while failsafe mechanisms ensure stable connectivity.
Infrastructure & Facility Support
Deliver secure IP backhaul for facilities requiring several wired endpoints. Remote provisioning and monitoring via RCMS reduce on-site maintenance effort.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

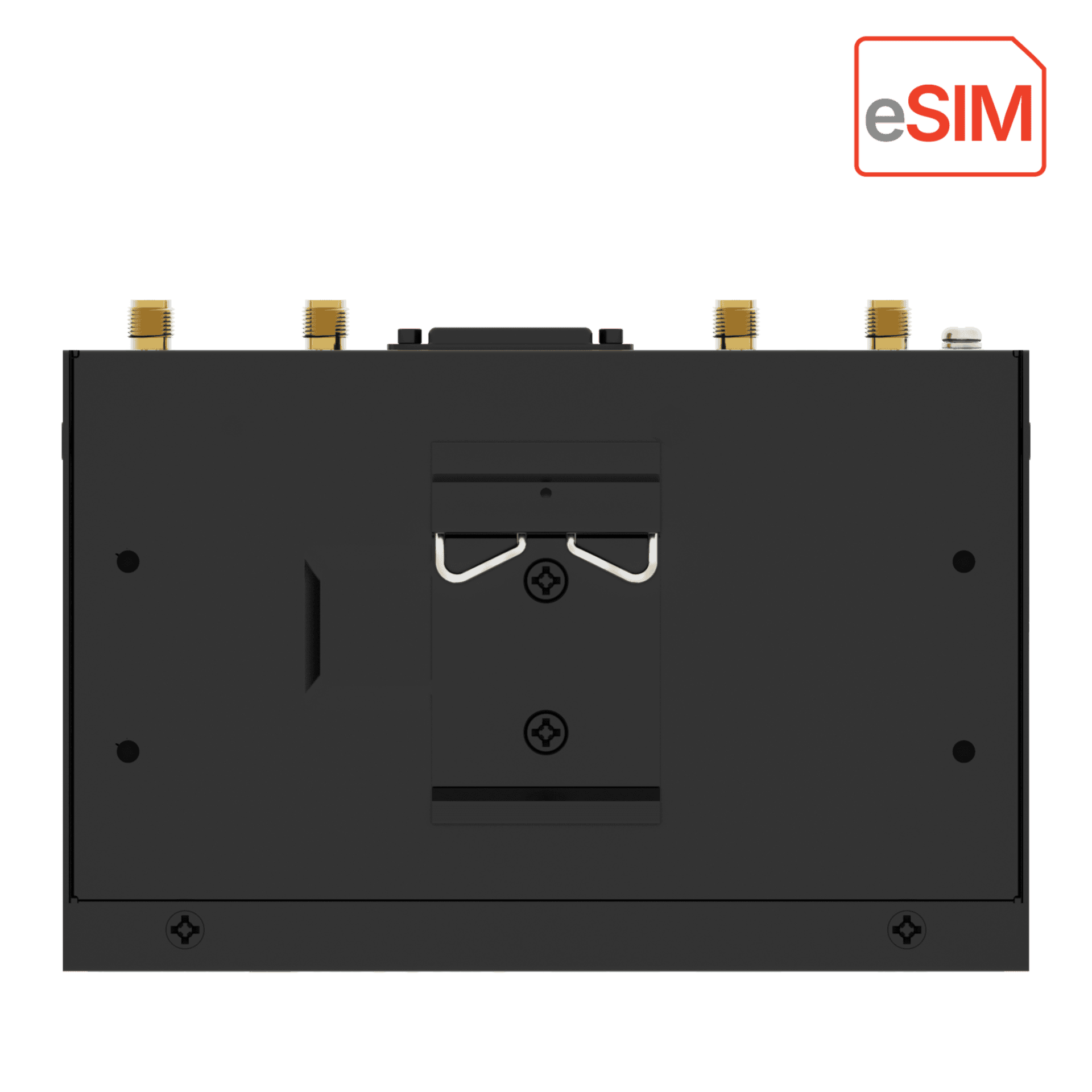

DIN Rail Mount

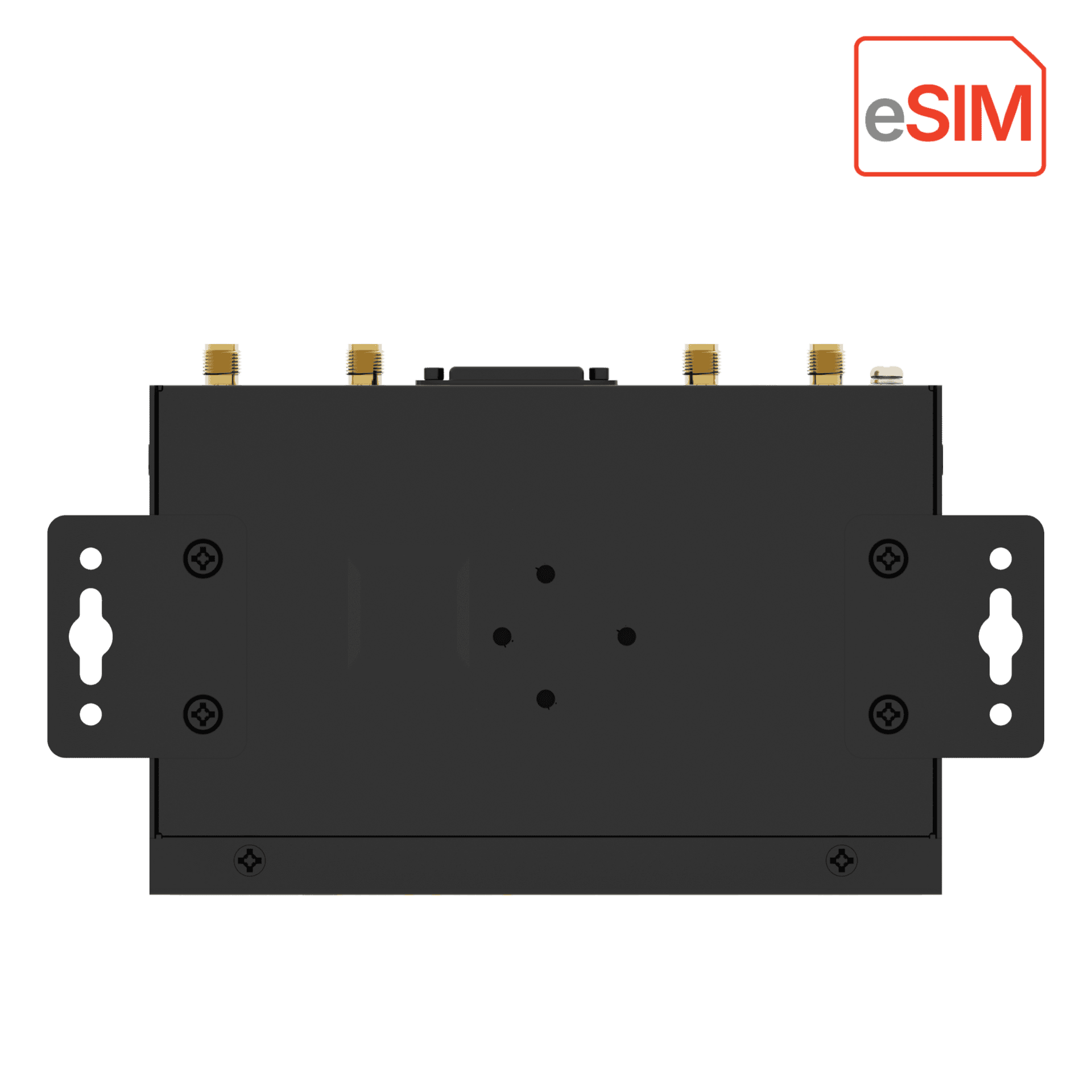

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
MIPS, 650 MHz |
|
RAM |
128MB |
|
Flash |
32MB |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
1x eSIM/eUICC (MFF2) and 1 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN |
|
Magnet Isolation Protection |
1.5 KV |
PoE In (Optional)
|
PoE Ports |
WAN1 |
|
PoE Standards |
802.3at PD |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 b/g/n, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
64/128 AES, TKIP |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
3 x RSSI, 1 x RUN, 1 x MDM, 1 x Wi-Fi |
|
Watchdog |
Built-in |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5mm female socket with lock |
|
Input Voltage |
12/24 V DC, 9 ~ 36 V DC |
|
Power Consumption |
Idle: 1 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 350g |
|
Dimensions |
30 x 82 x 127 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-35 – +75 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
16MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R2011e |
4G LTE FDD: B1/3/5/7/8/20/28 |
CE, UKCA |
A007000725 |
1 x R2011e Router |
|
R2011e |
4G LTE FDD: B1/3/5/7/8/20/28 |
CE, UKCA |
A007000726 |
1 x R2011e Router |
NOTE:
1. For more information about regional & carrier specific variants please contact us
