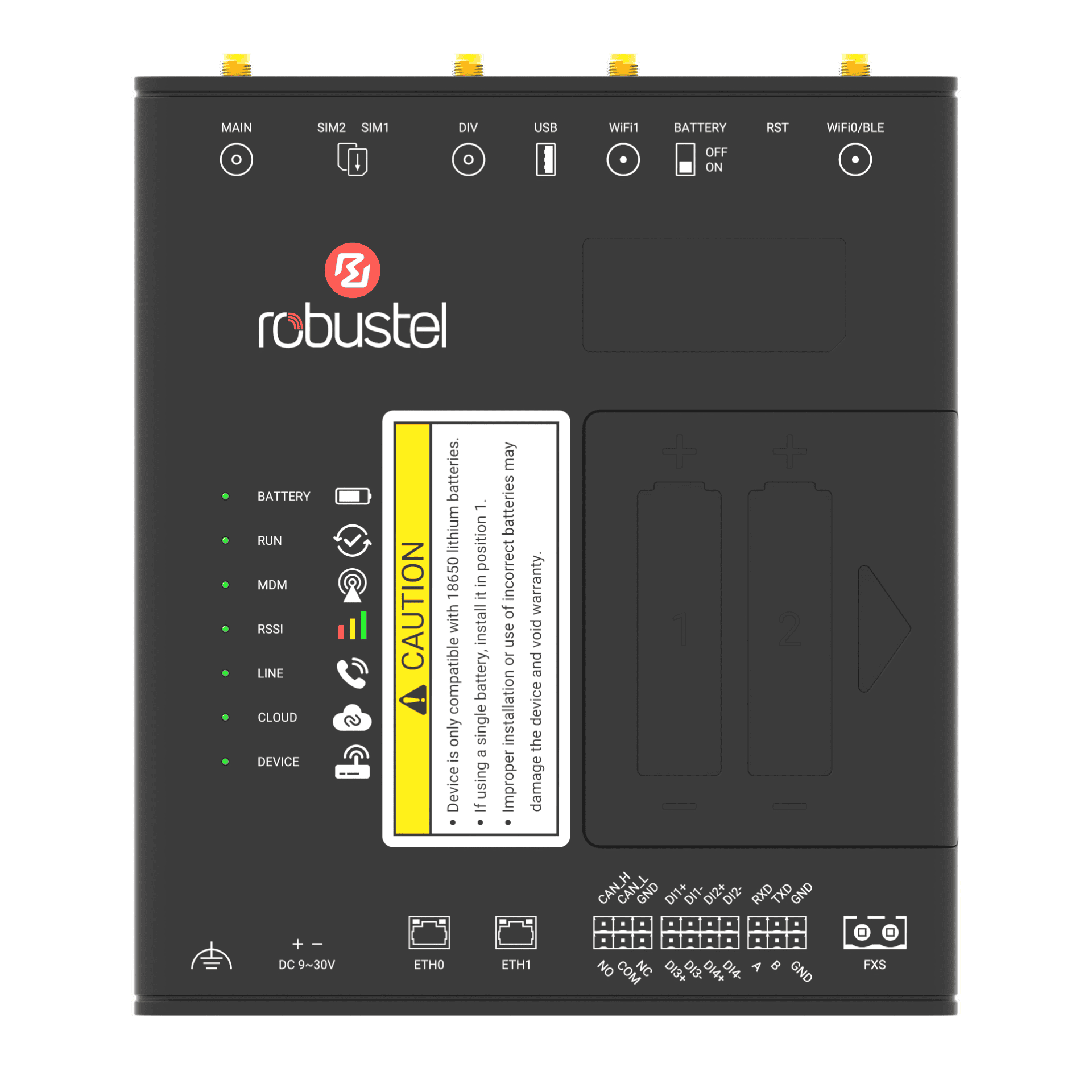

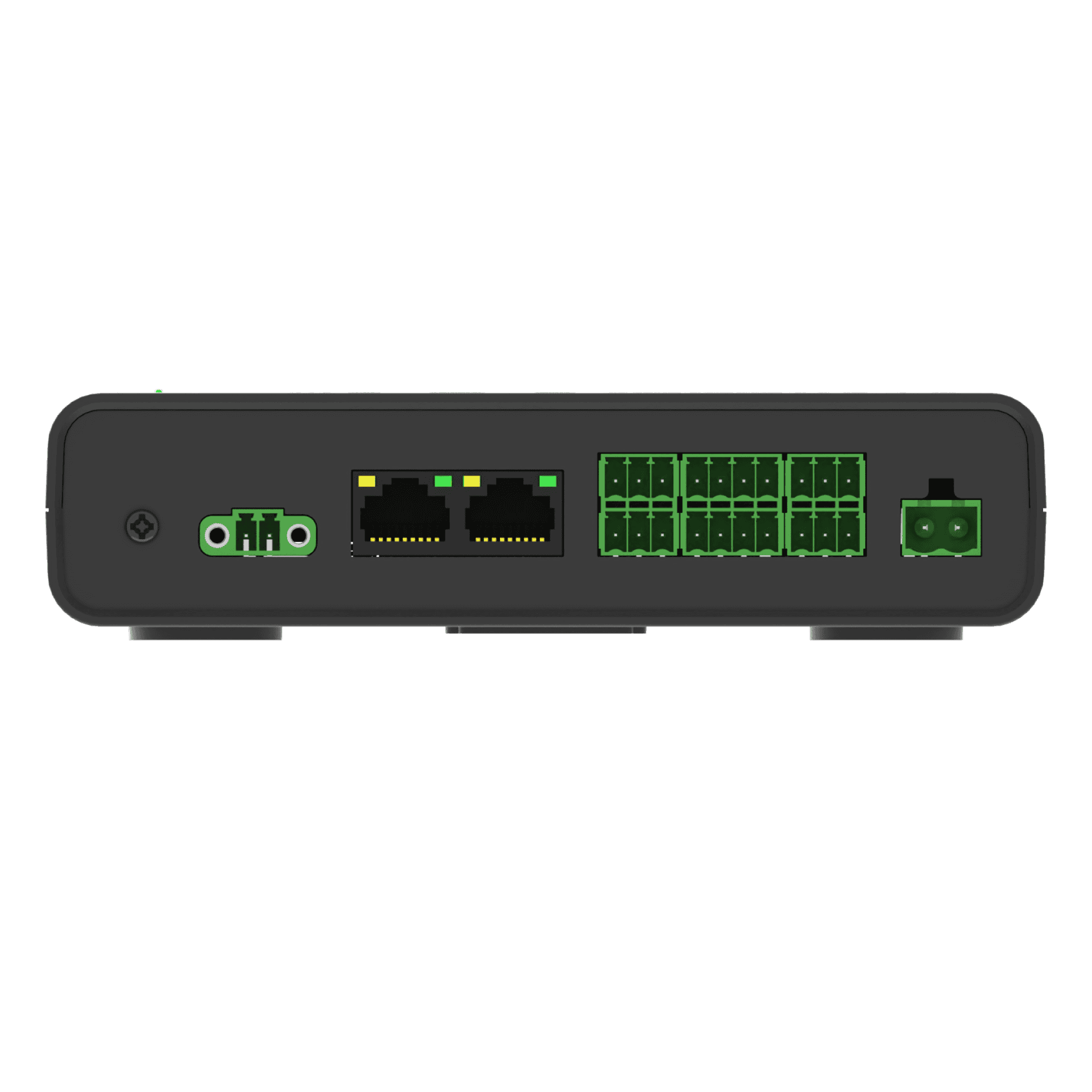

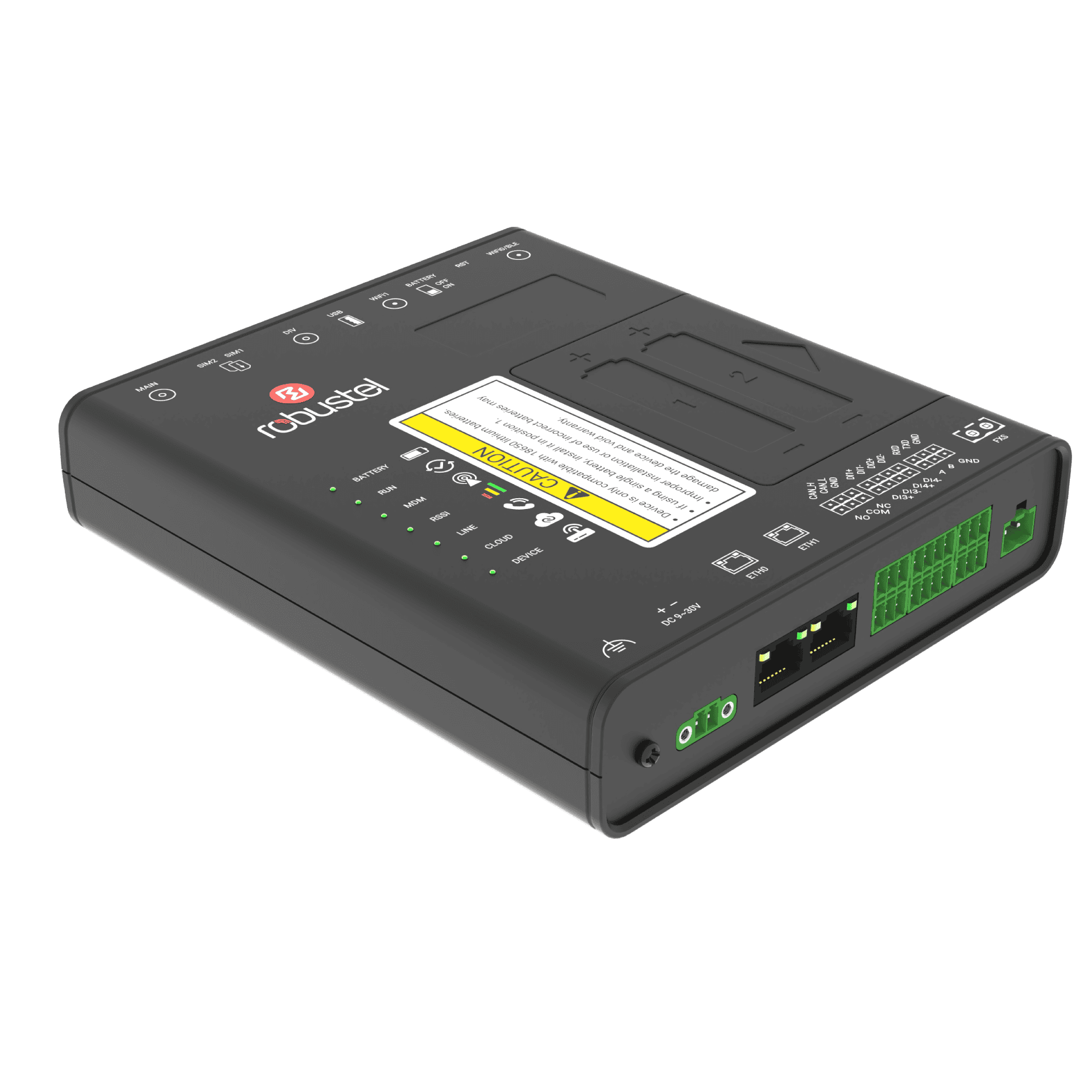

Robustel EV8100
Industrial VoIP Gateway for PSTN & POTS Line Replacement
The Robustel EV8100 is a compact, carrier-certified VoIP gateway designed for seamless migration from traditional PSTN (Public Switched Telephone Network) and POTS (Plain Old Telephone Service) lines to modern IP-based voice networks over 4G LTE. Built for industrial reliability, the EV8100 delivers secure and cost-effective voice connectivity for critical applications — from elevator emergency phones to intercom systems, vending machines, and legacy alarm panels.
Featuring an FXS interface for plug-and-play analog device connection and dual SIM support for mobile network redundancy, the EV8100 acts as a drop-in replacement for analog lines where fixed-line access is unavailable or being decommissioned.
Trusted by elevator integrators worldwide and compliant with EN 81-28 and AS1735 standards, the EV8100 is the ideal VoIP gateway for telcos, OEMs, and system integrators modernizing their voice infrastructure.
DUAL-SIM CELLULAR
4G/LTE, 3G & 2G with Dual-SIM Card support for failover
VoIP & VoLTE
Supports VoIP and VoLTE, with VoLTE as a back-up voice line
INTERFACES
1x FXS, 2x LAN, 1x RS232,
1x RS485, 1 x CAN, 4x DI
OPERATING SYSTEM
RobustOS Pro – Full Linux Debian Operating System
RCMS ON-BOARD
RCMS Cloud device management enabled
EV8100 ‘Quick Pitch’ Video
Example EV8100 Use Cases

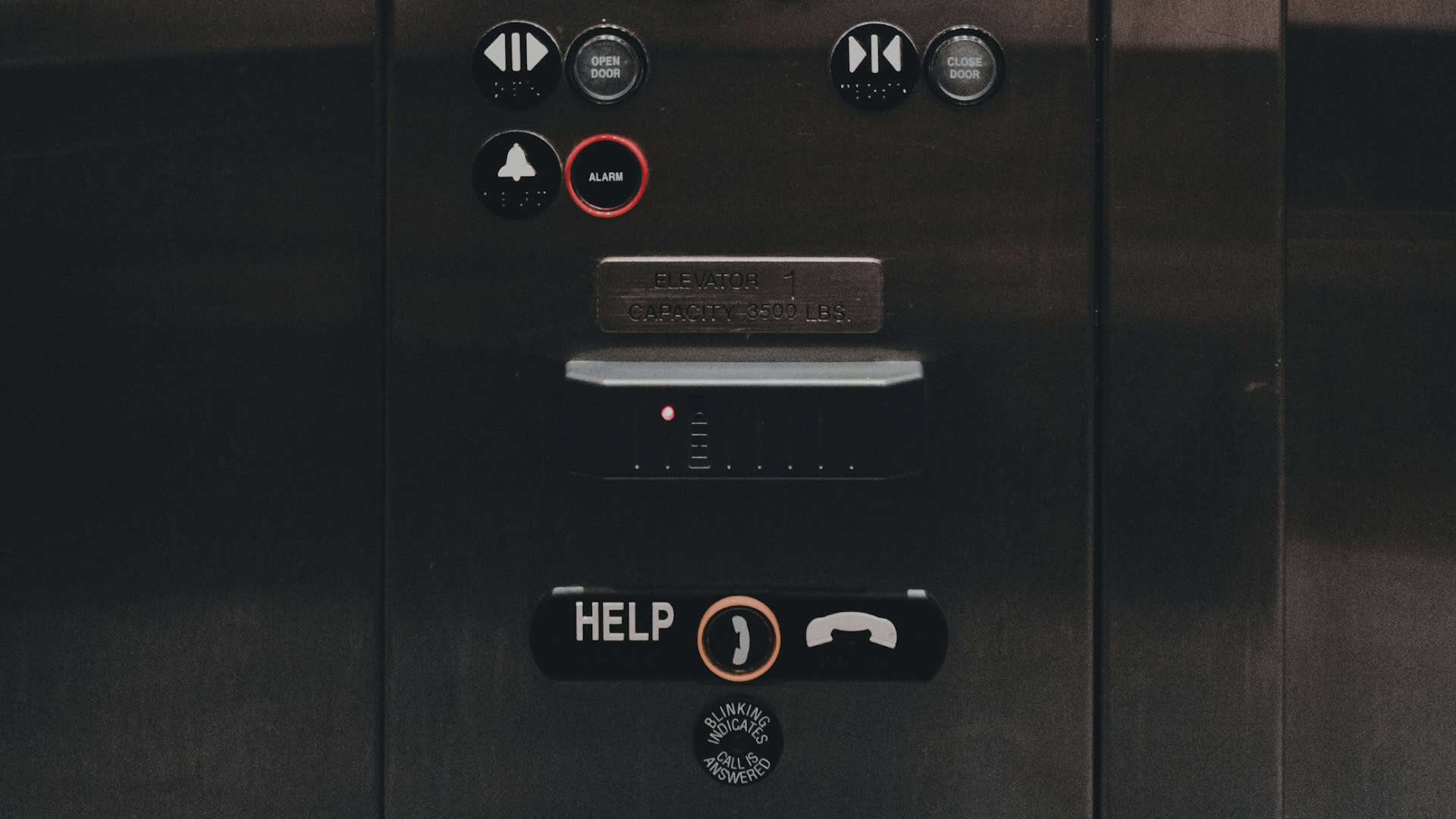

Elevator Voice Transmission
The EV8100 is a 4G/LTE VoIP gateway enabling reliable, EN81-28 & AS1735 compliant emergency voice calls for elevators, ideal for replacing analog communication lines.

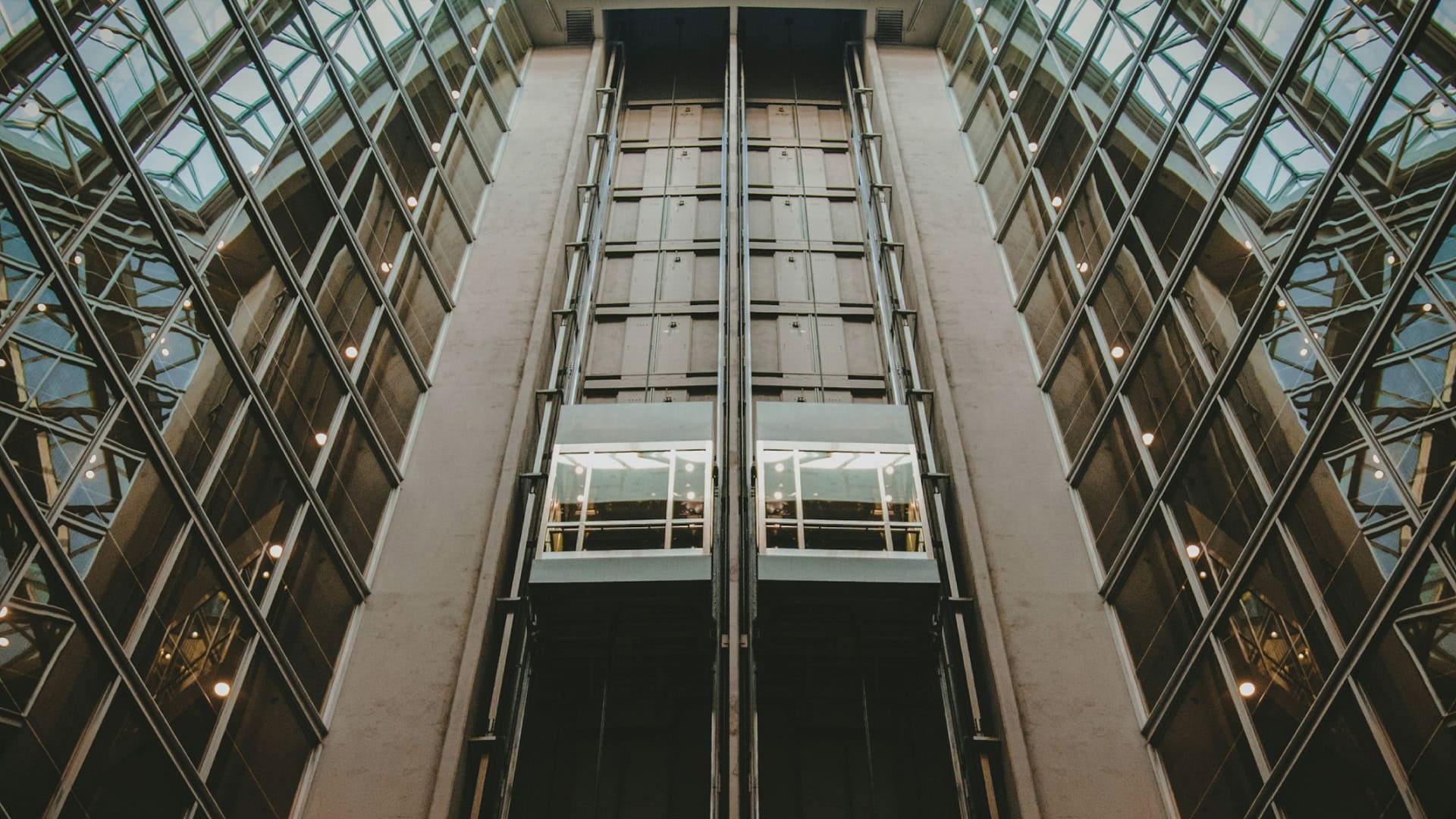

Elevator IoT Enablement
The EV8100 enables secure, cellular-based IoT connectivity for elevator monitoring. Supporting remote diagnostics, alarms, and data telemetry alongside voice, in one compact gateway.

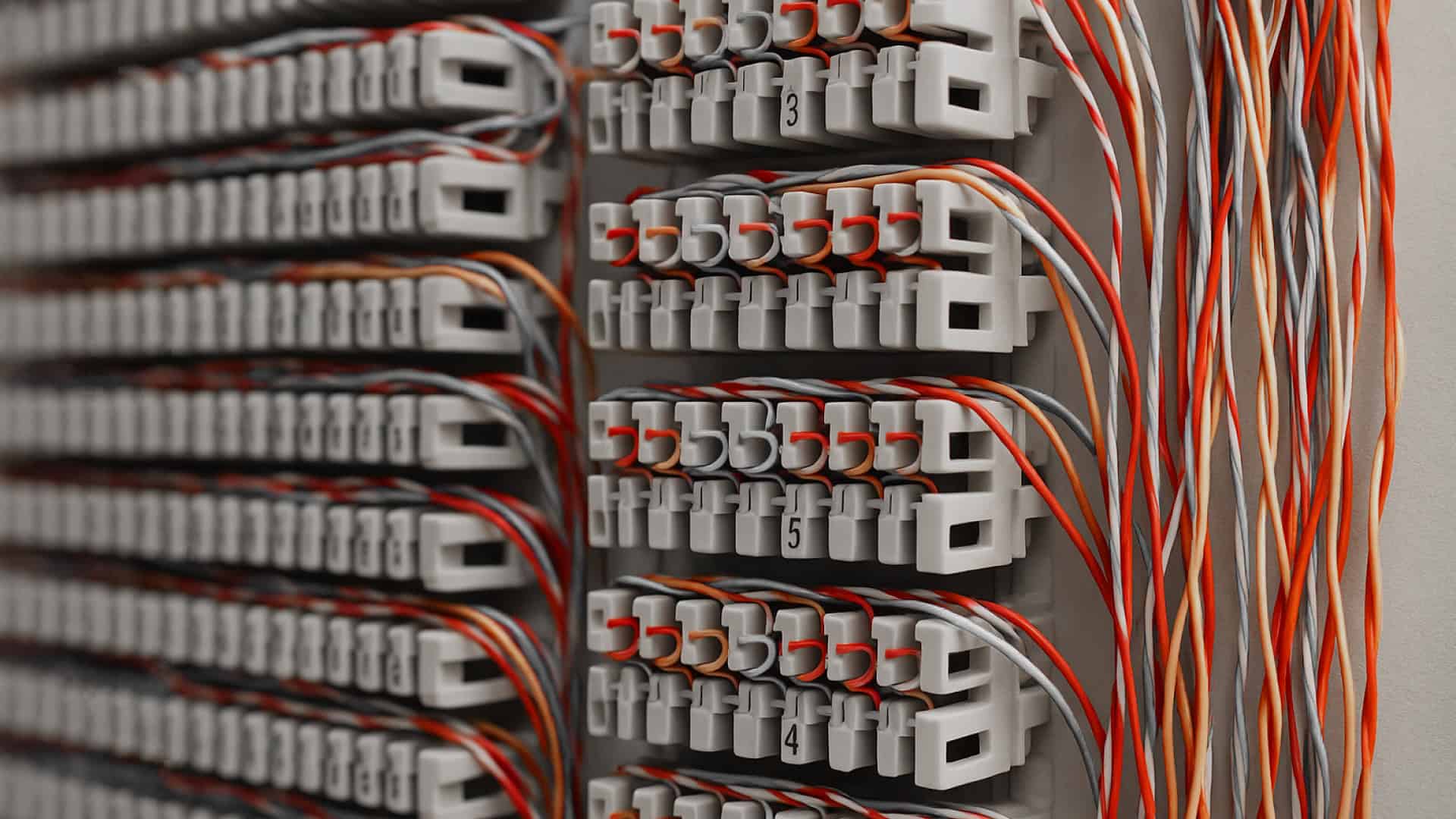

PSTN/POTS Replacement
The EV8100 replaces legacy PSTN/POTS lines with 4G VoIP in critical infrastructure—ideal for intercoms, alarms, kiosks, and remote voice systems across utilities, transport, and buildings.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

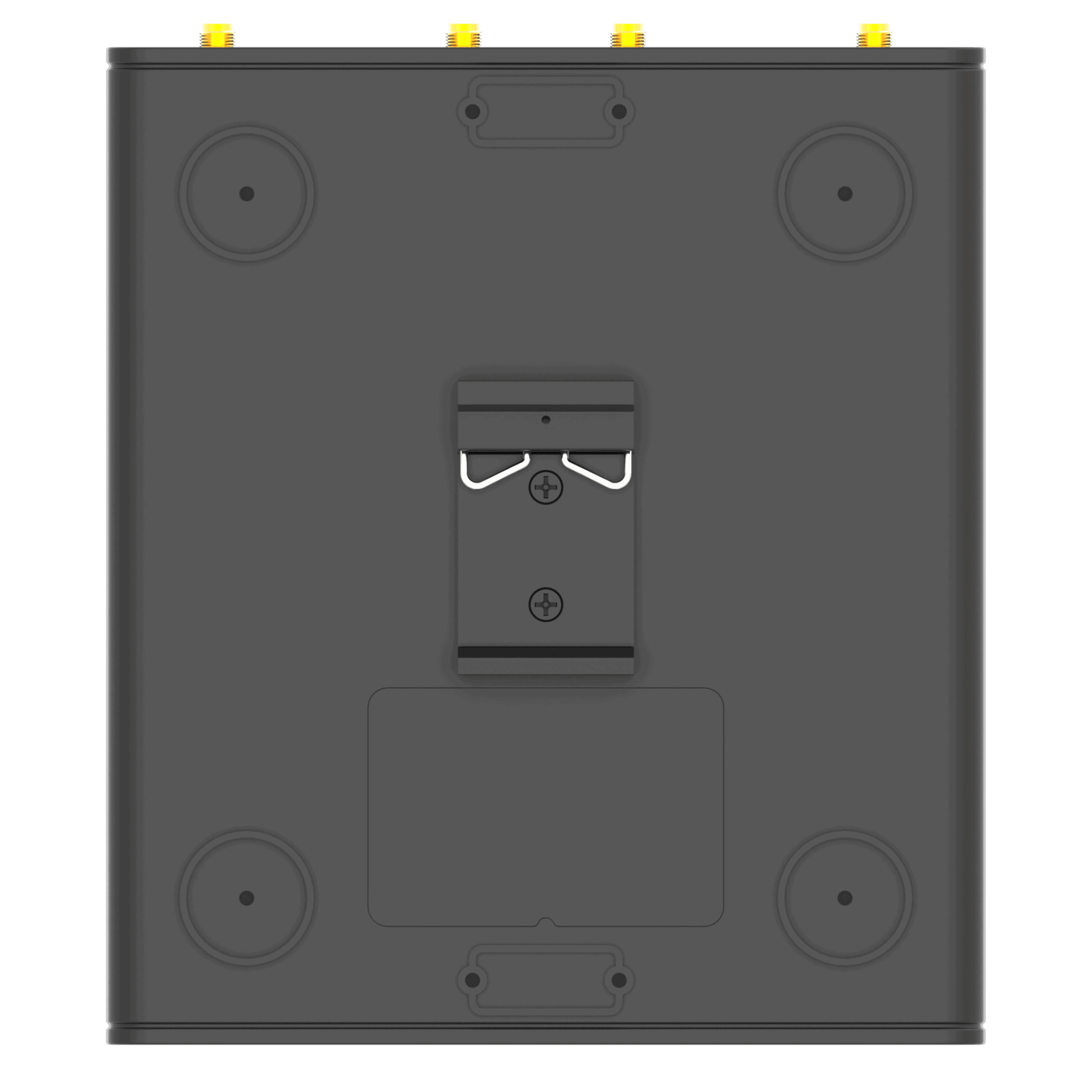

DIN Rail Mount
Wall Mount
System Architecture
|
Operating System |
RobustOS Pro |
|
CPU |
ARM Cortex-A7, 792 GHz |
|
RAM |
512MB |
|
Flash |
8 GB eMMC |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
|
Magnet Isolation Protection |
1 KV |
FXS
|
FXS Ports |
1 |
|
Connector |
2-pin 5.08 mm terminal block |
|
Signal Definition |
TIP, RING |
|
Loop Voltage |
-48 V DC |
|
Loop current |
20 mA max |
|
Loop resistance |
800 Ohm max |
VoIP
|
Protocols |
SIP (RFC3261) over UDP, SIPs, SRTP |
|
DTMF |
In-band, RFC2976, RFC 2833 |
Serial Port
|
Serial Ports |
1 x RS-232 + 1 x RS-485 + 1 x CAN |
|
Connector |
3.5 mm terminal block |
|
ESD Protection |
±8 KV air discharge, ±4 KV contact discharge |
|
Baud Rate |
300 bps to 115200 bps for RS-232/RS-485, up to 1 Mbps for CAN |
|
Signal Definition |
RS-232: TXD, RXD, GND |
Digital Input/Relay
|
DI/Relay Ports |
4 x DI (wet contact) + 1 x Relay (dry contact) |
|
Connector |
3.5 mm terminal block |
|
Absolute Maximum VDC |
+30 V DC (DI), +40 V DC (Relay) |
|
Absolute Maximum ADC |
100 mA (DI), 300 mA (Relay) |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2-, DI3+, DI3-, DI4+, DI4-; NC, NO, COM |
Wi-Fi (Optional)
|
Wi-Fi Antennas |
2 (Wi-Fi 0 + Wi-Fi 1) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
Bluetooth (Optional)
|
Bluetooth Antennas |
1 (Multiplexing Wi-Fi antenna) |
|
Connector |
RP-SMA-K |
|
Standards |
Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x BATTERY, 1 x RUN, 1 x MDM, 1 x RSSI, 1 x LINE, 1 x CLOUD, 1 x DEVICE |
|
Watchdog |
External |
|
Switch |
1 x Battery Switch |
|
USB |
1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5mm female socket with lock |
|
Input Voltage |
12/24 V DC, 9 ~ 30 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 4 W@12 V |
|
Recommended Power Supply |
12 V DC/2 A power adapter |

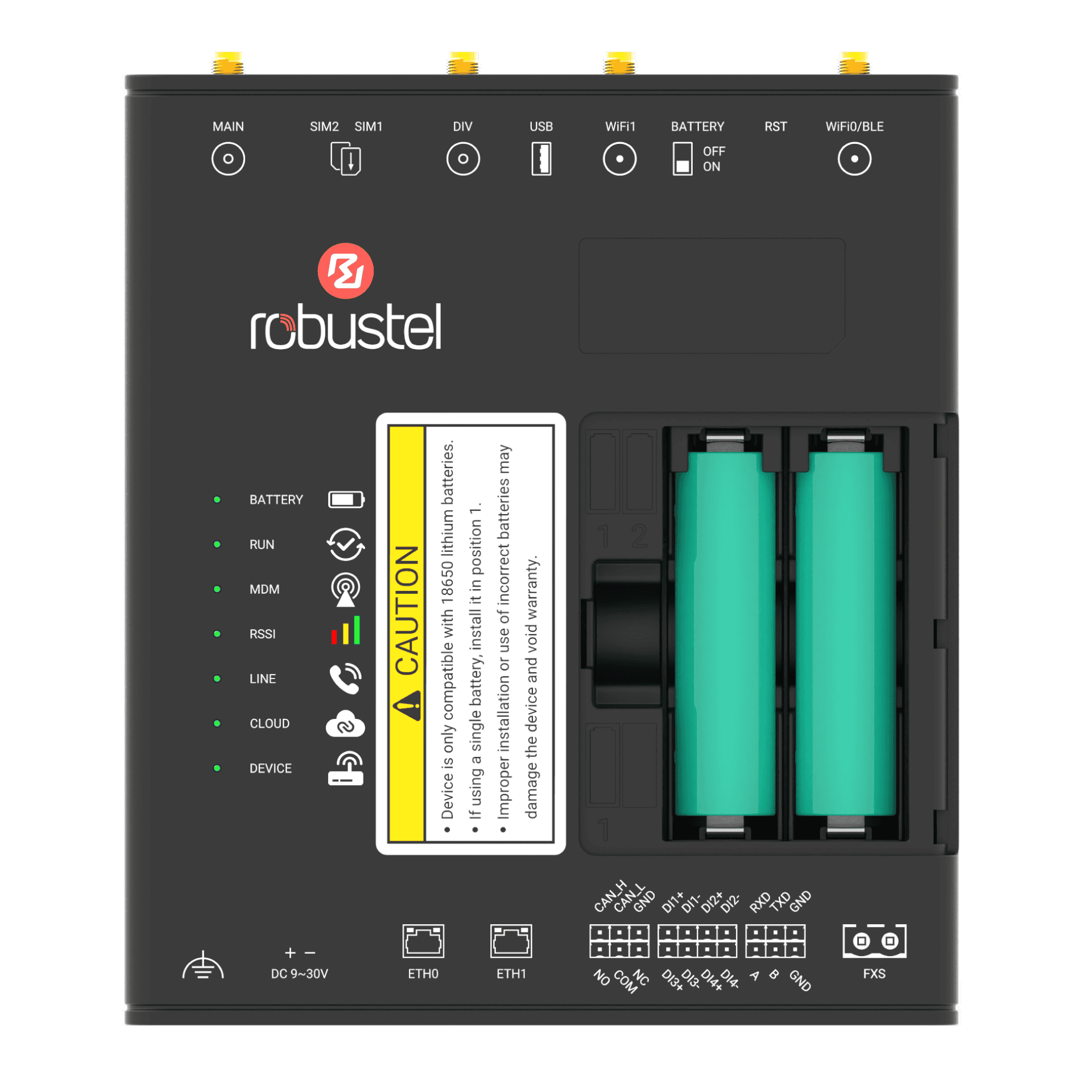

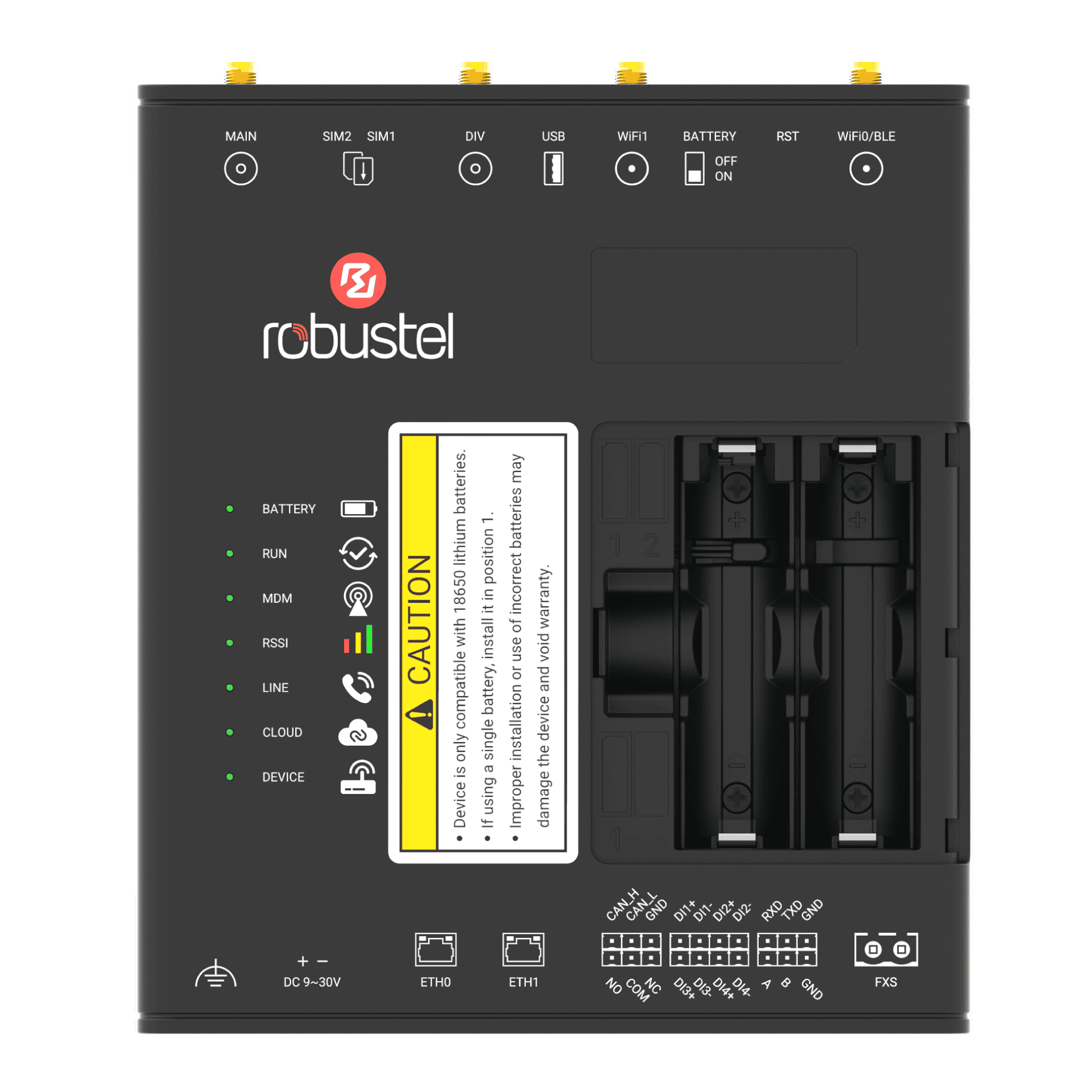

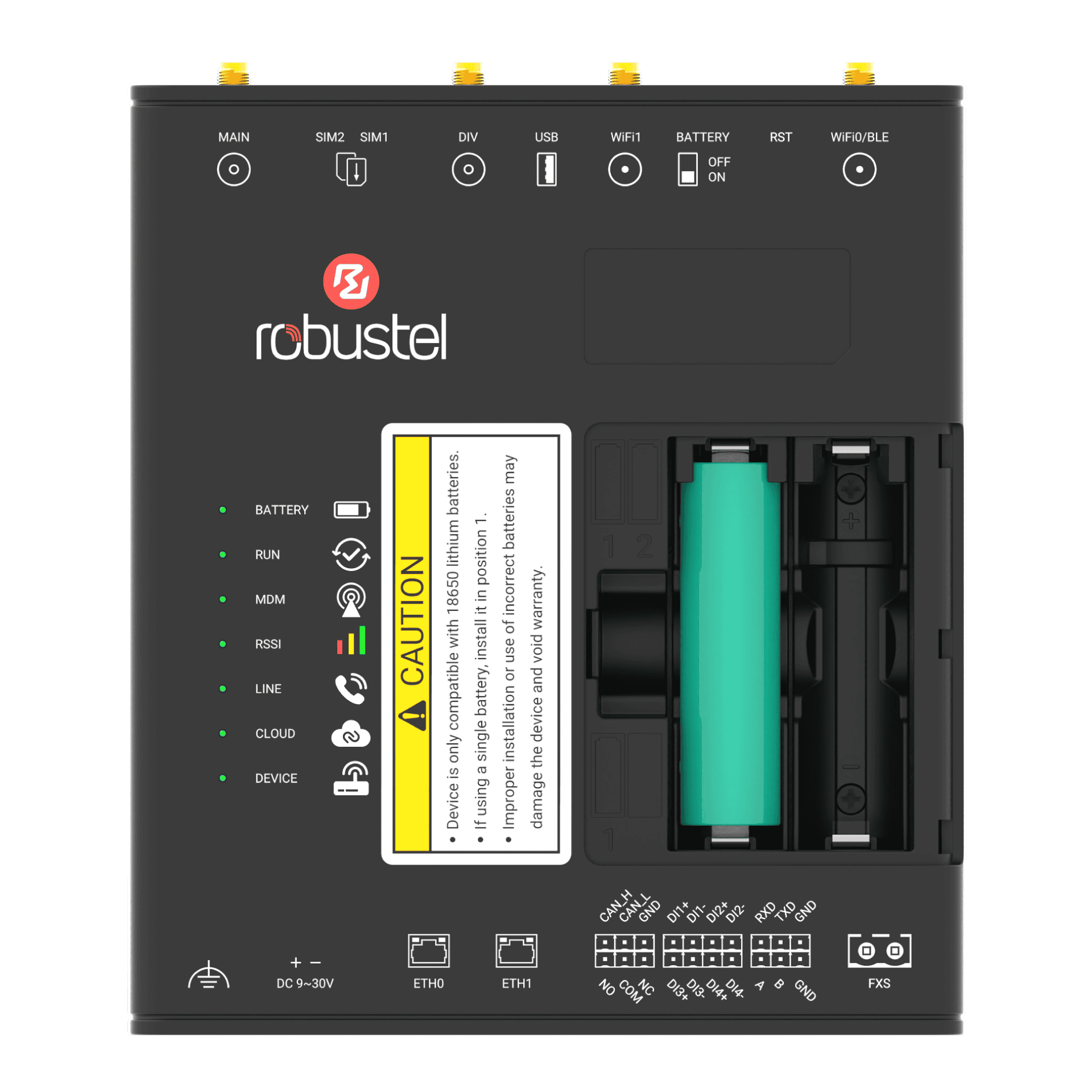

Battery
1. Battery holder for 2 x 18650 lithium batteries (not included by default).
2. Device is only compatible with 18650 (flat top) type of lithium batteries.
3. lf using a single battery, install it in position 1.
4. Improper installation or use of incorrect batteries may damage the device and void warranty
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Plastic, 470 g |
|
Dimensions |
35x150x170 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-20 – +60°C (without battery) |
|
Storage Temperature |
-40 – +85°C (without battery) |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
6GB |
|
RAM available for SDK |
256MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 2 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
EV8100-A-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T |
A012600010 |
1 x EV8100 Gateway (B Code: B126001) |
|
EV8100-A-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T |
A012600002 |
1 x EV8100 Gateway (B Code: B126001) |
|
EV8100-B-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T, NTC* |
A012600011 |
1 x EV8100 Gateway (B Code: B126002) |
|
EV8100-B-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T, NTC* |
A012600003 |
1 x EV8100 Gateway (B Code: B126002) |
|
EV8100-A-4L-A34AU |
4G LTE FDD: B1/2/3/4/5/7/8/28 4G LTE TDD: B40 3G: B1/2/4/5/8 2G: B2/3/5/8 |
RCM |
A012600012 |
1 x EV8100 Gateway (B Code: B126003) |
|
EV8100-A-4L-A34AU |
4G LTE FDD: B1/2/3/4/5/7/8/28 4G LTE TDD: B40 3G: B1/2/4/5/8 2G: B2/3/5/8 |
RCM |
A012600004 |
1 x EV8100 Gateway (B Code: B126003) |
|
EV8100-B-4L-A34AU |
4G LTE FDD: B1/2/3/4/5/7/8/28 4G LTE TDD: B40 3G: B1/2/4/5/8 2G: B2/3/5/8 |
RCM |
A012600013 |
1 x EV8100 Gateway (B Code: B126004) |
|
EV8100-B-4L-A34AU |
4G LTE FDD: B1/2/3/4/5/7/8/28 4G LTE TDD: B40 3G: B1/2/4/5/8 2G: B2/3/5/8 |
RCM |
A012600005 |
1 x EV8100 Gateway (B Code: B126004) |
|
EV8100-A-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 4G LTE TDD: B41 3G: B1/6/8/19 |
TELEC, JATE |
A012600014 |
1 x EV8100 Gateway (B Code: B126005) |
|
EEV8100-A-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 4G LTE TDD: B41 3G: B1/6/8/19 |
TELEC, JATE |
A012600006 |
1 x EV8100 Gateway (B Code: B126005) |
|
EV8100-B-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 4G LTE TDD: B41 3G: B1/6/8/19 |
TELEC, JATE |
A012600015 |
1 x EV8100 Gateway (B Code: B126006) |
|
EV8100-B-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 4G LTE TDD: B41 3G: B1/6/8/19 |
TELEC, JATE |
A012600007 |
1 x EV8100 Gateway (B Code: B126006) |
|
EV8100-A-4L-A12EU |
4G LTE FDD: B1/3/7/8/20/28A 4G LTE TDD: B38/40/41 3G: B1/8 2G: B3/8 |
CE, UKCA |
A012600016 |
1 x EV8100 Gateway (B Code: B126013) |
|
EV8100-B-4L-A12EU |
4G LTE FDD: B1/3/7/8/20/28A 4G LTE TDD: B38/40/41 3G: B1/8 2G: B3/8 |
CE, UKCA |
A012600017 |
1 x EV8100 Gateway (B Code: B126014) 1 x Wall Mounting Kit |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
