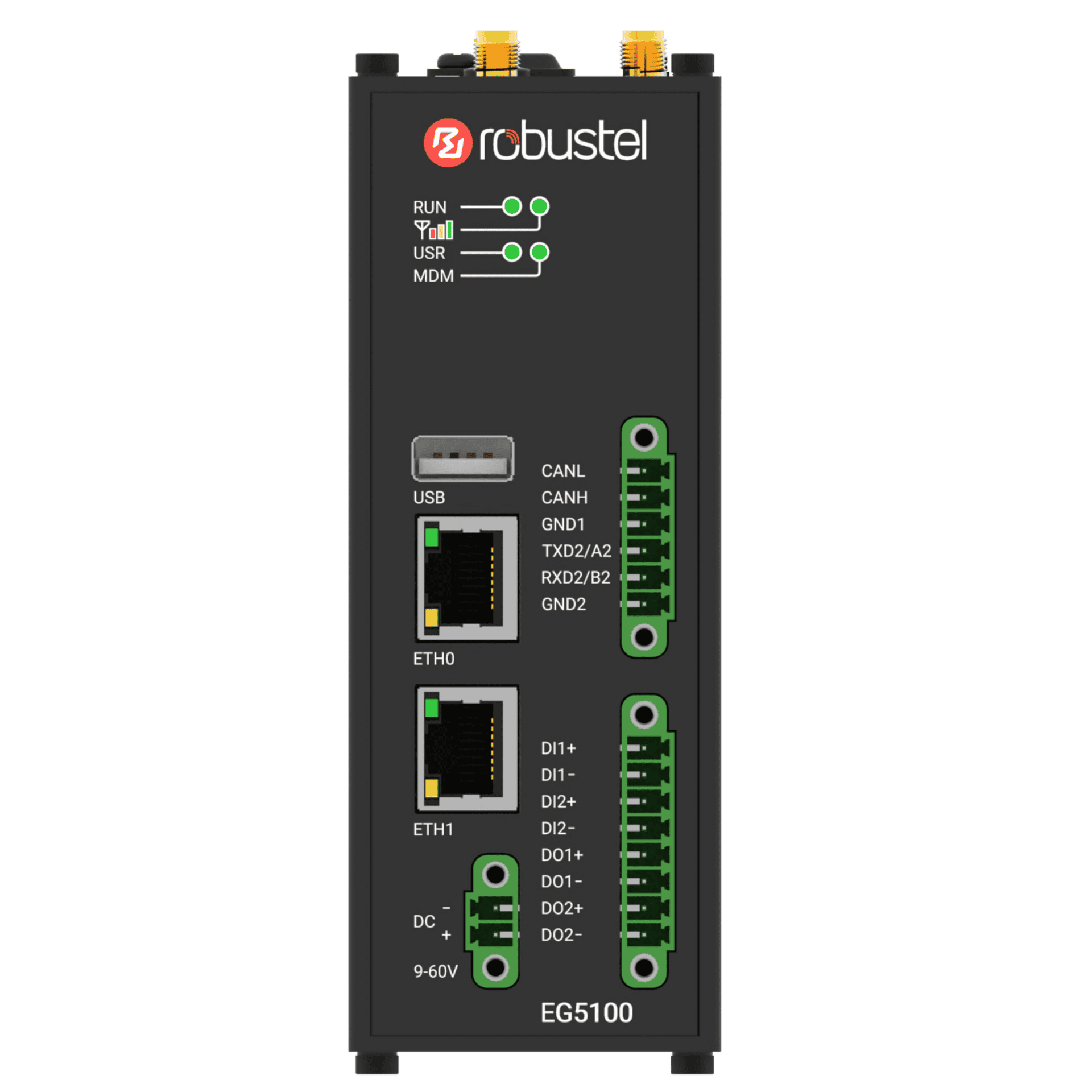

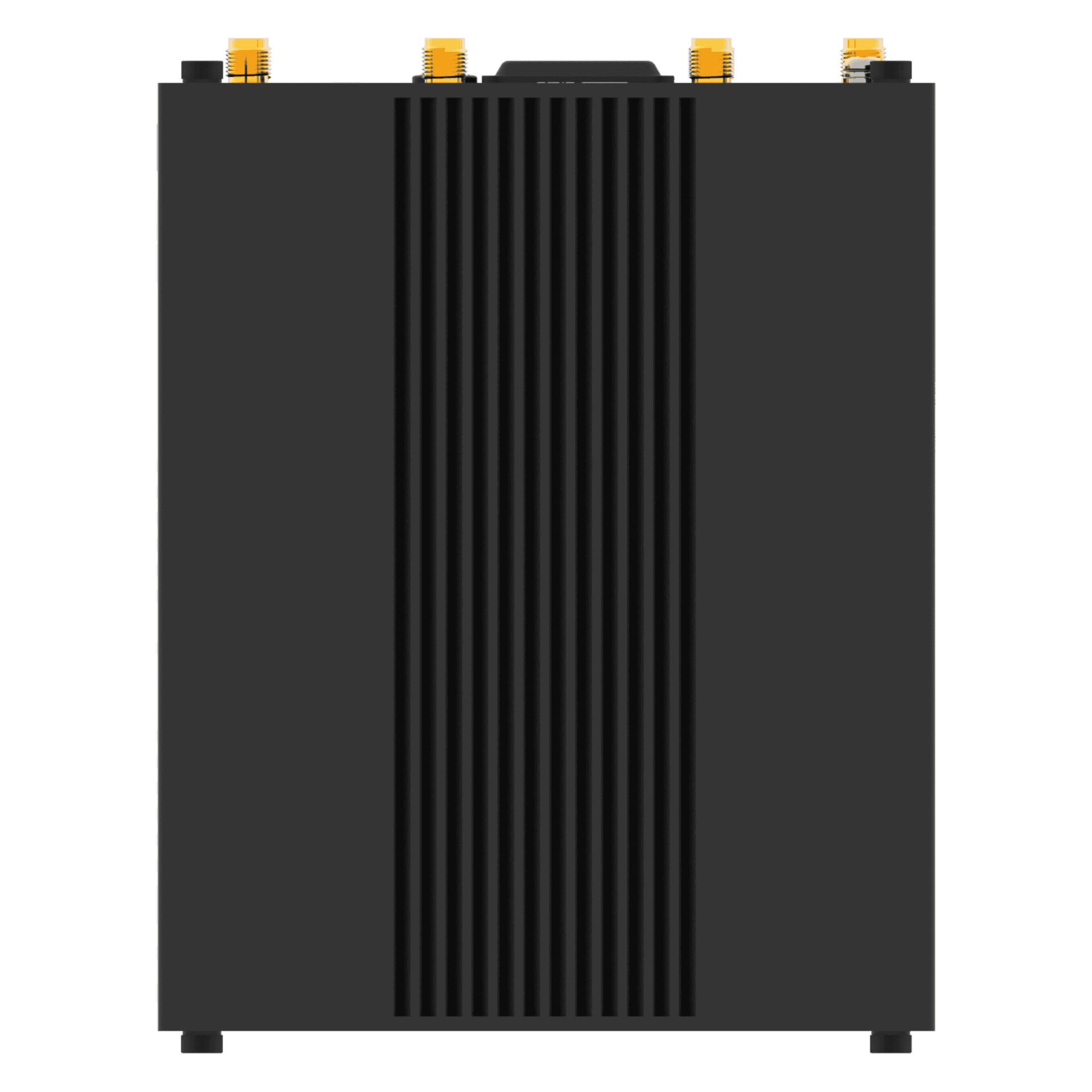

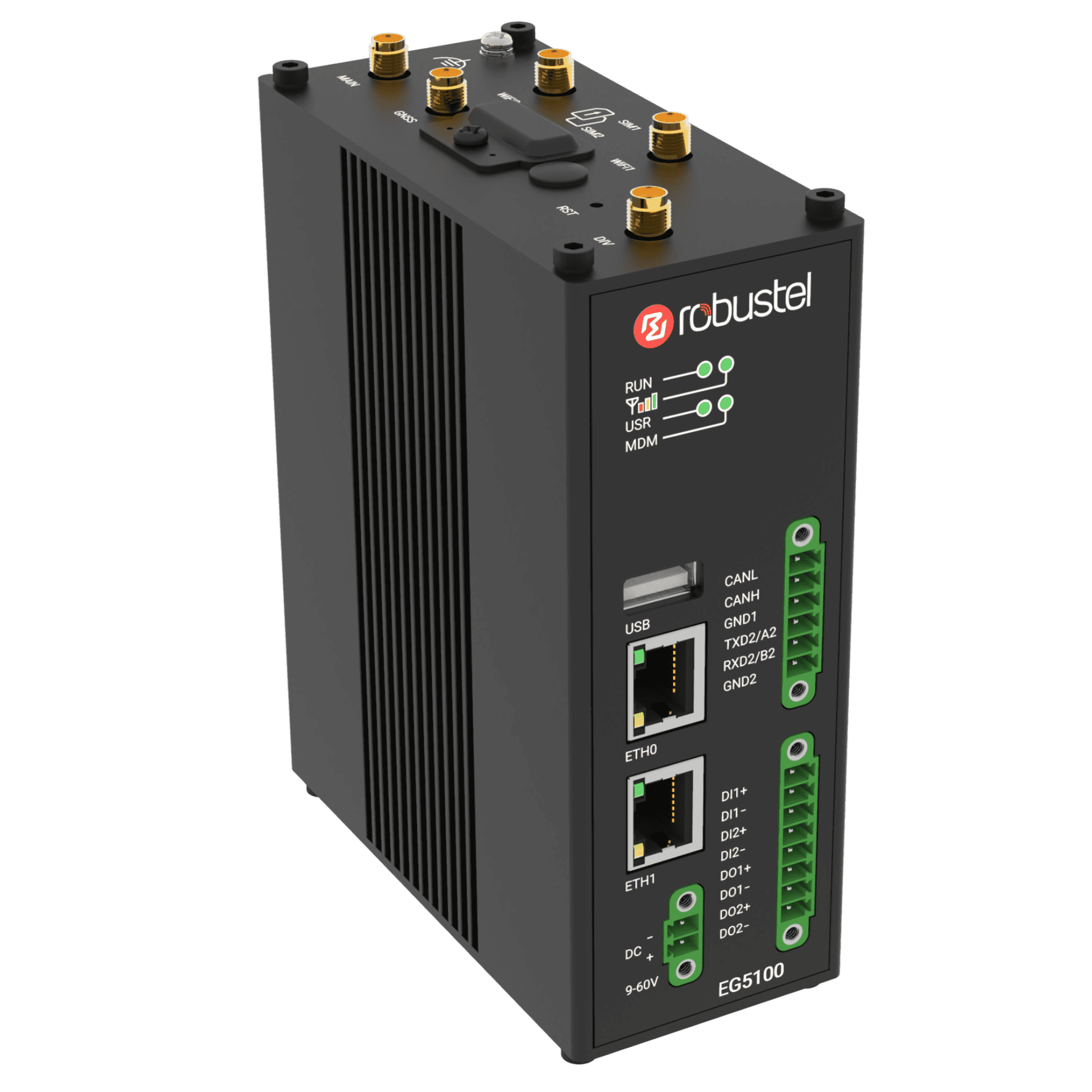

Robustel EG5100
Industrial edge computing gateway with Dual-SIM 4G LTE, Serial, DI/DO, Bluetooth and a Debian-based OS
The Robustel EG5100 is an industrial edge computing gateway that unifies cellular backhaul and on-box processing in a compact, cabinet-ready platform. Built on RobustOS Pro (Debian 11), it supports Docker containers and thousands of Debian-compatible packages, so you can run your own edge applications alongside secure routing.
A 792 MHz Cortex-A7 CPU with 8 GB eMMC provides dependable compute and storage for protocol bridging, buffering, and local preprocessing. Connectivity is flexible: dual-SIM 4G (with 3G/2G fallback) and Ethernet WAN with link backup keep data moving; VPN options (IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN) and firewall features protect traffic.
Integration is straightforward via software-configurable RS-232/RS-485 (or CAN), 2×DI/2×DO, plus optional 802.11ac Wi-Fi and Bluetooth 5.2. Fleet operations scale through RCMS for monitoring, configuration, and updates.
In short: a robust, open platform for connecting equipment and running edge workloads in industrial environments with simple, centralised management.
DUAL-SIM CELLULAR
4G/LTE, 3G & 2G with Dual-SIM Card support for failover
MODULAR FUNCTION
Optional modular support for Bluetooth, GNSS & Wi-Fi
INTERFACES
1x WAN + 1x LAN or 2x LAN, RS-232, RS-485, CAN
OPERATING SYSTEM
RobustOS Pro – Full Linux Debian Operating System
RCMS ON-BOARD
RCMS Cloud device management enabled
Edge Gateway Series ‘Quick Pitch’ Video
Example EG5100 Use Cases
Retrofit & Protocol Bridge
Aggregate RS-485 devices, run containerized protocol connectors, normalize data, buffer locally, and push securely over LTE/Ethernet to your SCADA/Cloud.
Battery Storage & EV Charging
Read BMS/charger status via optional CAN, combine serial sensors with meter/inverter data, apply edge rules, and backhaul securely to your EMS.
Heavy Industrial Machinery
Interface with vehicle ECUs over CAN, add Ethernet/RS-485 sensors, process data at the edge, and backhaul securely to maintenance systems
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

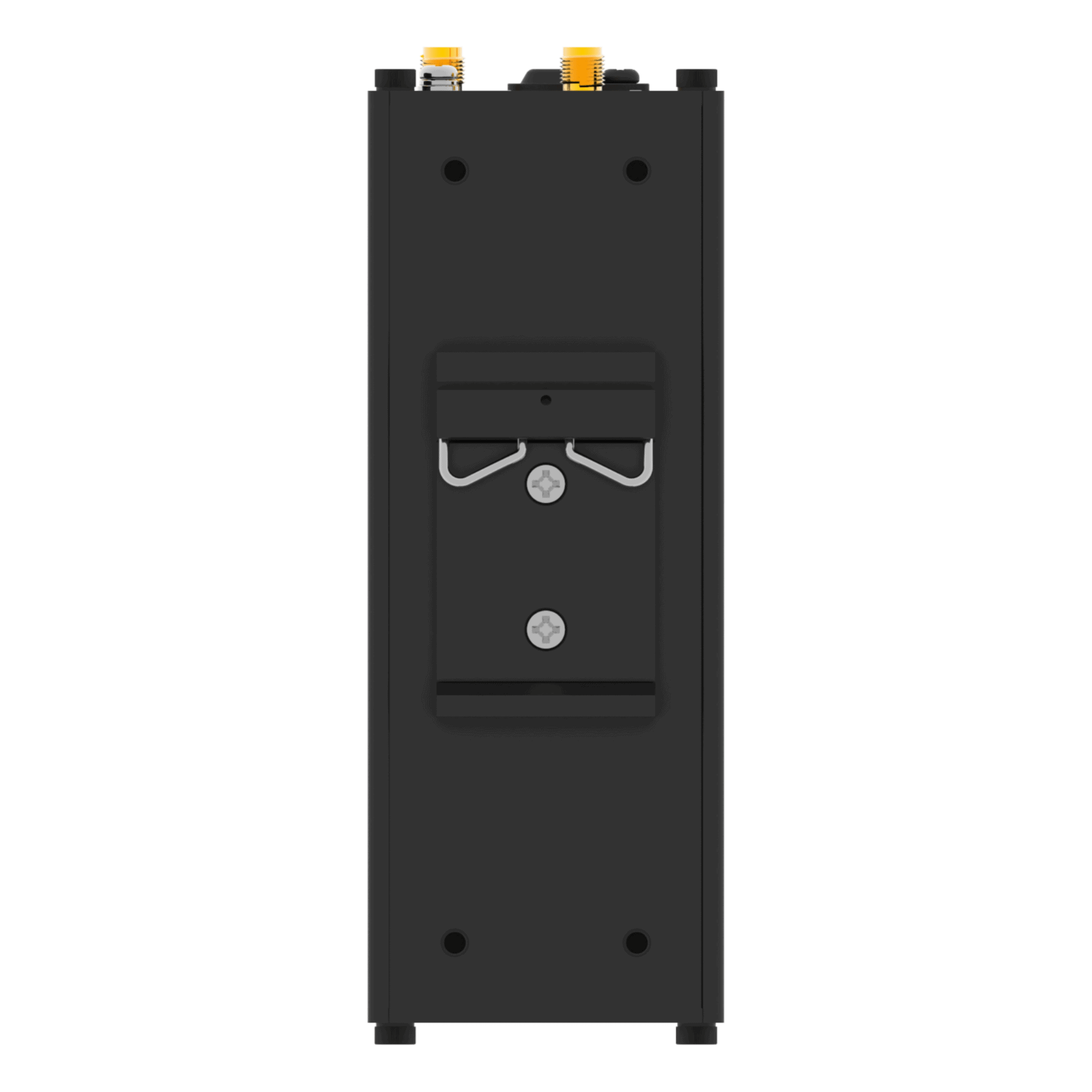

DIN Rail Mount

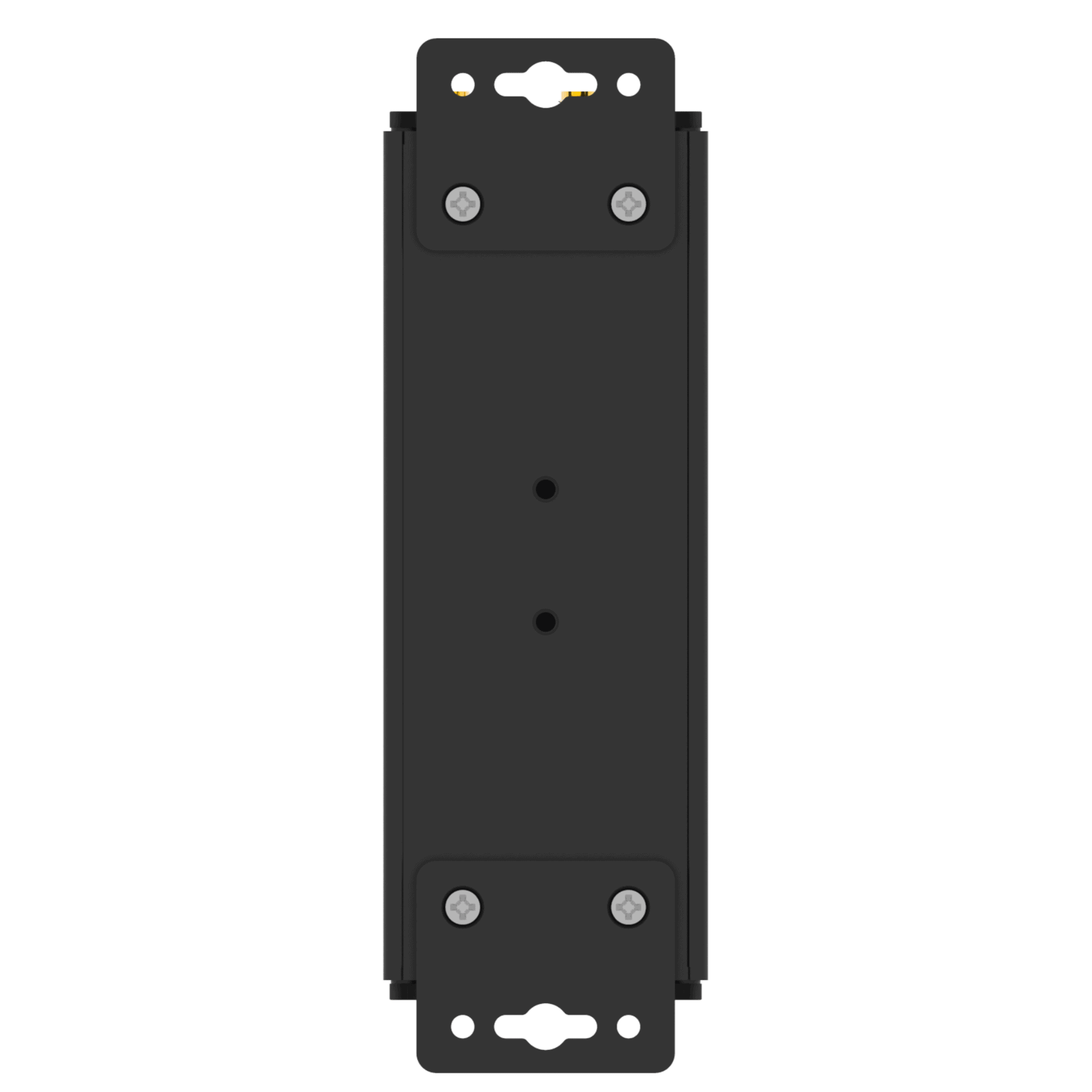

Wall Mount
System Architecture
|
Operating System |
RobustOS Pro |
|
CPU |
ARM Cortex-A7, 792 MHz |
|
RAM |
1 GB DDR3 |
|
Flash |
8 GB eMMC |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|

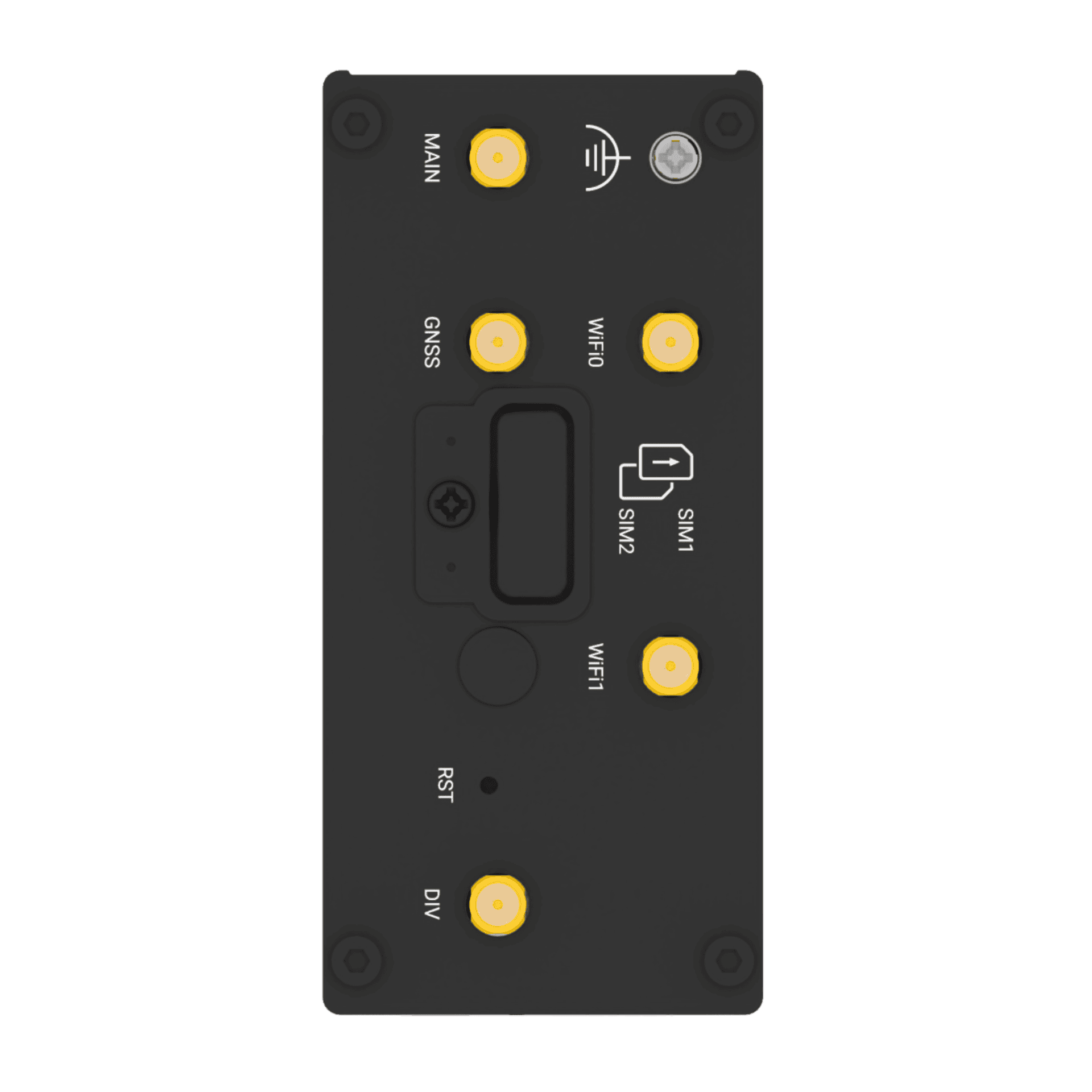

Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
2 x RS-232/RS-485 (software configurable) Or 1 x RS-232/RS-485 (software configurable) + 1 x CAN |
|
Connector |
6-pin 3.5 mm terminal block with lock |
|
ESD Protection |
15 KV air, 8 KV contact |
|
Baud Rate |
300 bps to 115200 bps for RS-232/RS-485, up to 1 Mbps for CAN |
|
Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) CAN: H, L, GND |
Digital Input/Output
|
DI/DO Ports |
2 x DI + 2 x DO, wet contact |
|
Connector |
8-pin 3.5 mm terminal block with lock (DI/DO) |
|
Absolute Maximum VDC |
+30 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi (Optional)
|
Wi-Fi Antennas |
2 (Wi-Fi 0 + Wi-Fi 1) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
Bluetooth (Optional)
|
Bluetooth Antennas |
1 (Multiplexing Wi-Fi antenna) |
|
Connector |
RP-SMA-K |
|
Standards |
Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
GNSS/GPS (Optional)
|
GNSS Antennas |
1 |
|
Connector |
SMA-K |
|
Technology |
GPS |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x Signal, 1 x USR, 1 x MDM |
|
Watchdog |
External |
|
USB |
1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 3 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 567 g |
|
Dimensions |
49 x 105 x 128 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-40 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
6GB |
|
RAM available for SDK |
768MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 4 EN 61000-4-11 (Dips) |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
EG5100-A2ACA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC |
A006600709 |
1 x EG5100 Gateway (B Code: B066706) |
|
EG5100-A2ACA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC |
A006600710 |
1 x EG5100 Gateway (B Code: B066706) |
|
EG5100-A2CCA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC |
A006600711 |
1 x EG5100 Gateway (B Code: B066708) |
|
EG5100-A2CCA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA, FCC, IC, NTC |
A006600712 |
1 x EG5100 Gateway (B Code: B066708) |
|
EG5100-A2ADA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA |
A006600713 |
1 x EG5100 Gateway (B Code: B066716) |
|
EG5100-A2ADA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA |
A006600714 |
1 x EG5100 Gateway (B Code: B066716) |
|
EG5100-A2CDA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA |
A006600715 |
1 x EG5100 Gateway (B Code: B066717) |
|
EG5100-A2CDA-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, RCM, CB, UKCA |
A006600716 |
1 x EG5100 Gateway (B Code: B066717) |
|
EG5100-A2ACA-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A006600717 |
1 x EG5100 Gateway (B Code: B066714) |
|
EG5100-A2ACA-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A006600718 |
1 x EG5100 Gateway (B Code: B066714) |
|
EG5100-A2CCA-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A006600719 |
1 x EG5100 Gateway (B Code: B066715) |
|
EG5100-A2CCA-4L-A04JP |
4G LTE FDD: B1/3/8/18/19/26 3G: B1/6/8/19 |
TELEC, JATE |
A006600720 |
1 x EG5100 Gateway (B Code: B066715) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
