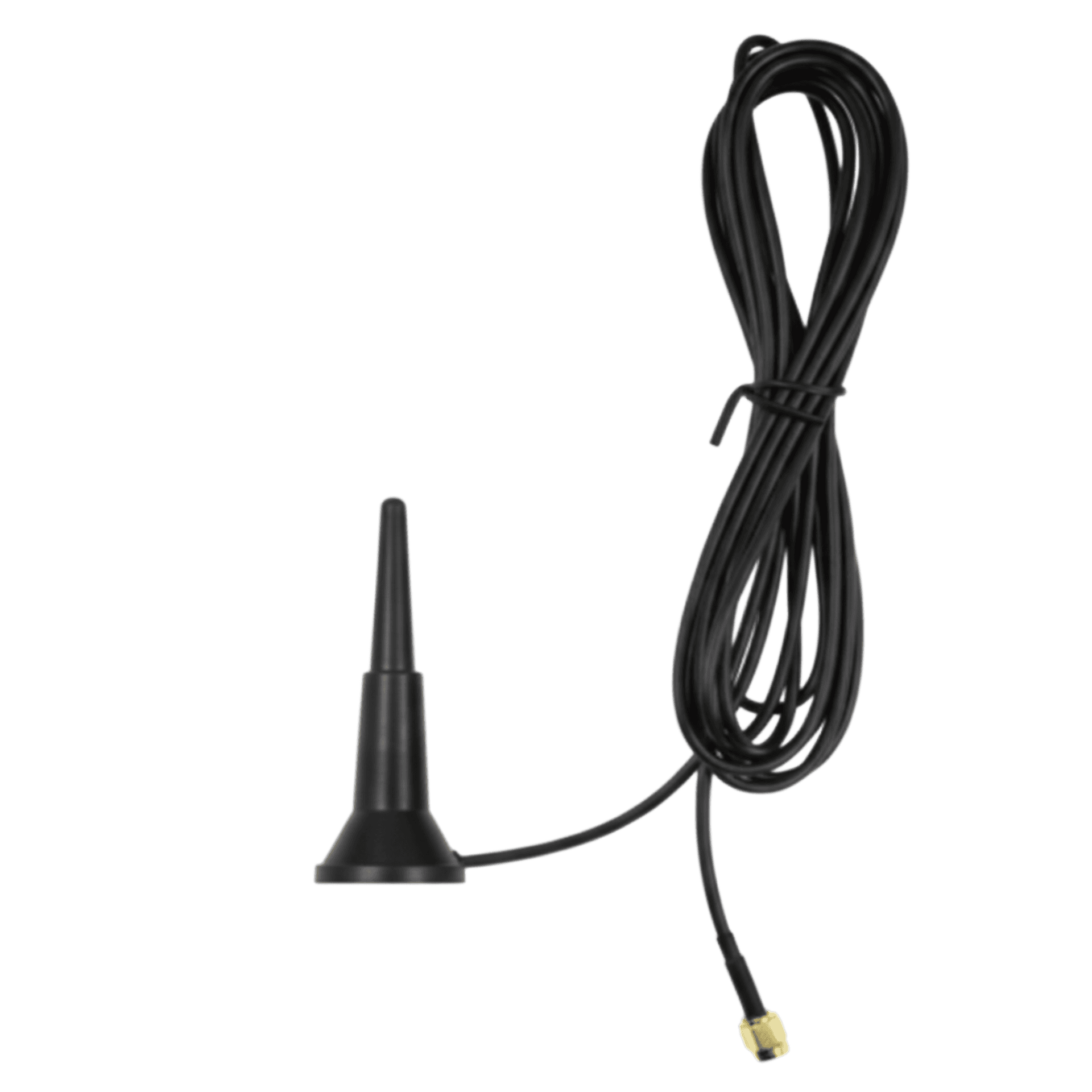

3m 4G/LTE Cellular Magnetic Antenna
Part Number (PN): E000330204
The 3m 4G/LTE Cellular Magnetic Antenna (PN: E000330204) is an SMA male antenna covering 700–2700 MHz cellular bands, with typical gain of 2.5 dBi and a 3 m cable for flexible placement. It is suitable for use with Robustel 4G/LTE routers and gateways where a magnetically mounted external antenna is required for improved mobile network connectivity.
Parameter and Rated Value
|
Frequency Range |
700–2700 MHz |
|
VSWR |
≤ 2.0 |
|
Gain |
< 2.5 dBi |
|
Impedance |
50 Ω |
|
Polarization |
Linear |
|
Connector Type |
SMA Male (Center Pin) |
|
Cable Type |
FLMR 100, Black |
|
Cable Length |
3000 ± 50 mm |
|
Dimensions (D × L) |
Φ30.0 mm (±1.0 mm) × 88.0 mm (±1.0 mm) |
|
Radome Material |
ABS |
|
Mounting Type |
Magnet |
|
Operating Temperature |
-40 °C to +85 °C |
|
Storage Temperature |
-40 °C to +85 °C |
|
RoHS Compliance |
Yes |
|
Compatible Products |
3G/4G devices including modems, routers, and gateways |
