LoRaWAN Network Servers Made Simple

Comparison

When deciding between an integrated LNS or a cloud-hosted LNS (available from service providers such as TTN or Loriot), it is important to consider the relative strengths and weaknesses of each solution. Generally, if the application only requires a small number of sensors in a localised envi- ronment then an Integrated LNS can be a good solution. However, the management and scalability of such a solution will always be more limited than a network (or a network of networks) orches- trated from the cloud.

A more detailed explanation of the Features highlighted in the table above follow:

4G Data – Cost & Risk

All too often, the detailed considerations of using a cellular network for backhaul instead of a “wired” or “broadband” connection are not fully thought through before deployment, nor clearly explained by solution providers.

Cellular wireless backhaul to the internet offers unrivaled deployment flexibility and is an essential tool for many networks but the fact that it is fundamentally less reliable and potentially much more expensive than a broadband internet connection is overlooked or not appreciated in many instances.

Having an integrated LNS in the Gateway is unlikely to be able to help with backhaul reliability but it can certainly reduce cost and risk. By whitelisting only allowed sensors locally and only transmitting application data (not all of the LoRa management data), the amount of cellular traffic can be significantly reduced compared with a Cloud-based implementation.

This becomes commercially very significant if roaming* (aka multi-network) SIMs are being used in the application whereby the cost per GB of data transferred can be relatively very high.

It is also important to consider that a LoRa Gateway or collection of Gateways act as a distributed antenna that will forward packets of data from sensors that are not anything to do with the primary application. There is nothing to stop one, one hundred or one thousand sensors being deployed within RF range of the Gateway(s) in subsequent months or years and more cellular data traffic will accrue as a consequence.

Some have considered this an “unbound risk” with only localised white-listing and integrated LNS a feasible option to remove the risk altogether. Good network monitoring tools and thorough proof of concept testing help to mitigate data usage risk in all cellular communication-based applications.

Server Resilience

Redundancy can be readily achieved for a cloud-hosted LNS by using standard networking/computing techniques already widely employed for other types of online service. The quality of the redundancy can be readily assessed by asking for the specifics from your LNS provider. The extent of the SLA avail- able from the provider is a good gauge for the confidence they have in their own system.

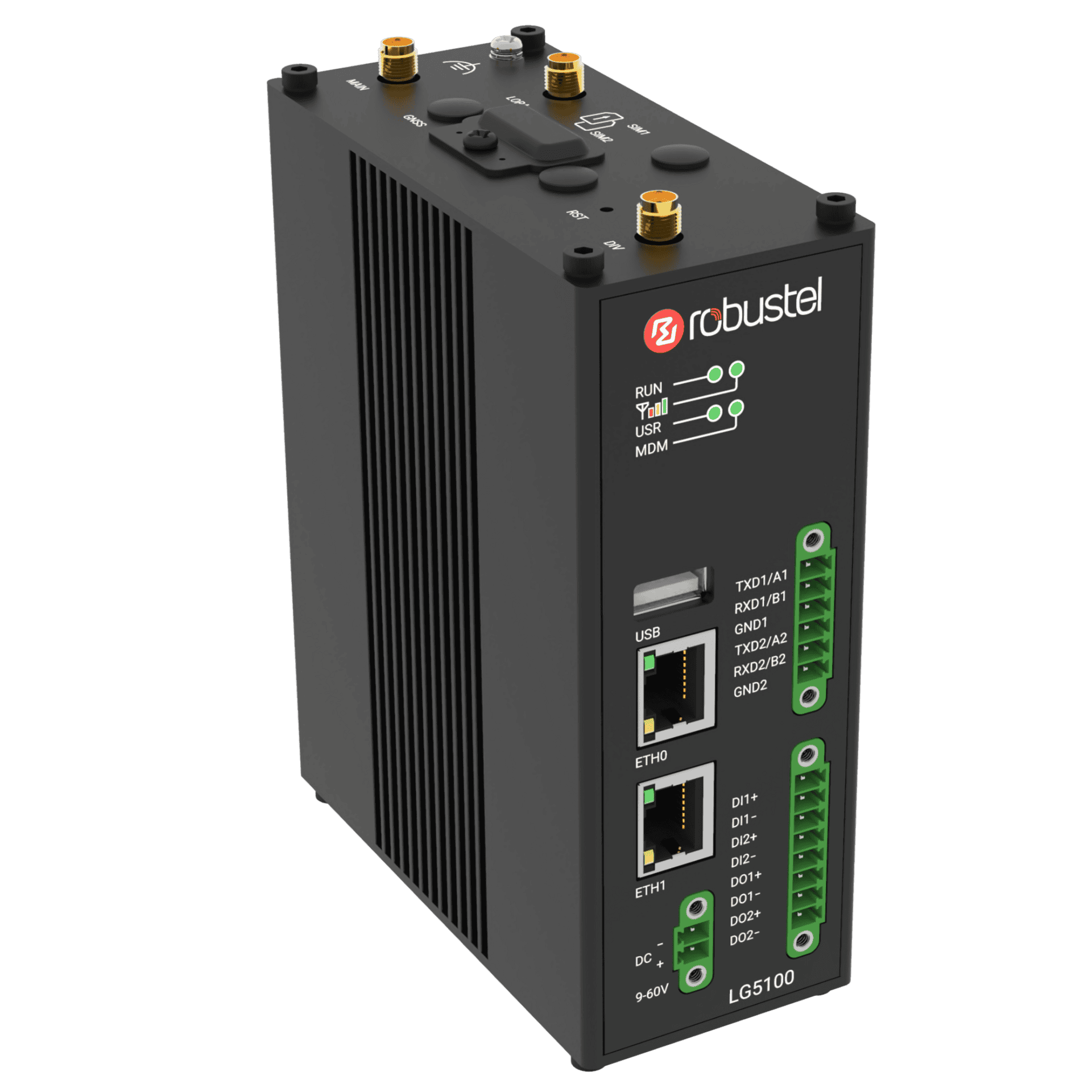

An integrated LNS will generally exist as a single instance of an LNS service on a relatively low powered compute engine in the LoRa Gateway itself. This means that the scope for “resilience” is very limited beyond making sure that the chosen hardware and software platform is as stable and reliable as possi- ble. Extensive soak-testing is one of the few tangible ways to ascertain the reliability of LoRaWAN Gate- ways with integrated LNS.

Checking the anticipated number of firmware upgrades anticipated per year or asking for evidence of the number of firmware increments in the previous year may be a signpost to the type of device you are being offered.

Centralized Network Management

When using an integrated LNS, centralised management is significantly less achievable without workarounds or additional software being written to effectively “reinvent the wheel”.

A cloud-based LNS can provide a clear network overview, comprehensive meta-data, full radio verbosity and gateway insights and alerts. This is arguably the only way to manage significant or multi-tenanted networks at scale.

Recurring Cost

Some IoT business cases rely on reducing recurring monthly costs to the minimum possible level to provide a service that customers consider ‘value for money’ or ‘affordable’. In this instance, removing any fees payable to 3rd party LNS providers can be a way to reduce cost and consequently hit the required metrics for a venture to succeed. Ultimately, it boils down to a typical ‘make or buy’ argument with associated risks and upfront costs if you choose to ‘do it yourself’.

Compute Power

Modern Cloud-computing techniques mean that the compute power of an online LNS need never be limited by the processing capacity of the server hardware itself. However, it is a very important consideration when using a LoRaWAN Gateway with an integrated LNS as such platforms must be designed to a budget and will employ low-cost processors as a consequence. Available RAM and Flash memory may also be limited. This means that the performance of the LNS service can be limited with the practical upshot being a restricted LoRa packet-processing capability.

Gateway vendors often approximate the extent of their integrated LNS capability by specifying the number of sensors that the Gateway + LNS can effectively handle. A typical figure is in the low tens of sensors and whilst this represents a significant limitation, it still means that an integrated LNS can be applicable for a wide number of different LPWAN applications in private LoRaWAN networks.

Network Roaming

By definition, Network Roaming can only be managed when the LNS exists in the cloud.

Ability to Resell Network Services

One of the underlying ‘value-propositions’ of deploying LoRa networks is the ability to allow others to use a network that you have built for your own purposes.

For example, a network that has been deployed on campus for environmental monitoring purpos- es could be made available to a 3rd party responsible for other assets on the same campus such as streetlights or dustbins. This could save the 3rd party the cost of more expensive GSM or cabled solutions and/or realise efficiencies in how they operate.

The ‘shared network’ concept can be possible with an Integrated LNS but a cloud-based LNS is much more suited to this type of implementation making long-term management and scalability easier and more cost-effective, especially as the number of Gateways increases.
