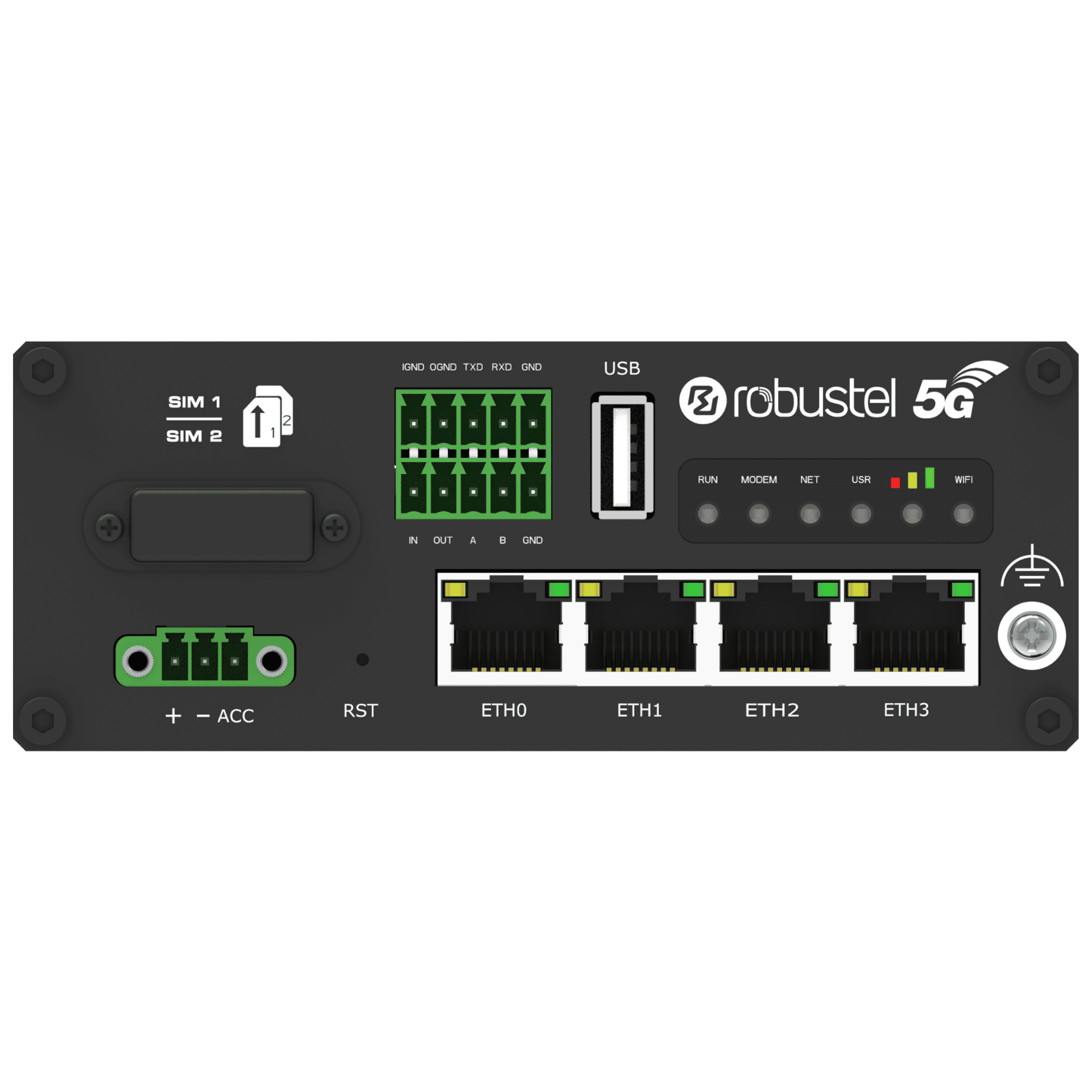

The R5020 from Robustel brings next-generation cellular connectivity at a highly competitive price.
Offering global 3G, 4G & 5G band coverage in a compact industrial form factor, the R5020 enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage.
The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G and 3G bands in a compact industrial form factor. It enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage.
The R5020 leverages the tried-and-tested high performance CPU platform and RobustOS – a mature and stable Operating System developed in-house by Robustel. R5020 is compatible with 3GPP Release 15 and is designed for use by the following applications:
In-vehicle applications: Whether it is passenger WiFi, CCTV debrief, ticketing or a similar “onboard” requirement, the R5020 offers a simple and effective solution to increase internet speeds and future-proof current installations. The R5020 has achieved E-Mark certification for in-vehicle use, and supports GNSS positioning. A version with vehicle ignition sensing is available to protect vehicle batteries when the engine is off.
Broadband Failover: The R5020 can be configured to use Ethernet or Wifi as primary internet and failover to 4G/5G in the event of an outage. This can help to provide resilience to outlets such as shops and small offices at a reasonable cost, and provide sufficient bandwidth for multiple users. IPsec, DMVPN and Open VPN protocols can be used for connections into core networks.
Primary Broadband: Cellular networks can now provide unlimited 5G tariffs at very reasonable prices, offering hundreds of Mbps internet over the air. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favourable.
Key Features:
|
Cellular Interface |
|
|

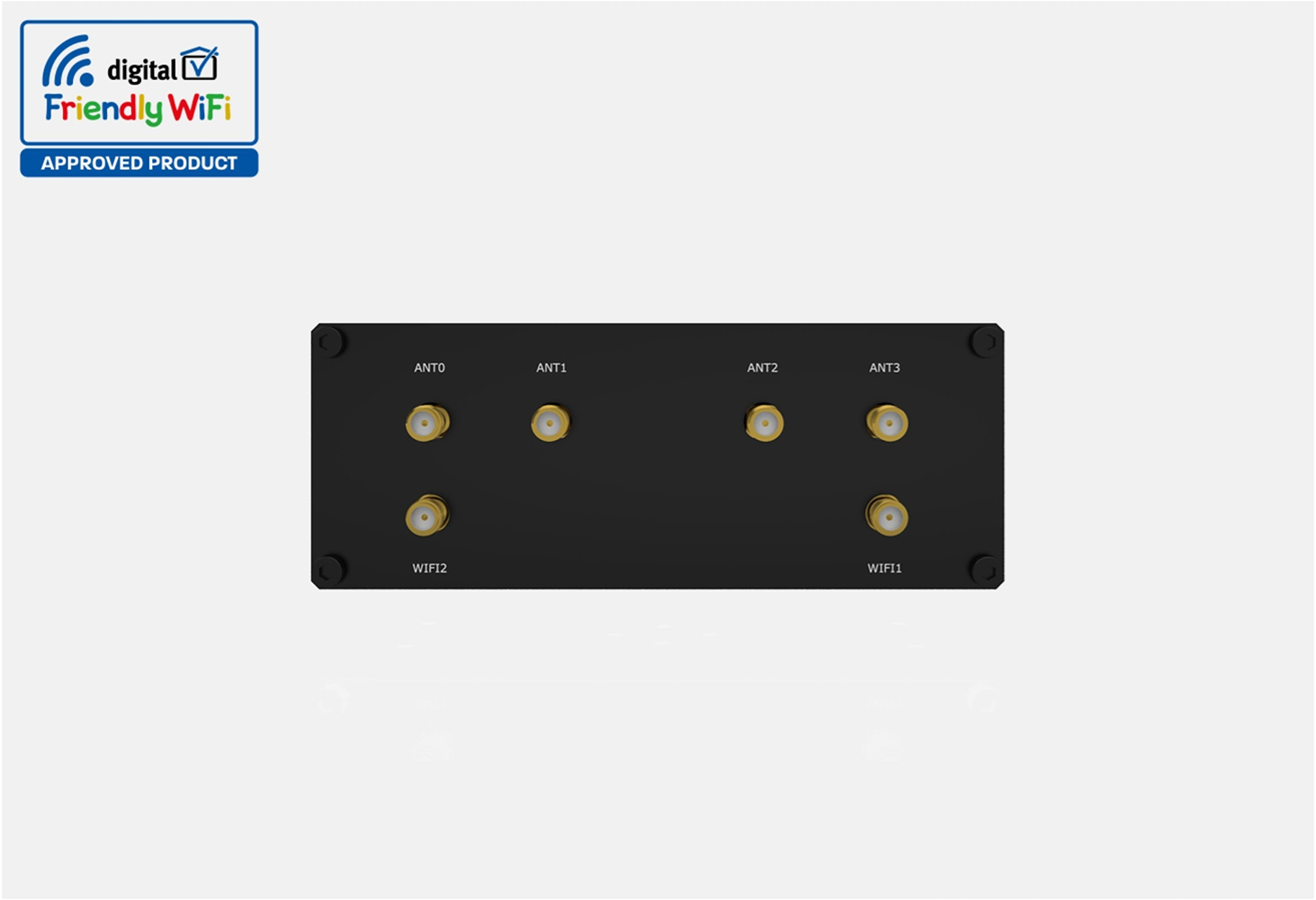

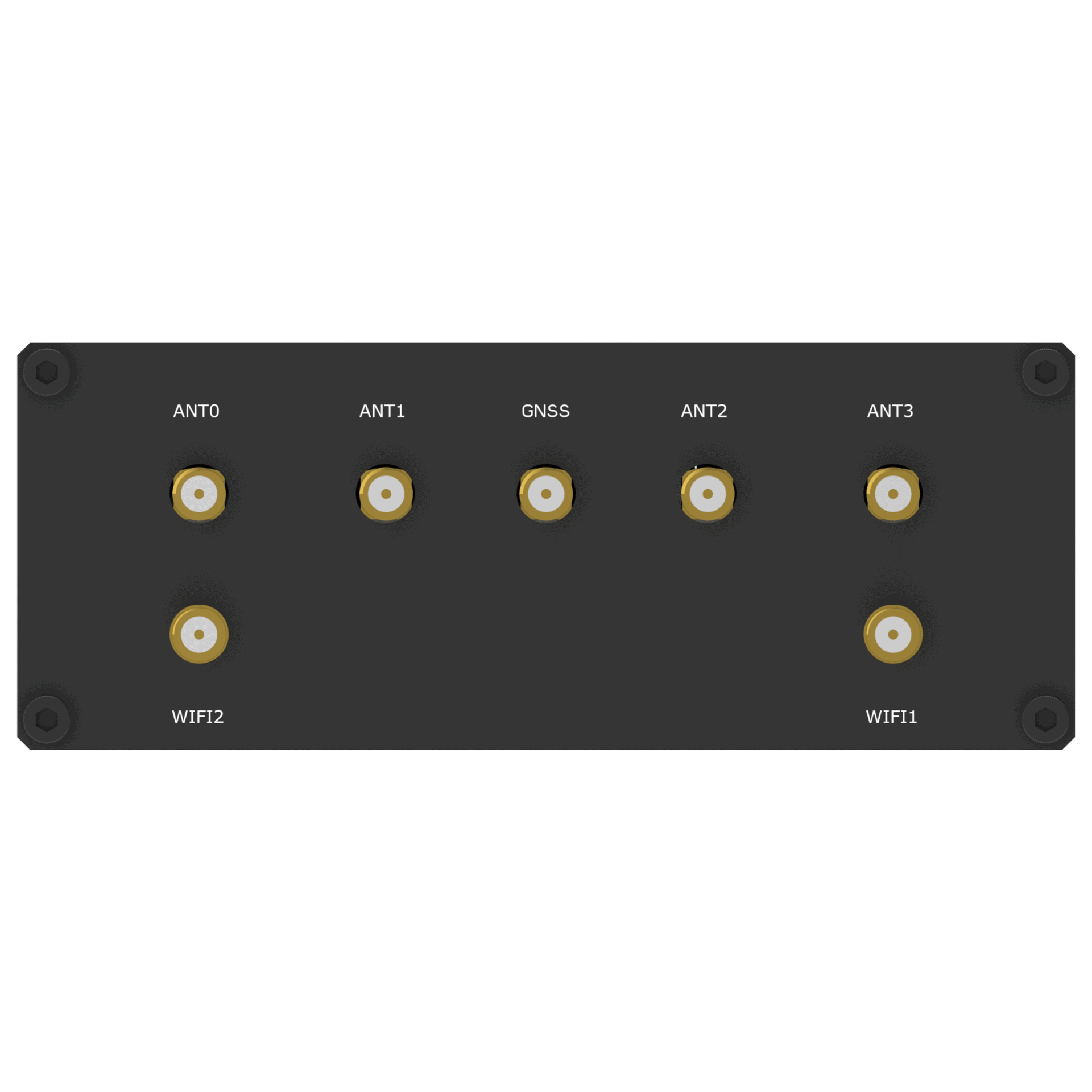

Number of antennas |
4 (ANT0 + ANT1 + ANT2 + ANT3) |
|
Connector |
SMA-K |
|
SIM |
2 Mini SIM (2FF) |
|
GNSS (Optional, required 4-in-1 Combo Antenna) |
|
|
Number of antennas |
1(ANT3, Multiplexing cellular antenna interface) |
|
Connector |
SMA-K |
|
GNSS technology |
GPS/GLONASS/BeiDou (Compass)/Galileo |
|
Horizontal position accuracy |
< 2m |
|

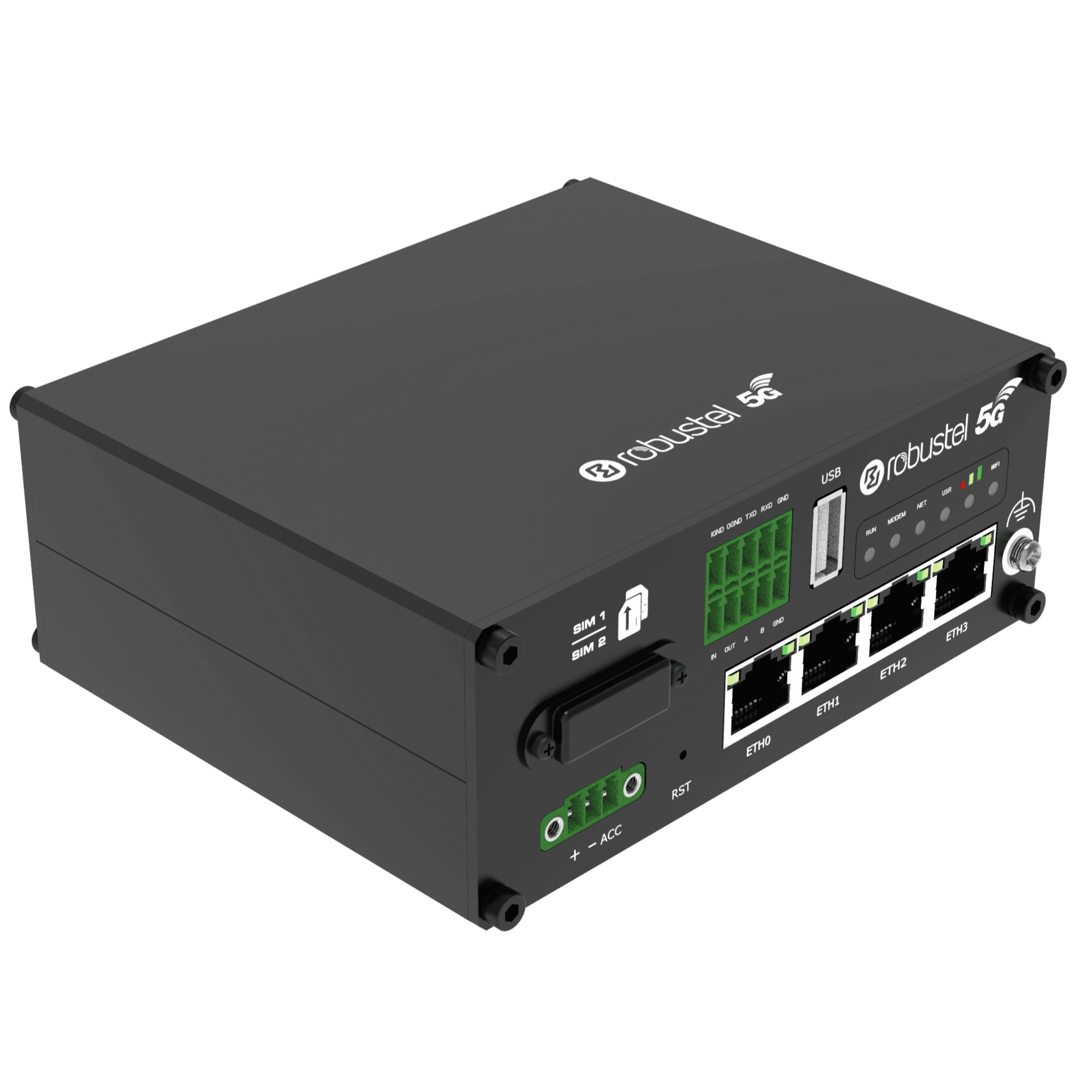

Ethernet Interface |
|
|
Number of ports |
4 x 10/100/1000 Mbps, |
|
|
4 LAN by default, can be configured as 1 WAN + 3 LAN |
|
|
Support 802.3at PD feature on ETH0 (optional) |
|
Magnet isolation protection |
1 KV |
|
Wi-Fi Interface |
|
|
Number of antennas |
2 (Wi-Fi1 + Wi-Fi2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes |
|
Frequency bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) |
|
|
5.15 – 5.825 GHz (5 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
|
Serial Interface |
|
|
Number of ports |
1 x RS232 + 1 x RS485 |
|
Connector |
2 x 5-pin 3.5 mm female socket |
|
Baud rate |
300 bps ~ 115200 bps |
|
Signal definition |
RS232: TXD, RXD, GND RS485: Data+ (A), Data- (B), Ground (GND) |
|
DI/DO |
|
|
Type |
1x DI + 1 x DO, wet contact |
|
Connector |
2 x 5-pin 3.5 mm female socket |
|
Isolation |
3.75 KVDC (opto-isolator) |
|
Absolute maximum VDC |
“V+” +30 VDC (DI), +30 VDC (DO) |
|
Absolute maximum ADC Signal definition |
100 mA (DO) IN, OUT, IGND, OGND |
|
Others |
|
| Reset button |
1 x RST |
|
Expansion |
1 x USB 2.0 Host; 5 V/500 mA |
|
LED indicators |
1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WiFi |
|
Watchdog |
Built-in |
|
Software (Basic features of RobustOS) |
|
|
Network protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN tunnel |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewall |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote management |
Web, CLI, SMS |
|
Serial port |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
Others |
Smart Roaming v2, etc. |
|
SDK |
|
|
Supported programming languages |
C, C++ |
|
Flash available for SDK |
5 MB |
|
RAM available for SDK |
256 MB |
|
App Center (Available Apps for RobustOS) |
|
|
Apps* |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069 |
|
*Request on demand. For more Apps please visit www.robustel.com. |
|
|
Power Supply and Consumption |
|
|
Connector |
3-pin 3.5 mm female socket with lock |
|
Input voltage |
9 ~ 36 VDC, 42.5~57V (POE-PD) 10 ~ 30 VDC (ACC) |
|
Power consumption |
Idle: 520 mA@12 V Data link: 1.8 A (peak) @12 V |
|
Physical Characteristics |
|
|
Ingress protection |
IP30 |
|
Housing & Weight |
Aluminum, 500 g |
|
Dimension |
125 x 100 x 48 mm |
|
Installations |

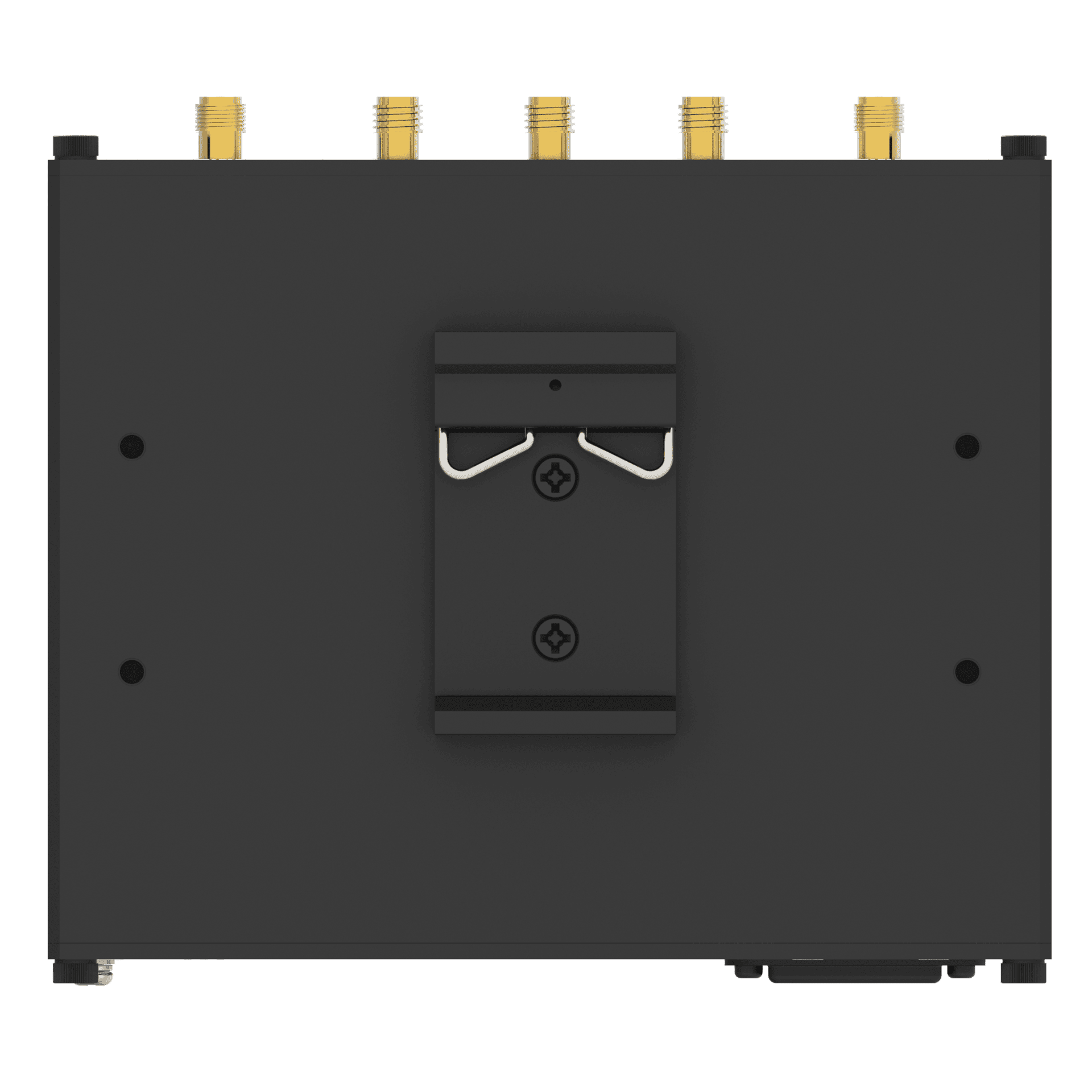

Desktop, wall mounting and DIN rail mounting |
|
Operating temperature |
-20 ~ +55°C (Normal operation) -25 ~ +70°C (Extended operation) |
|
Storage temperature |
-40 ~ +85°C |
|
Relative humidity |
5 ~ 95%RH |
|
Regulatory and Type Approvals |
|
|
Environmental |
RoHS2.0, WEEE |
|
EMI |
EN 55032 Conducted Emission Class A EN 55032 Radiated Emission Class A |
|
EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Line to line Level 3, Line to ground Level 1 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) Class 2 |
R5020 Hardware Manual
RobustOS Software Manual
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
|
Model |
PN |
GNSS |
ACC |
POE-PD |
Frequency Bands* |
Country/ Region |
Certification |
|
R5020-5G-A09GL-A |
B064803 |
* |
✓ |
– |
5G: NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/ n40/n41/n48/n66/n71/n77/n78/n79 NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/ n40/n41/n48/n66/n71/n77/n78/n79 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48 3G: WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 |
Global |
E-Mark, FCC, CE, IC, RCM, UKCA, CB, TDRA, NTC |
|
R5020-5G-A09GL-B |
B064802 |
* |
– |
✓ |
E-Mark, FCC, CE, IC, RCM, UKCA, PTCRB, AT&T, CB, TDRA, POSETL, SIRIM, NTC |
* GNSS: Required 4-in-1 Combo Antenna.
* For more information about frequency bands in different countries, please contact your Robustel sales representative.
