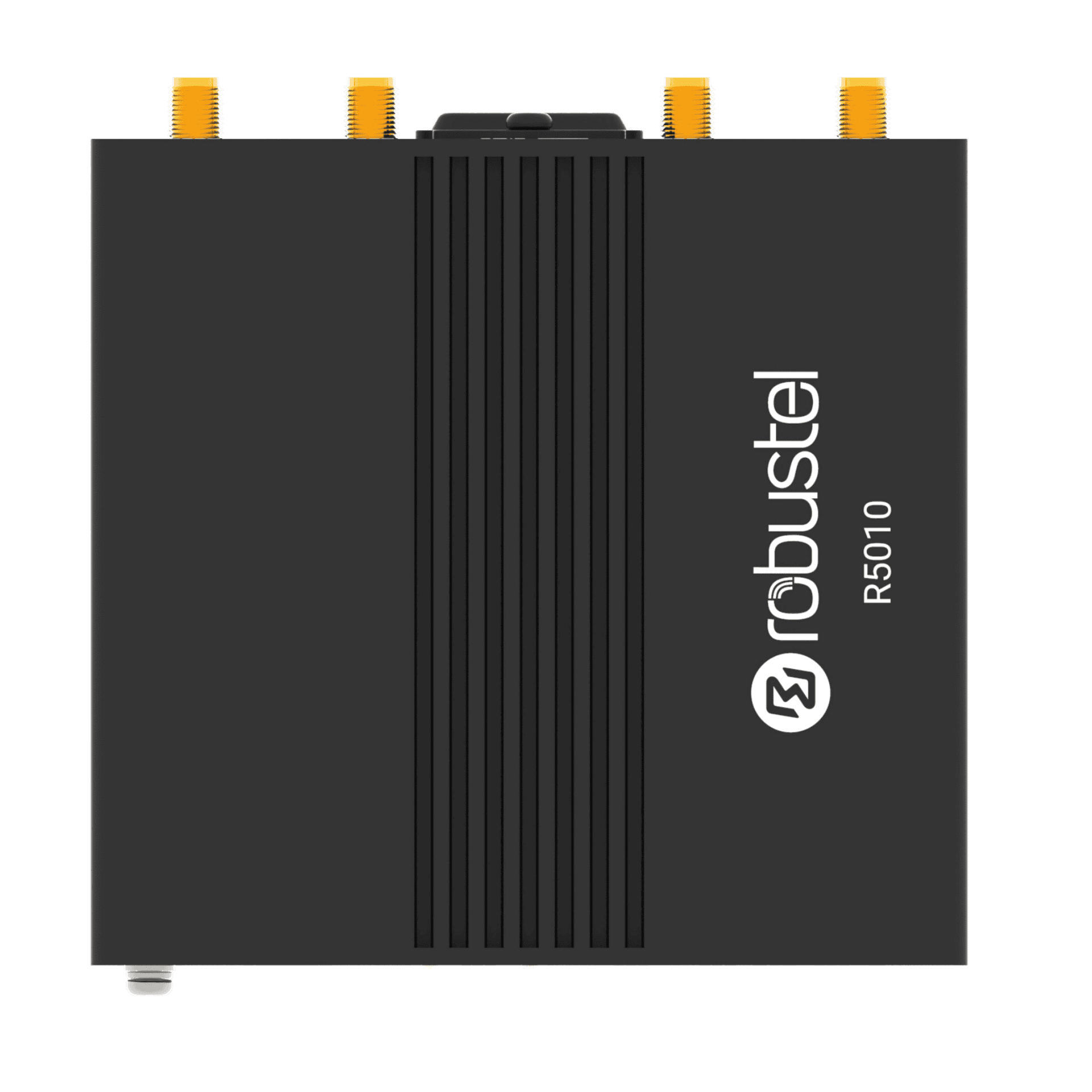

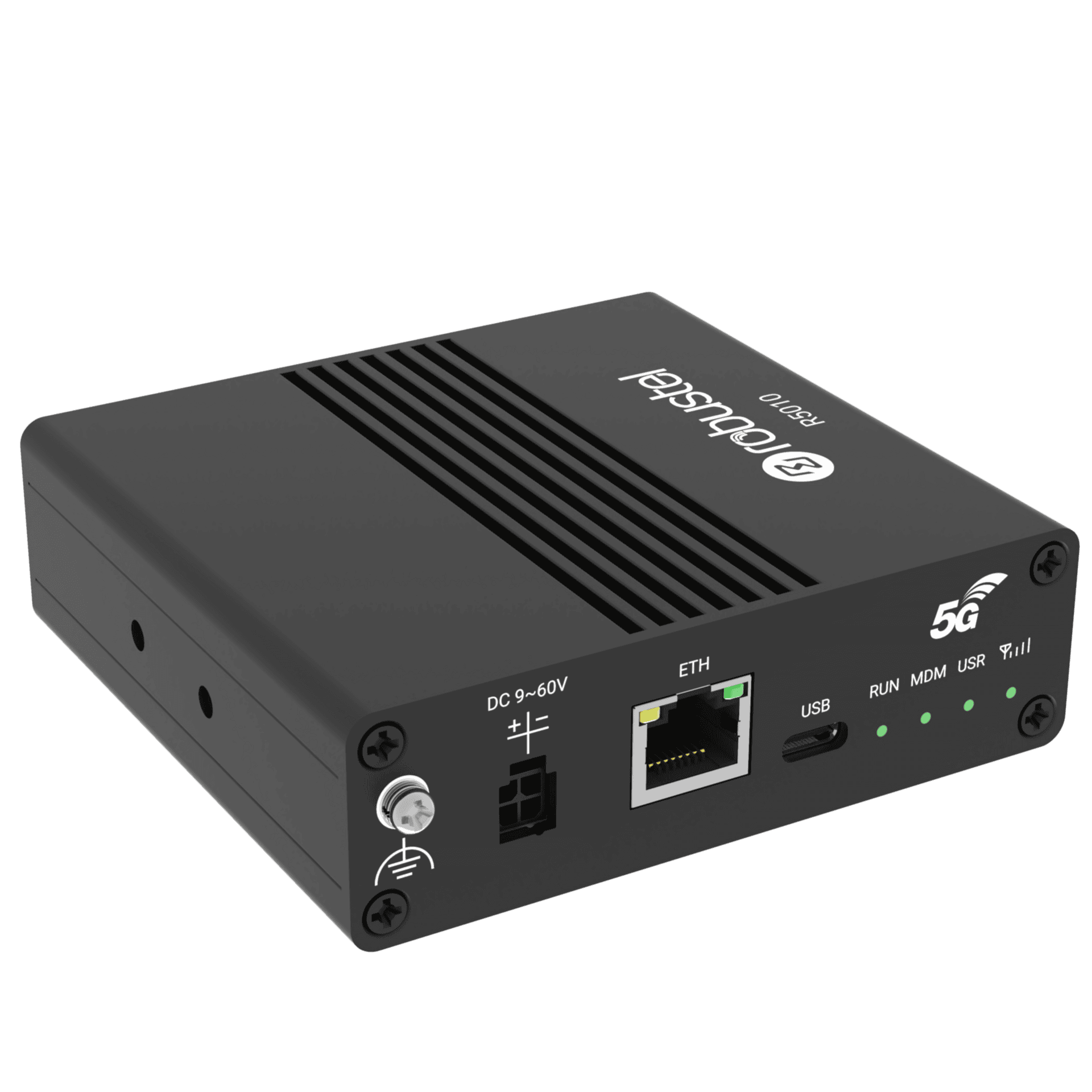

Robustel R5010
Industrial 5G Router with 2.5GB LAN, PoE-PD and USB Connectivity
The Robustel R5010 is an industrial 5G (Release 16) router built to deliver high-performance, manageable connectivity for multi-site networks.
It supports global 5G/4G/3G bands, pairs a 2.5 GbE LAN port with PoE-PD (802.3at) for flexible installation, and offers USB modem mode so it can present as a 5G modem to firewalls and SD-WAN appliances useful when the unit is mounted externally for stronger signal.
Security and operations are enterprise-grade: IPsec, OpenVPN, WireGuard, L2TP/DMVPN options plus fleet monitoring, configuration and updates via RCMS. Typical deployments include primary 5G broadband or SD-WAN failover where rapid rollout and resilient backhaul matter.
In summary, the R5010 delivers cost-effective 5G backup for SD-WAN appliances, centrally managed at scale.
DUAL-SIM CELLULAR
5G, 4G/LTE & 3G with Dual-SIM Card support for failover
SD-WAN READY
A cost effective 5G backup router for SD-WAN Switches.
INTERFACES
1x LAN & 1x USB both can be used for data connectivity.
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel on module with full SDK
RCMS ON-BOARD
RCMS Cloud device management enabled
R5010 ‘Quick Pitch’ Video
Example R5010 Use Cases
Primary 5G Connectivity
Primary site connectivity over 5G for high bandwidth applications like Kiosks, Ordering Systems or Digital Signs; Deploy faster than fixed lines & position externally for strong signal.
SD-WAN 5G Backup
Cost-effective 5G failover for SD-WAN appliances; maintain application reachability during ISP outages, improve resilience, and centralize monitoring, updates, and change control.
Temporary Workspaces
Bring pop-up or temporary worksites online quickly with primary or backup 5G; simple deployment, external mounting for better signal, and centralized management between events.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

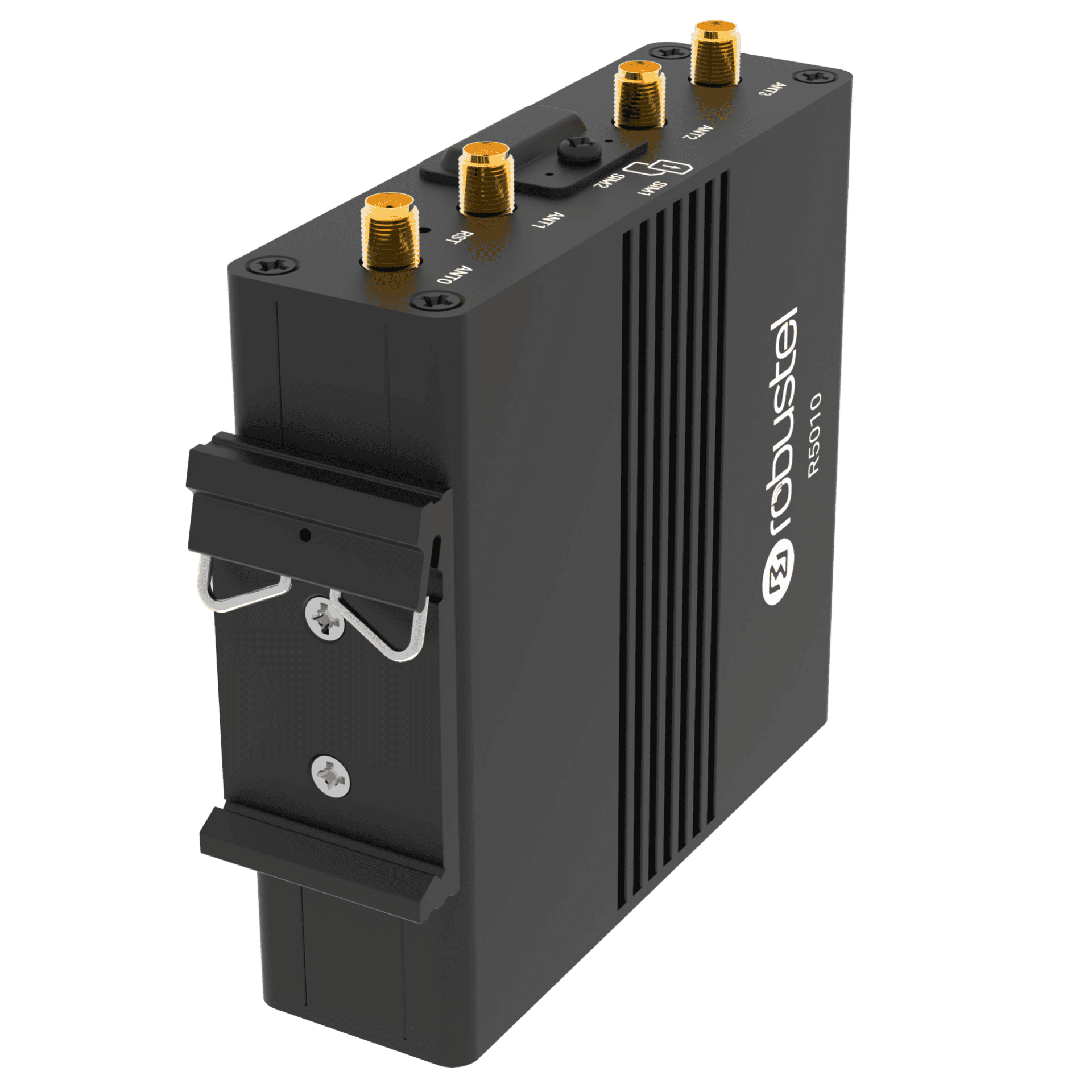

DIN Rail Mount

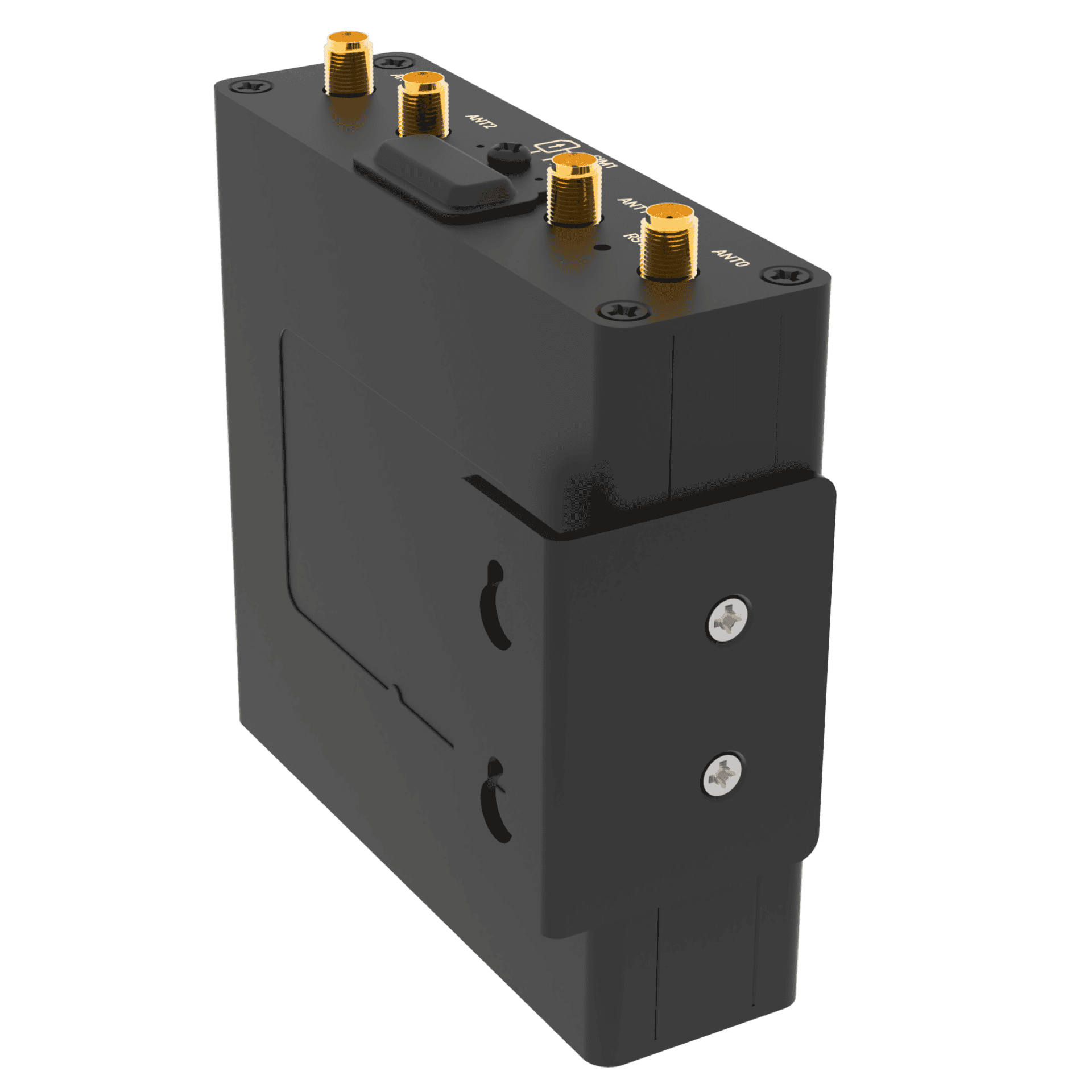

Wall Mount
System Architecture
|
Operating System |
RobustOS Pro |
|
CPU |
System on Module |
|
RAM |
110MB |
|
Flash |
45MB |
Cellular
|
Supported Technologies |
5G, 4G/LTE, 3G |
|

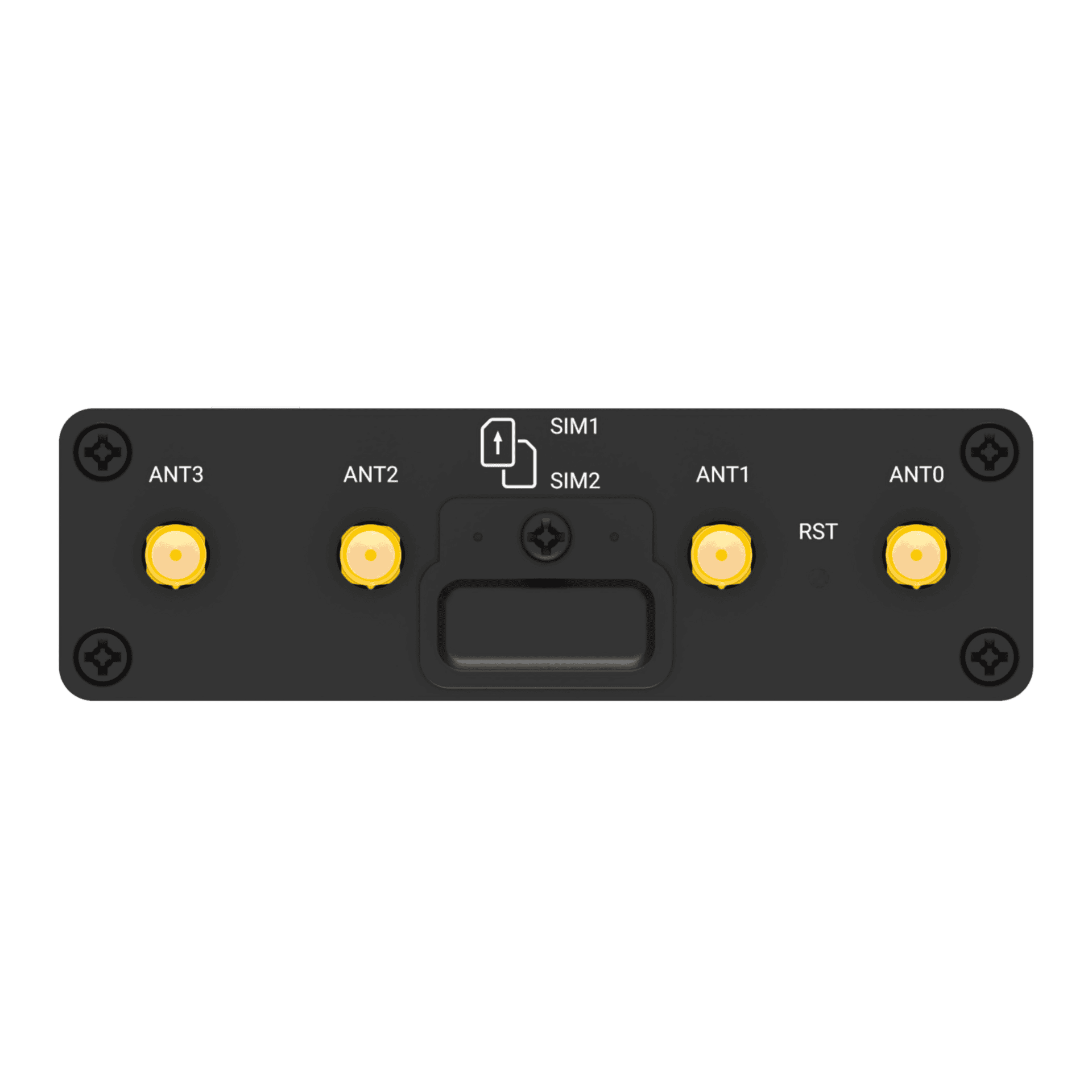

Antennas |
4 (ANT0 + ANT1 + ANT2 + ANT3) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
1 x 2.5 Gbps, LAN |
|
Magnet Isolation Protection |
1 KV |
PoE In (Optional)
|
PoE Ports |
ETH |
|
PoE Standards |
802.3at PD |
|
PoE Voltage |
Possibility to power up throught ETH |

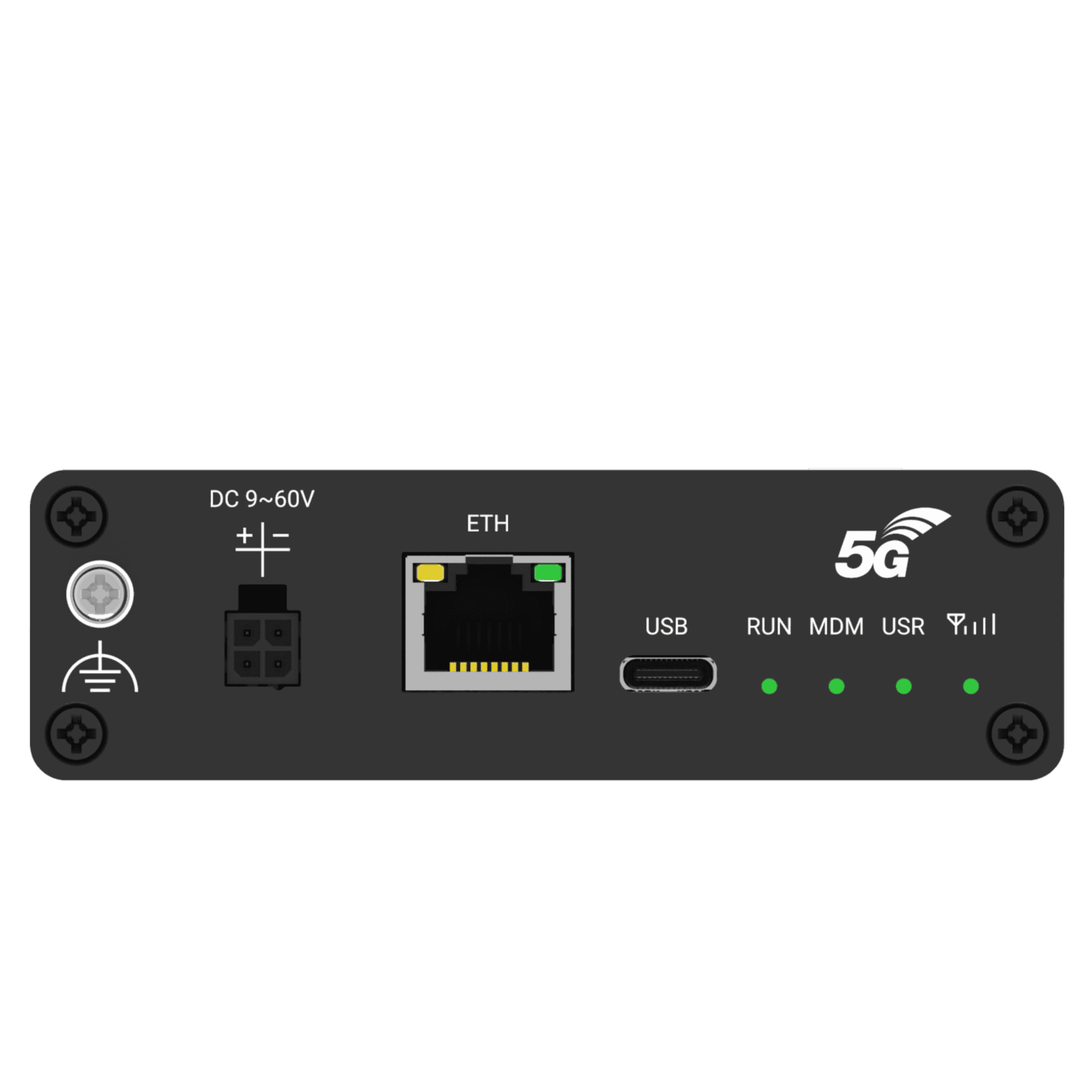

Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI |
|
Watchdog |
External |
|
USB |
1 x USB 3.1 (Type C), for power supply, network supply and debug |
Power Supply & Consumption
|
PSU Connector |
4-pin Micro-Fit socket |
|
Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC |
|
Power Consumption |
Idle: 1.5 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 276 g |
|
Dimensions |
30 x 94 x 100 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-40 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
10MB |
|
RAM available for SDK |
45MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
Testing |
IEC 60068-2-6 (Sinusoidal Vibration) |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 3, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Power Ports Level 2, Signal Ports Level 2 EN 61000-4-5 (Surge) Line to line Level 2, Line to ground Level 2 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) Class 2 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R5010-A-5G-A28EU |
5G NR SA/NSA: |
CE, UKCA, CB, RCM |
A011300001 |
1 x R5010 Router (B Code: B113001) |
|
R5010-A-5G-A28EU |
5G NR SA/NSA: |
CE, UKCA, CB, RCM |
A011300002 |
1 x R5010 Router (B Code: B113001) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
