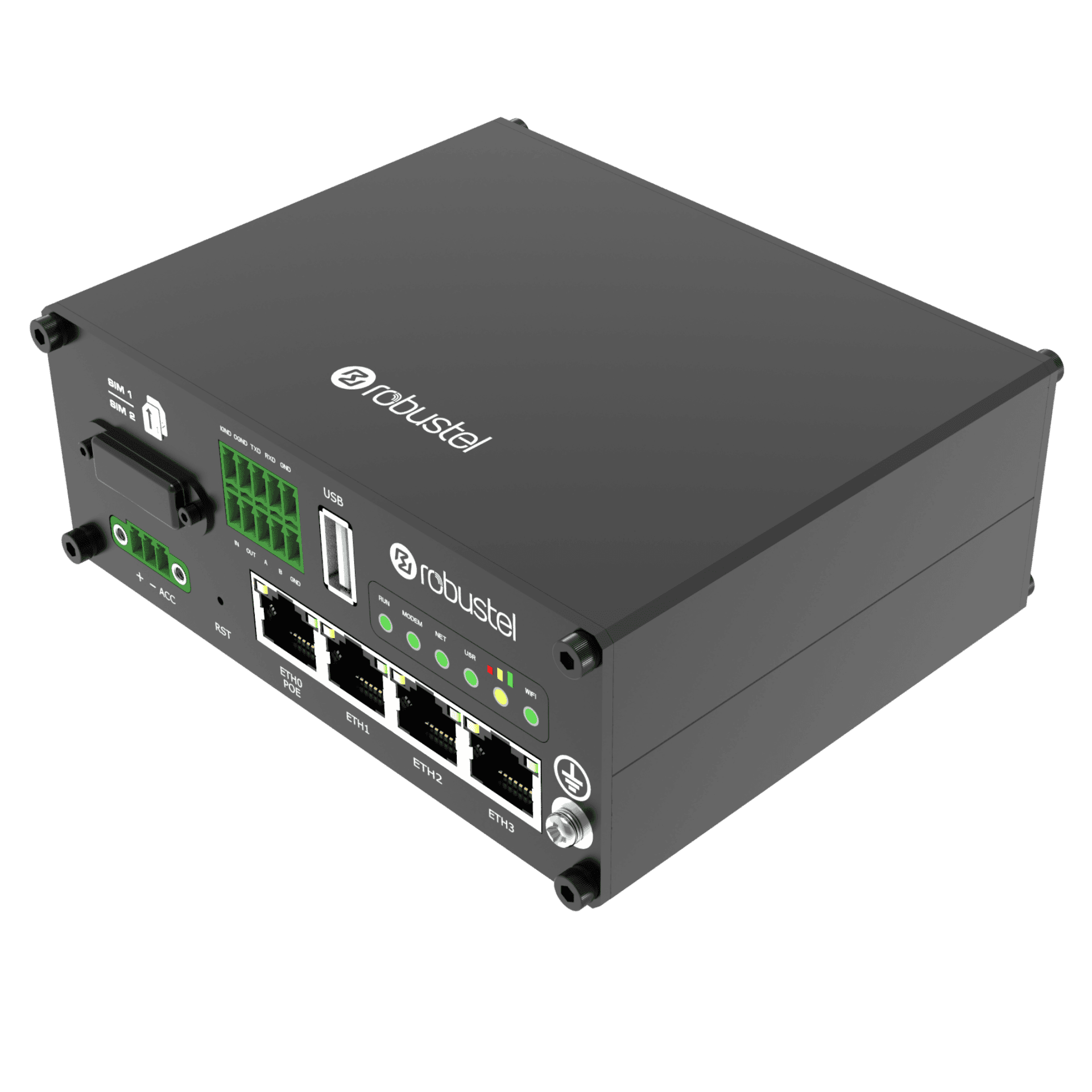

Robustel R2110
Industrial Dual-SIM 4G/LTE Router with 4 x Gigabit LAN Ports
The Robustel R2110-4L is an industrial LTE Cat-4 router designed for resilient site connectivity and secure fleet operations. It provides four gigabit Ethernet ports configurable as 1×WAN + 3×LAN, with dual-SIM and link backup across cellular/Ethernet/Wi-Fi to maintain service continuity; cold/warm backup and load balancing further optimise uptime and bandwidth.
Security is comprehensive with IPsec, OpenVPN, GRE and WireGuard, managed via Web/CLI/SNMP and at scale through RCMS. PoE-PD (optional) on ETH0 simplifies installation near antennas or panels.
Integration is straightforward: dual-band 802.11ac Wi-Fi, RS-232/RS-485, DI/DO, plus USB and micro-SD for field workflows. Built on RobustOS with a C/C++ SDK and App Centre, the R2110-4L lets teams tailor networking without changing upstream applications.
An IP30 metal enclosure, 9–36 V DC input, and desktop/wall/DIN-rail mounting suit control cabinets, remote sites and in vehicle applications.
DUAL-SIM CELLULAR
4G/LTE, 3G & 2G with Dual-SIM Card support for failover
Wi-Fi
Dual-band 802.11ac Wi-Fi 5 on 2.4GHz and 5GHz ISM Bands
INTERFACES
1x WAN, 3x LAN or 4x LAN,
1x RS-232, 1x RS-485, 1x DI/DO
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device management enabled
R2110 Product Video
Example R2110 Use Cases
In-Vehicle Connectivity Hub
Provides secure LTE backhaul and onboard Wi-Fi; segment ops vs passenger traffic; optional GNSS supports location reporting; RCMS centralizes updates and management.
Intelligent Traffic Systems
Backhaul controller and signage data to your platform via encrypted tunnels; dual-SIM failover maintains reachability; manage configurations and updates centrally.
Digital Signage & Screens
Delivers reliable IP backhaul from players to your CMS, keeping content updates flowing during outages and enabling centralized monitoring and troubleshooting.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

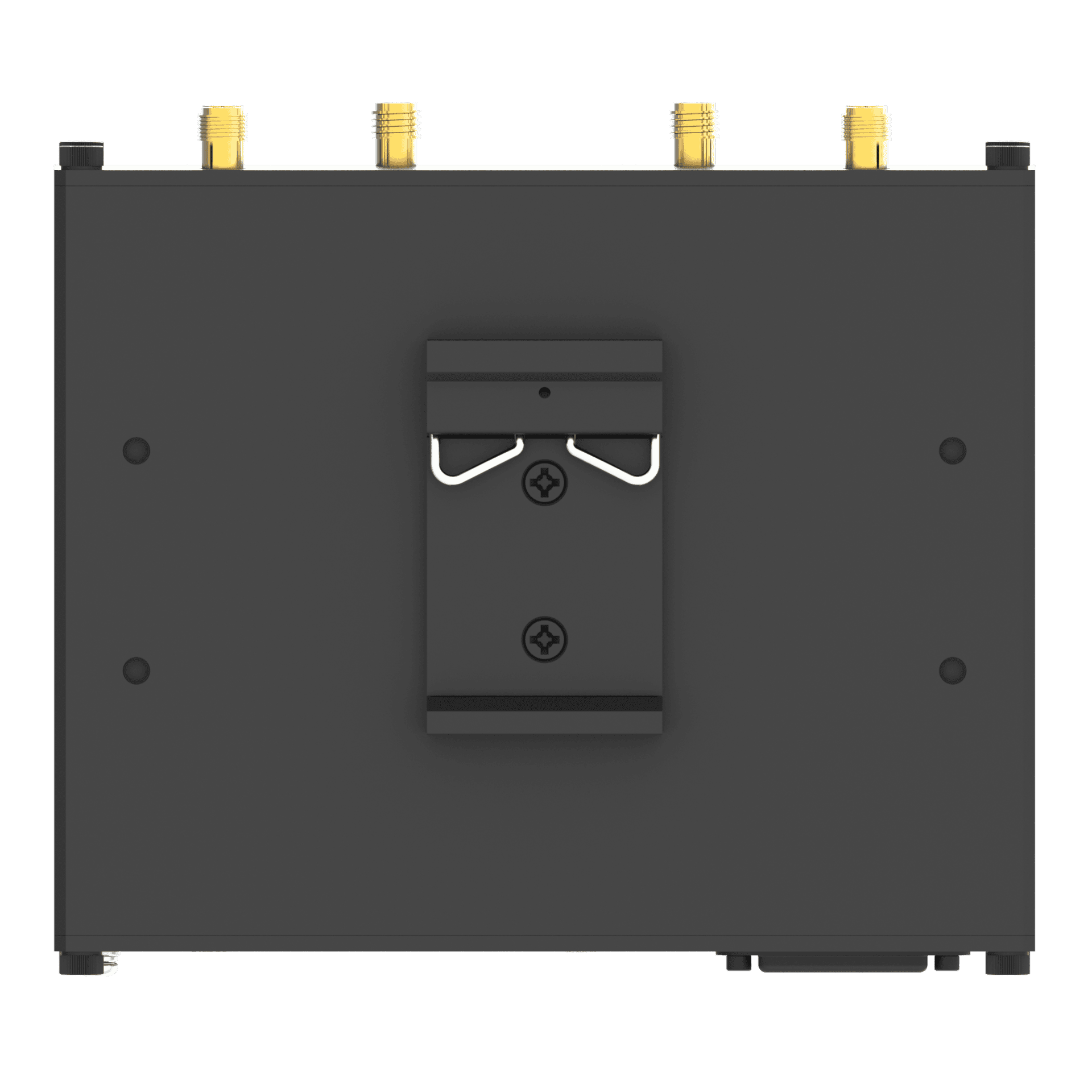

DIN Rail Mount

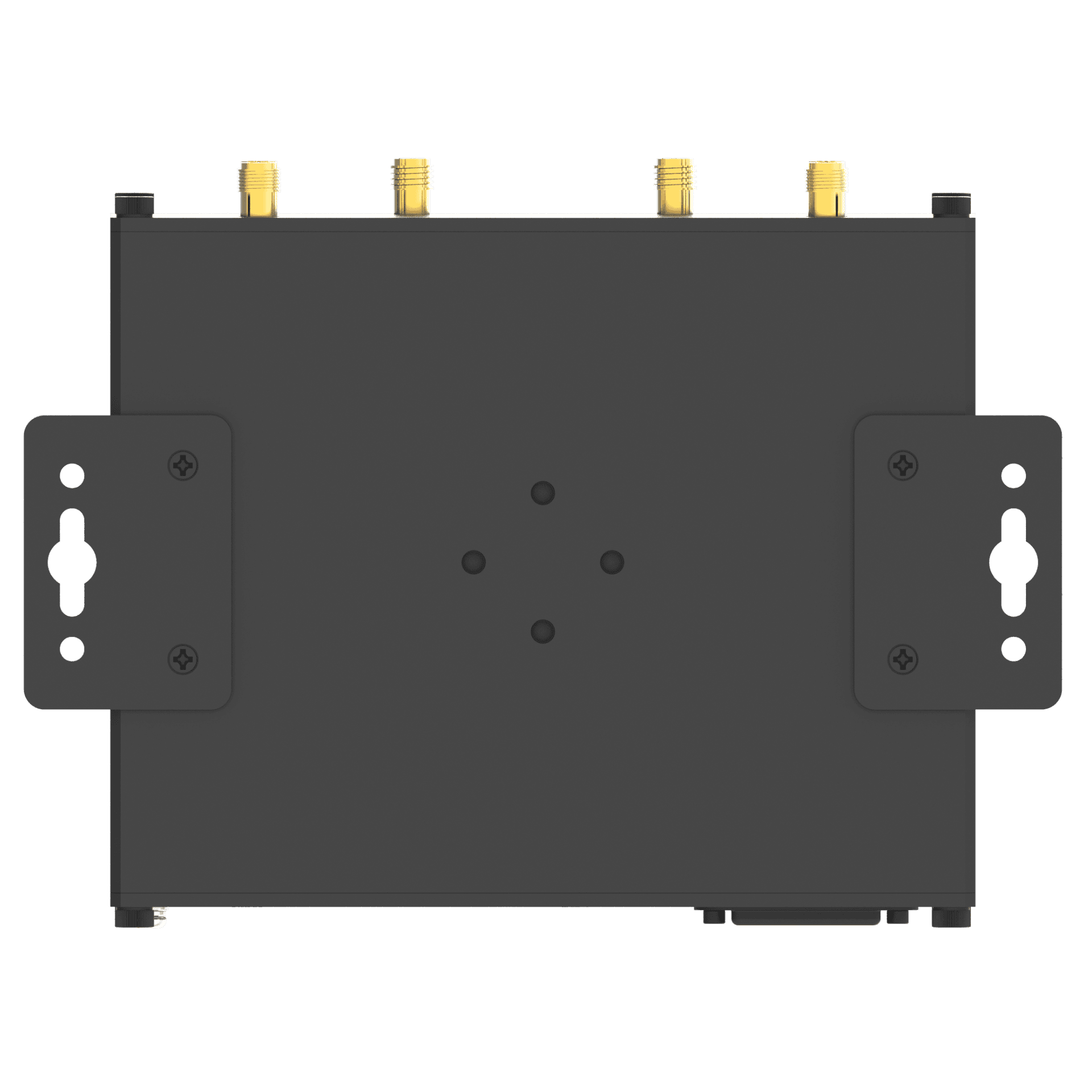

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
Dual-core MIPS, 880 MHz |
|
RAM |
512MB |
|
Flash |
32MB |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
4 x 10/100/1000 Mbps, 4 x LAN by default, can be configured as 1 x WAN + 3 x LAN |
|
Magnet Isolation Protection |
1 KV |
PoE In (Optional)
|
PoE Ports |
WAN1 |
|
PoE Standards |
802.3at PD |
Serial Port
|
Serial Ports |
1 x RS-232 + 1 x RS-485 |
|
Connector |
2 x 3-pin on 2 x 5-pin 3.5 mm female socket |
|
Baud Rate |
300 bps – 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND |
Digital Input/Output
|
DI/DO Ports |
1 x DI + 1 x DO (wet contact) |
|
Connector |
2 x 2-pin on 2 x 5-pin 3.5 mm female socket |
|
Isolation |
3.75 KV DC |
|
Absolute Maximum VDC |
+30 V DC (DI), +30 V DC (DO) |
|
Absolute Maximum ADC |
100 mA (DO) |
|
Signal Definition |
DI+, DI-, DO+, DO- |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
|
Frequency Bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
GNSS/GPS (Optional)
|
GNSS Antennas |
1 |
|
Connector |
SMA-K with 50 ohms impedance |
|
GNSS Technology |
GPS/QZSS/GOLNASS/Galileo/BeiDou |
|
Tracking sensitivity |
GNSS: greater than -148 dBm |
|
Horizontal position accuracy |
GNSS: 2.5 m |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MODEM, 1 x NET, 1 x USR, 1 x RSSI, 1 x Wi-Fi |
|
Watchdog |
Built-in |
|
SD Card |
1 x Micro SD |
|
USB |
1 x USB 2.0 (host), 5 V, 500 mA |
Power Supply & Consumption
|
PSU Connector |
3-pin 3.5 mm female socket with lock |
|
Input Voltage |
12/24 V DC, 9 ~ 36 V DC |
|
Power Consumption |
Idle: 6 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 500g |
|
Dimensions |
48 x 100 x 125 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-35 – +55 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
16MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 2 EN 61000-4-11 (Dips) Class 2 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R2110-4L |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA |
A004400703 |
1 x R2110 Router (B Code: B044746) |
|
R2110-4L |
4G LTE FDD: B1/3/7/8/20/28A 3G: B1/8 2G: B3/8 |
E-Mark, CE, UKCA |
A004400704 |
1 x R2110 Router (B Code: B044722) |
|
R2110-4L |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, |
A004400705 |
1 x R2110 Router (B Code: B044751) |
|
R2110-4L |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, |
A004400706 |
1 x R2110 Router (B Code: B044730) |
|
R2110-4L |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, |
A004400707 |
1 x R2110 Router (B Code: B044748) |
|
R2110-4L |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 4G LTE TDD: B38/39/40/41 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
E-Mark, CE, ICASA, |
A004400708 |
1 x R2110 Router (B Code: B044744) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
