Robustel R1520e Global
eSIM Router
Globally certified industrial Dual-SIM 4G/LTE router with 1x eSIM/eUICC, 1x 2FF SIM, 5× LAN, GNSS, serial, DI/DO, and analog input.
The Robustel R1520e Global is an industrial 4G/LTE VPN router designed for OEMs, system integrators, fleet operators, and distributed enterprises that need reliable cellular connectivity across multiple countries, carriers, and deployment environments.
Built on the proven R1520 Global platform, the R1520e combines wide 4G/LTE, 3G, and 2G band support with a hybrid 1 × eSIM MFF2 + 1 × physical SIM architecture. This gives organisations the flexibility of a removable SIM while adding the operational advantages of embedded eSIM/eUICC for remote profile provisioning, carrier changes, and long-term device lifecycle management.
The R1520e supports GSMA SGP.22 eSIM profile download and removal operations, with typical support for up to 6 eSIM profiles. When used with Robustel Cloud Manager Service (RCMS) enterprises can remotely assign and activate eSIM profiles across router fleets, helping reduce manual SIM handling, simplify international rollout, and avoid unnecessary site visits when connectivity requirements change.

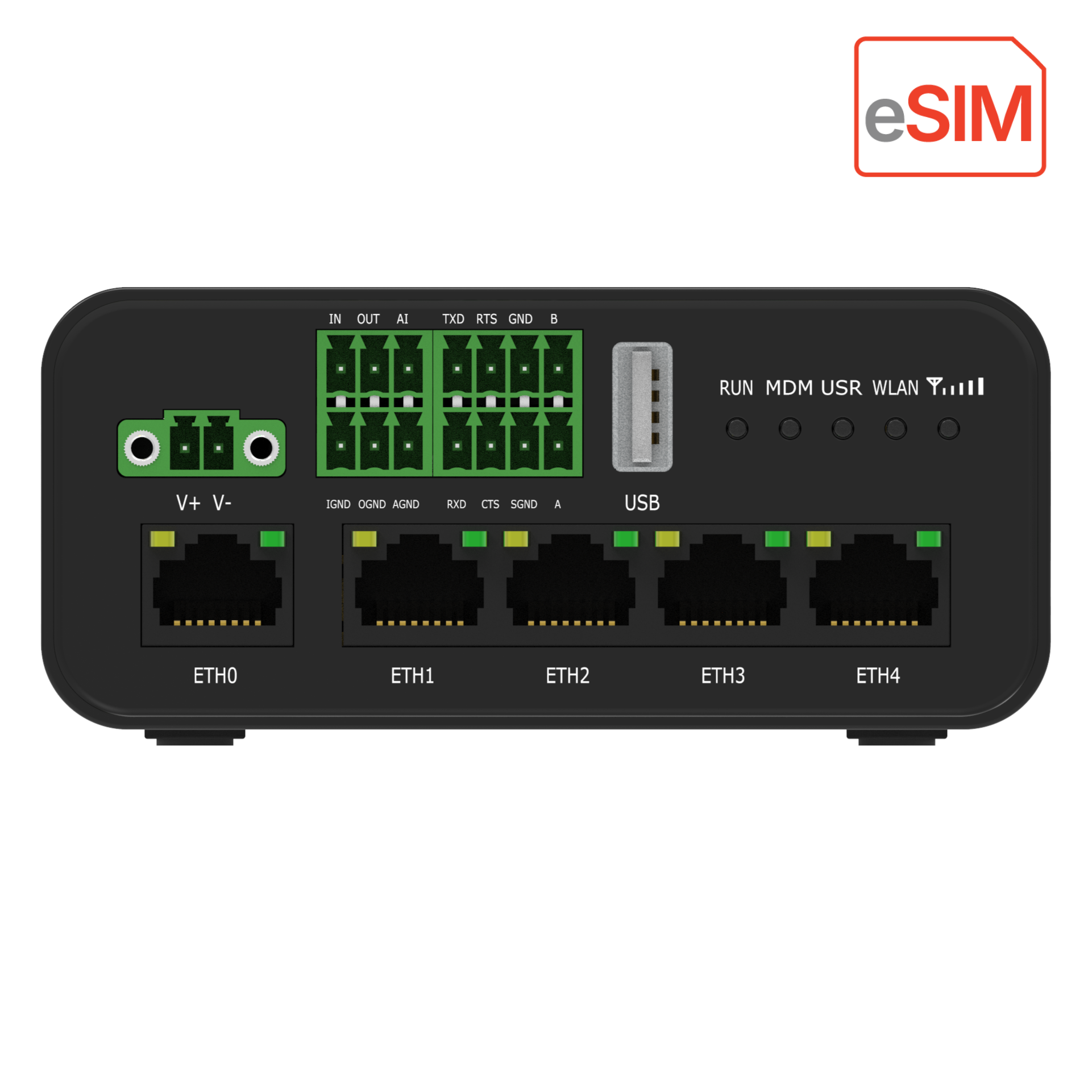

For industrial integration, the R1520e Global provides 5 × 10/100 Mbps Ethernet ports, configurable as 5 × LAN or 1 × WAN + 4 × LAN, plus RS-232, RS-485, 1 × DI, 1 × DO, 1 × analog input, Wi-Fi, GNSS, USB, optional PoE-PD on ETH0, and RobustOS networking features including VPN, routing, firewall, Smart Roaming, and RCMS remote management.
eSIM/eUICC Support
Remotely provision and deploy up to 6 eSIM/eUICC Profiles
GLOBAL SKU
Optional Globally Certified SKU for simplified deployment in over 50 countries
INTERFACES
1x WAN, 4x LAN or 5x LAN,
1x RS-232, 1x RS-485, 1x DI/DO, 1x AI, GNSS
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device management enabled
R1520 Global ‘Quick Pitch’ Video
Example R1520e Global Use Cases
Heavy Equipment Fleets
Deploy LTE connectivity for heavy equipment fleets operating across sites, regions, or countries. The R1520e Global supports secure backhaul for telematics, diagnostics, and operator systems, while SIM + eSIM connectivity helps reduce physical SIM swaps when equipment is moved, reassigned, or connected under a different carrier profile.
OEM Global Machinery
Standardise cellular connectivity for industrial machinery shipped into multiple markets. The R1520e Global combines broad LTE band support, industrial interfaces, and eSIM/eUICC profile management, helping OEMs reduce country-specific SIM logistics and support machines after delivery.
Global Retail & Branch Sites
Use the R1520e Global as primary or backup LTE connectivity for retail stores, branch offices, kiosks, and distributed enterprise sites. Remote eSIM provisioning helps central IT or managed service teams activate and change cellular profiles without shipping replacement SIM cards or sending technicians to site.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

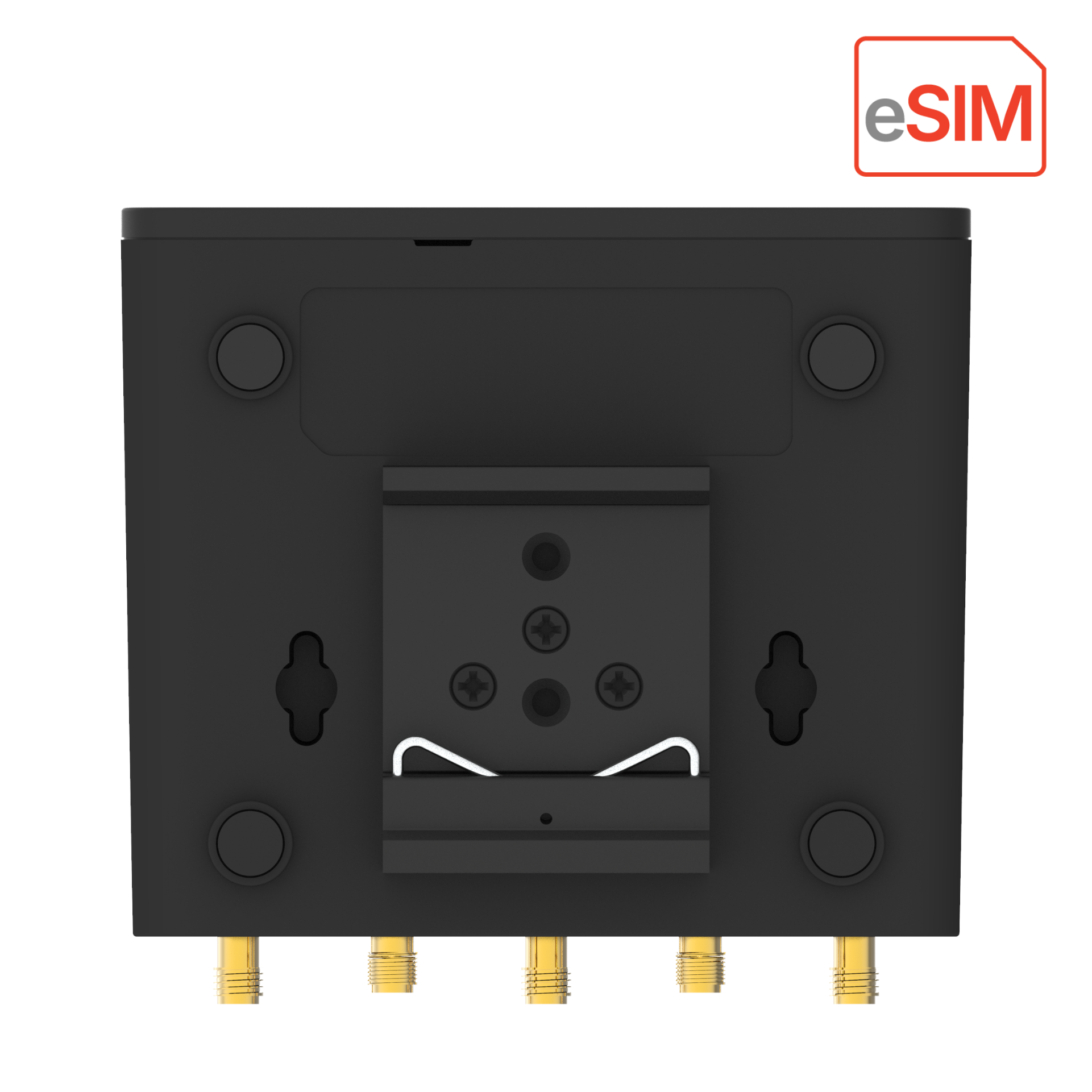

DIN Rail Mount

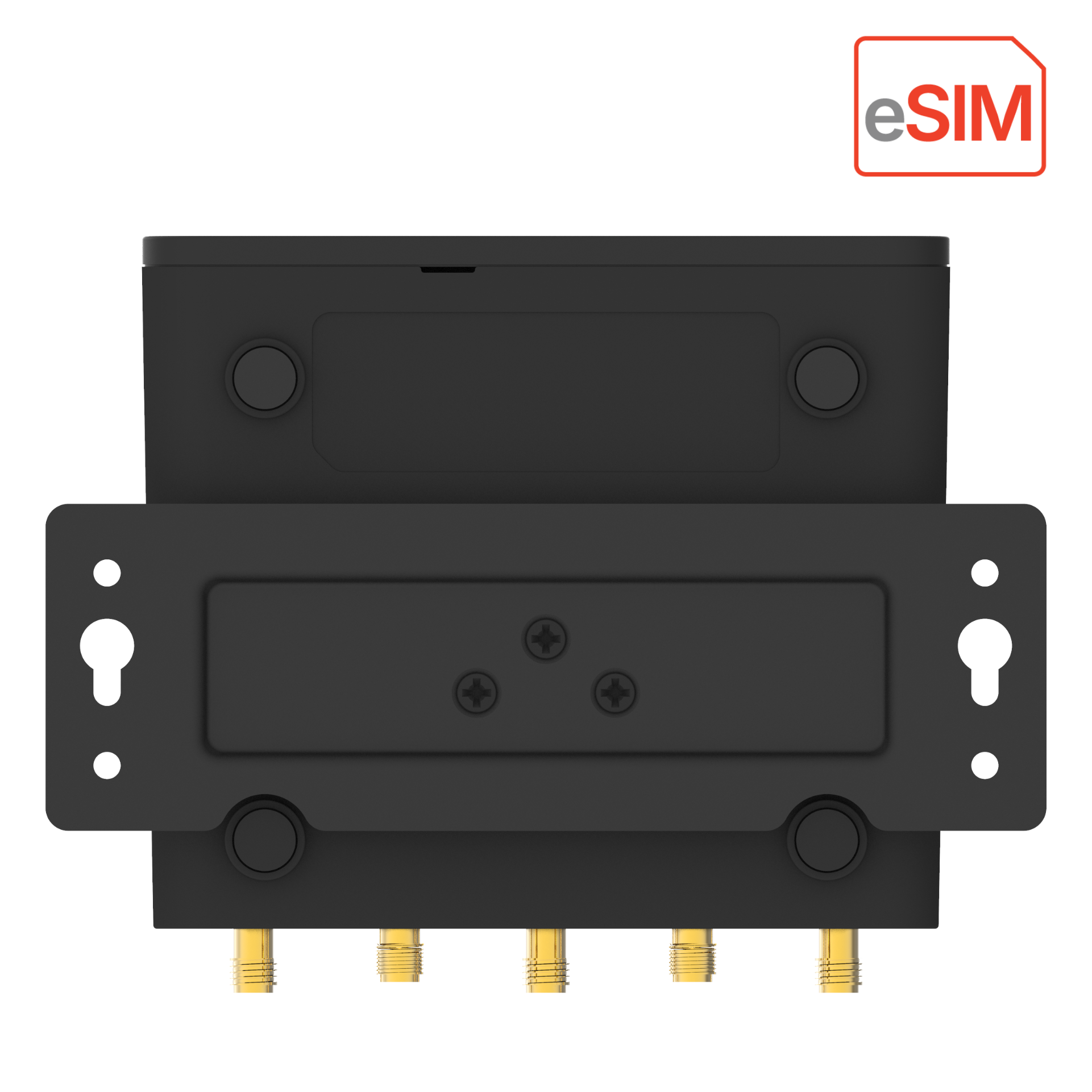

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
MIPS, 650 MHz |
|
RAM |
128MB |
|
Flash |
16MB |

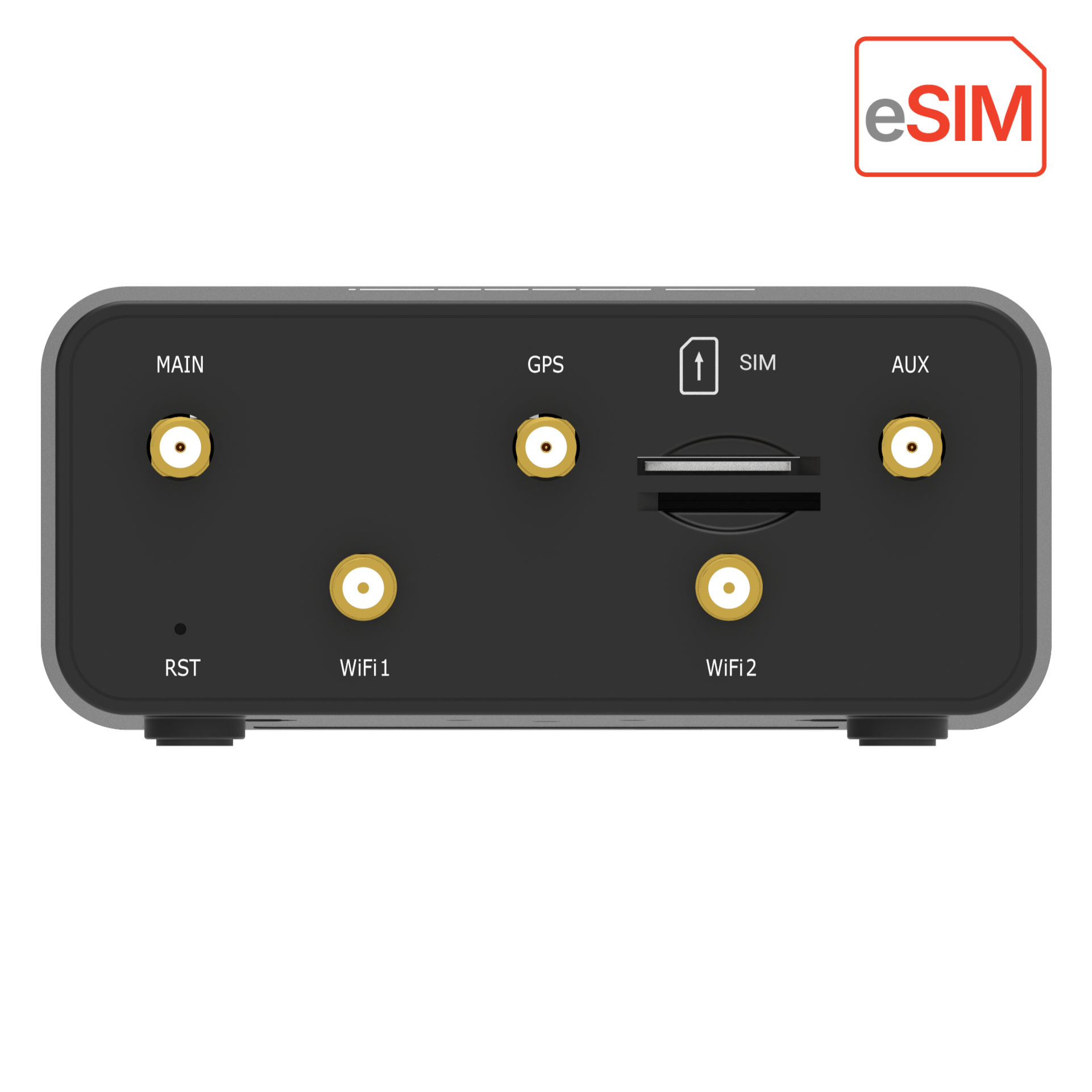

Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
1x eSIM/eUICC (MFF2) and 1 x Mini SIM (4FF) |
Ethernet
|
Ethernet Ports |
5 x 10/100 Mbps, 5 x LAN by default, can be configured as 1 x WAN + 4 x LAN |
|
Magnet Isolation Protection |
1.5 KV |
PoE In (Optional)
|
PoE Ports |
WAN1 |
|
PoE Standards |
802.3af & 802.3at PD |
Serial Port
|
Serial Ports |
1 x RS-232 + 1 x RS-485 |
|
Connector |
2 x 4-pin 3.5 mm female socket |
|
Baud Rate |
300 bps – 115200 bps |
|
Signal Definition |
RS-232: RXD, TXD, SGND, RTS, CTS |
Digital Input/Output
|
DI/DO Ports |
1 x DI + 1 x DO (wet contact) |
|
Connector |
2 x 3-pin 3.5 mm female socket |
|
Isolation |
3 KV |
|
Absolute Maximum VDC |
+30 V DC (DI), +30 V DC (DO) |
|
Absolute Maximum ADC |
10 mA (DO) |
|
Signal Definition |
DI+, DI-, DO+, DO- |
Analog Input
|
Analog Ports |
1 x AI (can be configured as voltage type or current type) |
|
Connector |
2 x 3-pin 3.5 mm female socket |
|
Voltage Input Range |
0 ~ 24 V DC |
|
Current Input Range |
4 ~ 20 mA (current-type input requires external resistance, and finally measured by voltage) |
|
Signal Definition |
AI, AGND |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 b/g/n, supporting AP and Client modes |
|
Frequency Bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
64/128 AES, TKIP |
GNSS/GPS (Optional)
|
GNSS Antennas |
1 |
|
Connector |
SMA-K with 50 ohms impedance |
|
GNSS Technology |
GPS/QZSS/GLONASS/Galileo/BeiDou |
|
Tracking sensitivity |
GNSS: greater than -148 dBm |
|
Horizontal position accuracy |
GNSS: 2.5 m |
Others
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI |
|
Watchdog |
Built-in |
|
RTC |
External RTC clock for accurate timekeeping Backup energy storage capacitor provides up to 2 days of maintenance |
|
USB |
1 x 480 Mbps High-speed USB 2.0 port (Type A, 5 V, 500 mA) |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm female socket |
|
Input Voltage |
12/24 VDC, 9 ~ 36 VDC |
|
Power Consumption |
Idle: 3 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Plastic, 250g |
|
Dimensions |
46 x 90 x 105 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-25 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming V3 |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
4MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0, WEEE |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R1520-4L Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, *E-Mark, *RCM, *FCC, *IC, |
A005600730 |
1 x R1520e Global Router (B Code: B005600720) |
|
R1520-4L Global |
4G LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
CE, UKCA, *E-Mark, *RCM, *FCC, *IC, |
A005600731 |
1 x R1520e Global Router (B Code: B005600720) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes certification underway
