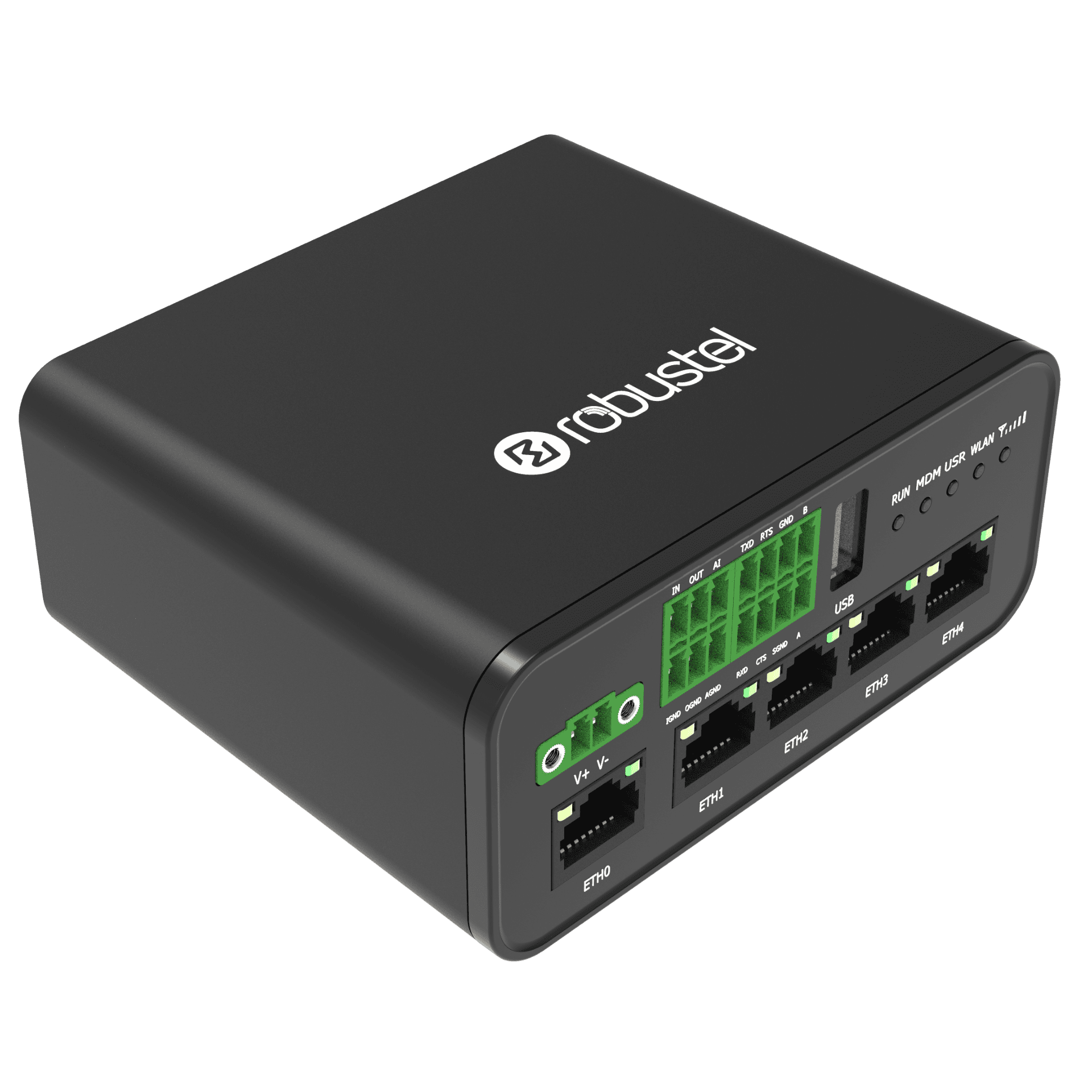

Robustel R1520
Industrial Dual-SIM 4G/LTE Router with 5 x LAN Ports, GNSS, Serial, DI/DO and Analog Input.
The Robustel R1520 is a proven, cost-effective industrial 4G router built for real-world IoT deployments where reliability and flexible networking matter. With five Ethernet ports, a rugged design, and a wide 9โ36 VDC input range, it drops cleanly into control cabinets, kiosks, remote sites, and light industrial networks delivering stable connectivity without the cost and complexity of larger platforms.
Choose the model that fits your environment: the R1520 (S) Standard for most industrial and enterprise use cases, or the R1520 (V) Vehicle variant with E-mark certification and GNSS for fleet and mobile deployments. Dual SIM support, Wi-Fi/Ethernet WAN options, cellular keep-alive, and fast failover keep sites online when carriers or links fluctuate, while optically isolated digital I/O and a 10-bit analog interface enable direct integration with sensors and field equipment.
Under the hood, the in-house RobustOS platform unlocks serious capability without adding operational painโbacked by strong technical support and a modular design that keeps firmware stable. You get advanced VPN options (IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN) plus RobustVPN for fixed-IP-style access, and built-in diagnostics like on-router packet capture for faster troubleshooting. Add RCMS for centralized, cloud-based monitoring, geospatial visibility, and OTA updates across your fleet so the R1520 scales from a single site to thousands with confidence.
DUAL-SIM CELLULAR
Global Frequency 4G/LTE, 3G & 2G with Dual-SIM Card support for failover
SKU Options
R1520(s) for standard industrial deployments.
R1520(v) for in-vehicle IoT.

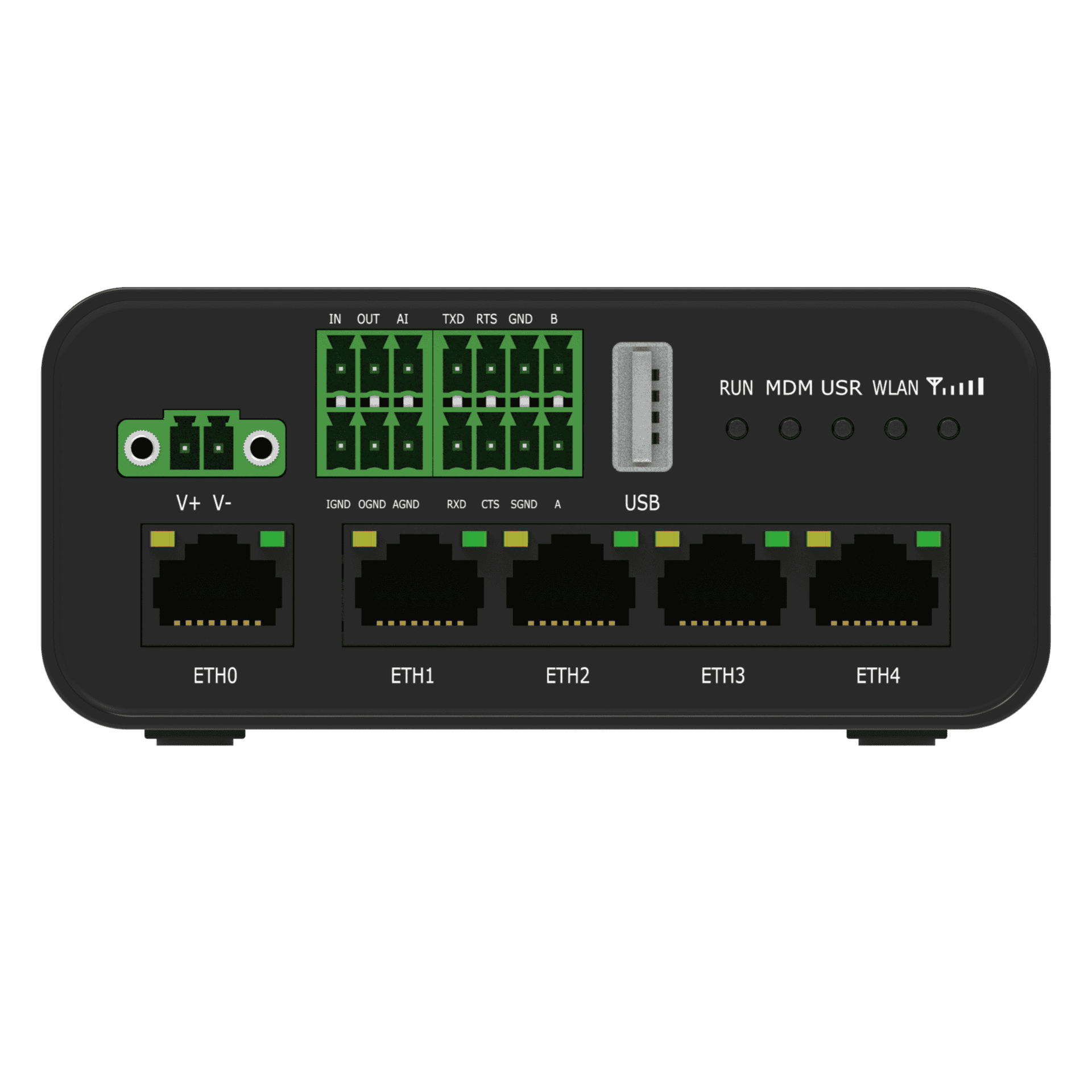

INTERFACES
1x WAN, 4x LAN or 5x LAN,
1x RS-232, 1x RS-485, 1x DI/DO, 1x AI, GNSS
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device management enabled
R1520 Product Video
Example R1520 Use Cases
In-Vehicle Connectivity Hub
Provides secure LTE backhaul and onboard Wi-Fi; segment ops vs passenger traffic; optional GNSS supports location reporting; RCMS centralizes updates and management.
Intelligent Traffic Systems
Backhaul controller and signage data to your platform via encrypted tunnels; dual-SIM failover maintains reachability; manage configurations and updates centrally.
Digital Signage & Screens
Delivers reliable IP backhaul from players to your CMS, keeping content updates flowing during outages and enabling centralized monitoring and troubleshooting.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, itโs impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options

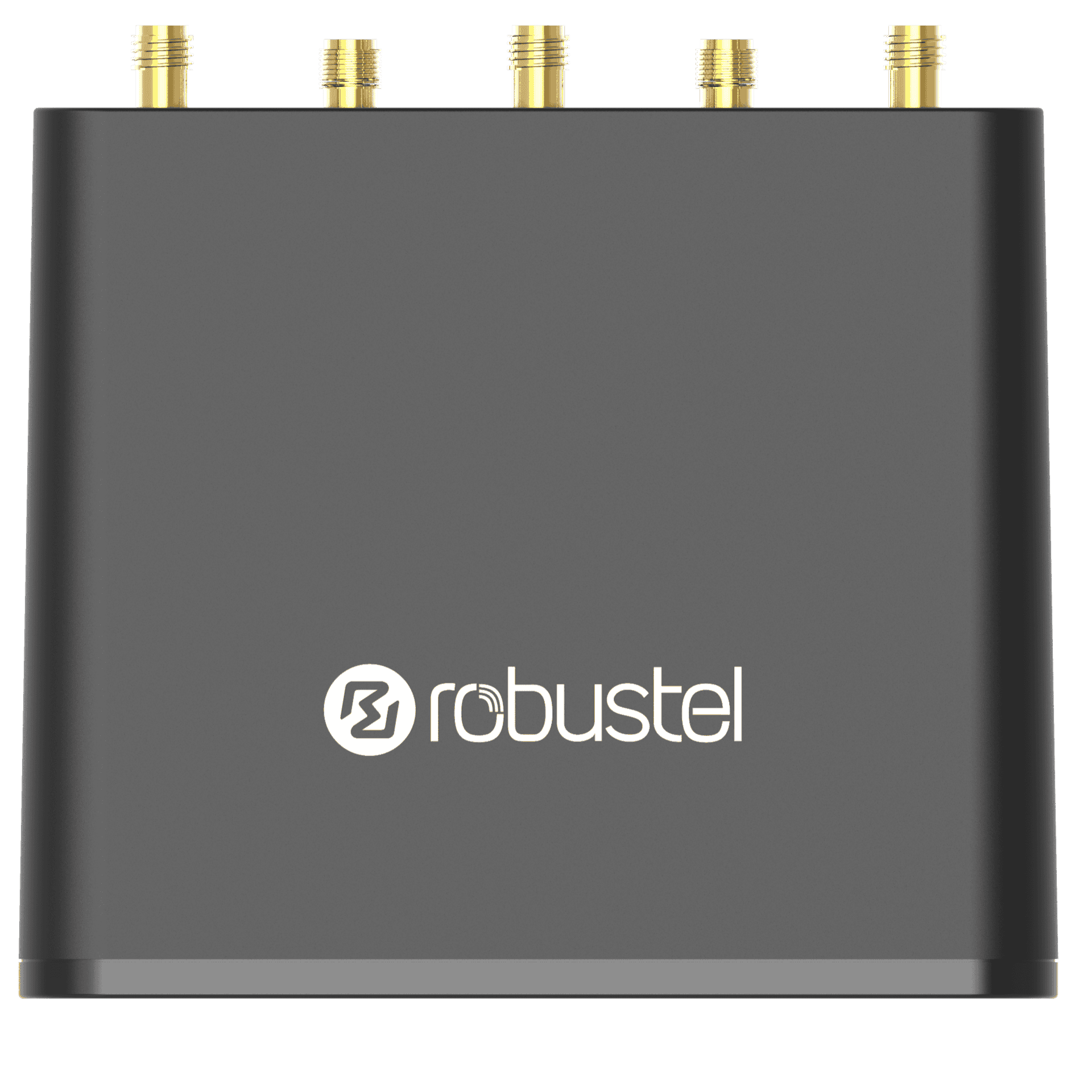

Desktop Mount

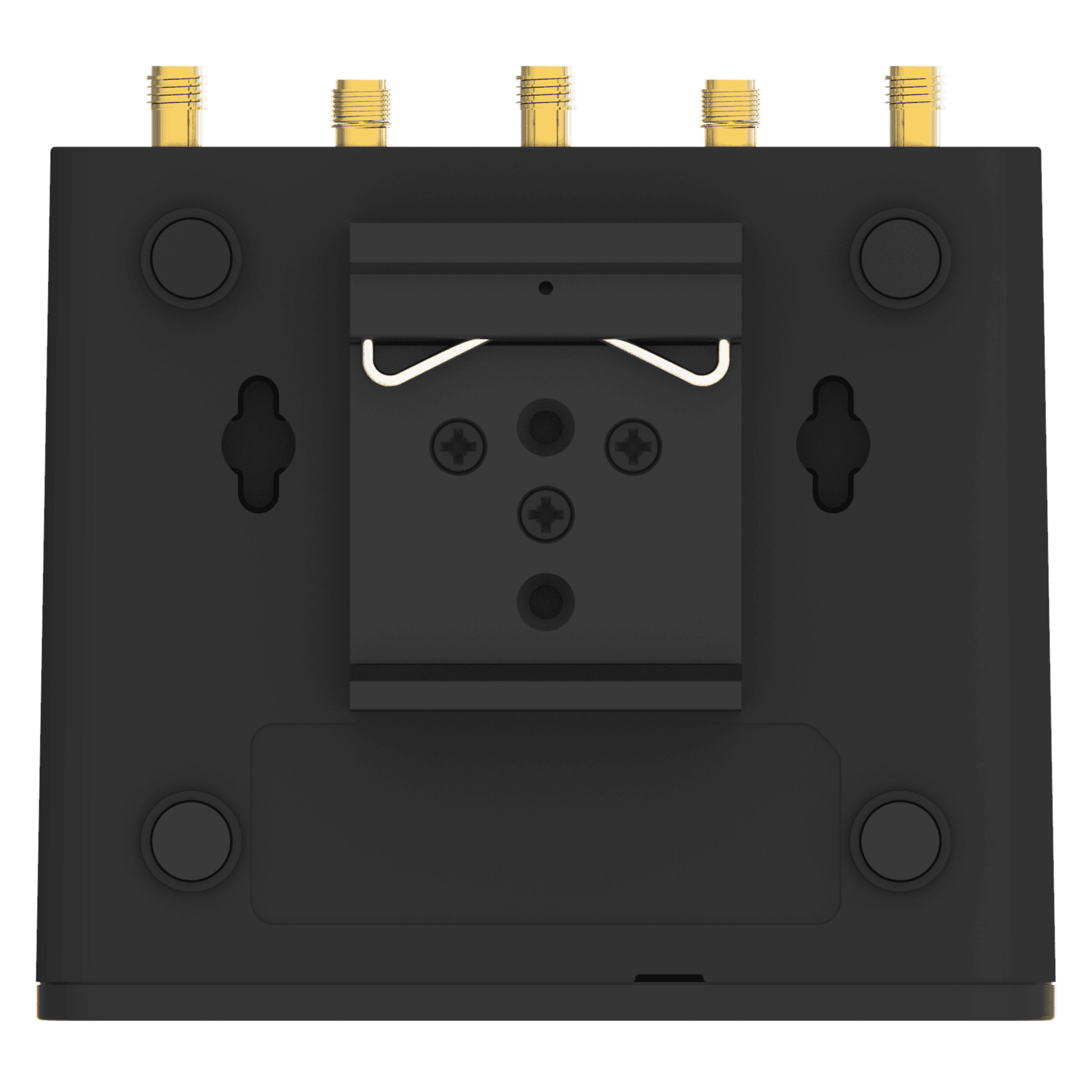

DIN Rail Mount

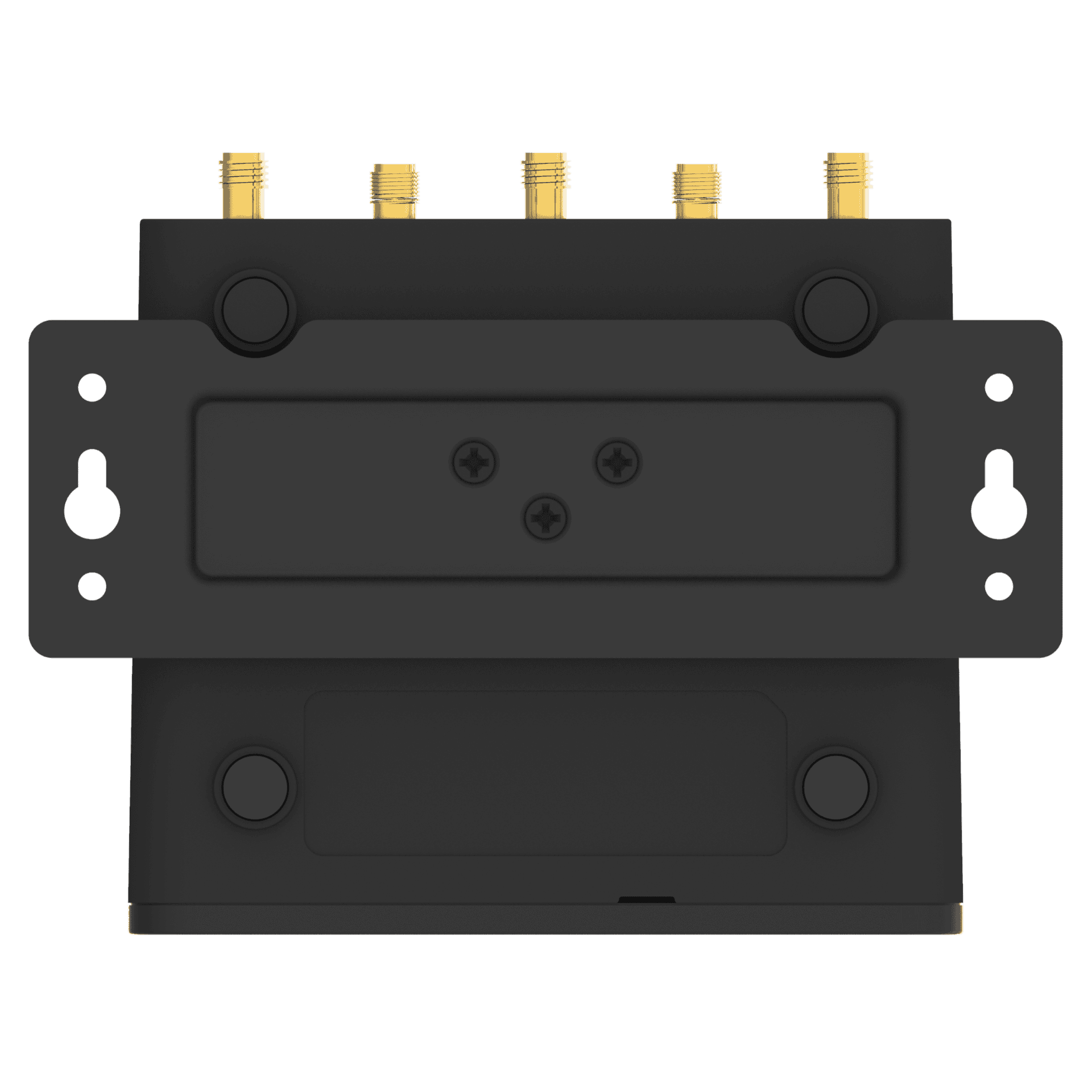

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
MIPS, 650 MHz |
|
RAM |
128MB |
|
Flash |
16MB |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|

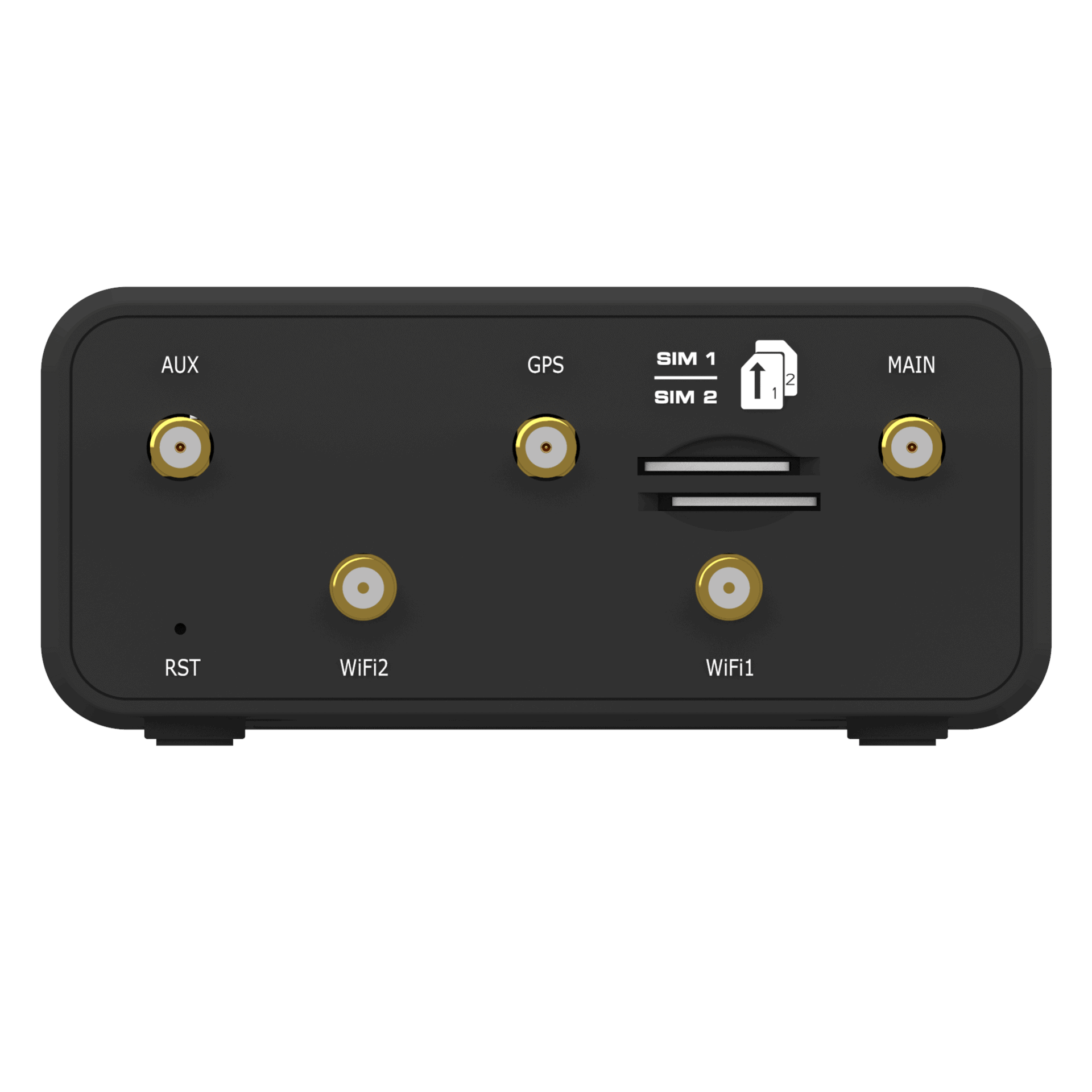

Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
5 x 10/100 Mbps, 5 x LAN by default, can be configured as 1 x WAN + 4 x LAN |
|
Magnet Isolation Protection |
1.5 KV |
PoE In (Optional)
|
PoE Ports |
WAN1 |
|
PoE Standards |
802.3af & 802.3at PD |
Serial Port
|
Serial Ports |
1 x RS-232 + 1 x RS-485 |
|
Connector |
2 x 4-pin 3.5 mm female socket |
|
Baud Rate |
300 bps – 115200 bps |
|
Signal Definition |
RS-232: RXD, TXD, SGND, RTS, CTS |
Digital Input/Output
|
DI/DO Ports |
1 x DI + 1 x DO (wet contact) |
|
Connector |
2 x 3-pin 3.5 mm female socket |
|
Isolation |
3 KV |
|
Absolute Maximum VDC |
+30 V DC (DI), +30 V DC (DO) |
|
Absolute Maximum ADC |
10 mA (DO) |
|
Signal Definition |
DI+, DI-, DO+, DO- |
Analog Input
|
Analog Ports |
1 x AI (can be configured as voltage type or current type) |
|
Connector |
2 x 3-pin 3.5 mm female socket |
|
Voltage Input Range |
0 ~ 24 V DC |
|
Current Input Range |
4 ~ 20 mA (current-type input requires external resistance, and finally measured by voltage) |
|
Signal Definition |
AI, AGND |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 b/g/n, supporting AP and Client modes |
|
Frequency Bands |
2.412 โ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
64/128 AES, TKIP |
GNSS/GPS (Optional)
|
GNSS Antennas |
1 |
|
Connector |
SMA-K with 50 ohms impedance |
|
GNSS Technology |
GPS/QZSS/GOLNASS/Galileo/BeiDou |
|
Tracking sensitivity |
GNSS: greater than -148 dBm |
|
Horizontal position accuracy |
GNSS: 2.5 m |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI |
|
Watchdog |
Built-in |
|
RTC |
External RTC clock for accurate timekeeping Backup energy storage capacitor provides up to 2 days of maintenance |
|
USB |
1 x 480 Mbps High-speed USB 2.0 port (Type A, 5 V, 500 mA) |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm female socket |
|
Input Voltage |
12/24 V DC, 9 ~ 36 V DC |
|
Power Consumption |
Idle: 3 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Plastic, 250g |
|
Dimensions |
46 x 90 x 105 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-25 – +70 ยฐC |
|
Storage Temperature |
-40 – +85 ยฐC |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
4MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0, WEEE |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
CE, E-Mark, FCC, IC, TDRA, ICASA, UKCA, SIRIM, NTC, E118 |
A005600715 |
1 x R1520 Router (B Code: B056708) |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
CE, E-Mark, FCC, IC, TDRA, ICASA, UKCA, SIRIM, NTC, E118 |
A005600716 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
CE, E-Mark, FCC, IC, TDRA, ICASA, UKCA, SIRIM, NTC, E118 |
A005600717 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 4G LTE TDD: B38/B39/B40/B41 3G: B1/B2/B4/B5/B6/B8/B19 2G: 850/900/1800/1900 MHz |
CE, E-Mark, FCC, IC, TDRA, ICASA, UKCA, SIRIM, NTC, E118 |
A005600718 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: 850/900/1800/1900 MHz |
RCM, CB, E118 |
A005600719 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: 850/900/1800/1900 MHz |
RCM, CB, E118 |
A005600720 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: 850/900/1800/1900 MHz |
RCM, CB, E118, ANATEL |
A005600721 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 4G LTE TDD: B40 3G: B1/B2/B5/B8 2G: 850/900/1800/1900 MHz |
RCM, CB, E118, ANATEL |
A005600722 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE |
A005600723 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE |
A005600724 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE |
A005600725 |
1 x R1520 Router |
|
R1520-4L (V) |
4G LTE FDD: B1/B3/B8/B18/B19/B26 4G LTE TDD: B41 3G: B1/B6/B8/B19 |
Telec, JATE |
A005600726 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B7/B8/B20/B28A 3G: B1/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark, CB, E118 |
A005600709 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B7/B8/B20/B28A 3G: B1/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark, CB, E118 |
A005600710 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B7/B8/B20/B28A 3G: B1/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark, CB, E118 |
A005600711 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B7/B8/B20/B28A 3G: B1/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark, CB, E118 |
A005600712 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B5/B7/B8/B20/B28 3G: B1/B5/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark |
A005600713 |
1 x R1520 Router |
|
R1520-4L (S) |
4G LTE FDD: B1/B3/B5/B7/B8/B20/B28 3G: B1/B5/B8 2G: 8900/1800 MHz |
CE, UKCA, E-Mark |
A005600714 |
1 x R1520 Router |
NOTE:
1. For more information about regional & carrier specific variants please contact us
