Robustel R1511e
Compact Industrial 4G/LTE Router with 1x eSIM/eUICC, 2x ETH & Serial RS232 OR RS485
The Robustel R1511e is a compact industrial router supporting global LTE frequencies, designed to connect both Ethernet and serial equipment using a fully embedded eSIM/eUICC. Built on the proven R1511 platform, it uses an embedded MFF2 eSIM that supports the GSMA SGP.22 standard, letting you remotely download, activate, and switch operator profiles over the air to adapt coverage, roaming, and tariffs without site visits or SIM swaps. Advanced eSIM features further reduce operational risk and friction, including secure profile enable/disable and switching, automatic failsafe rollback to the last working profile if provisioning fails, and profile rotation that supports better long-term lifecycle management.
On the connectivity side, two Fast-Ethernet ports (configurable as LAN/WAN or dual LAN) plus an optional RS-232 or RS-485 interface enable direct connection to PLCs, meters, and legacy controllers. A built-in Modbus RTU to TCP gateway and transparent TCP/UDP modes simplify serial-to-IP integration without requiring changes to upstream applications, while optional Wi-Fi (AP/Client) and automatic failover support flexible backhaul designs across 4G/3G/2G, Ethernet, or Wi-Fi.
At scale, Robustel Cloud Manager Service (RCMS) provides real-time monitoring and centralized management for configuration, updates, and eSIM profile operations across fleets.
eSIM/eUICC Support
Remotely provision and deploy up to 6 eSIM/eUICC Profiles
Global Band Support
Global frequency support on 4G/LTE, 3G & 2G networks.
INTERFACES
1x WAN, 1x LAN or 2x LAN,
1x RS-232 OR RS-485
OPERATING SYSTEM
RobustOS – Lightweight Linux kernel with full SDK
RCMS ON-BOARD
RCMS Cloud device & eSIM management enabled
Example R1511e Use Cases
Legacy Serial Asset Support
Enable cellular connectivity for legacy serial devices without hardware replacement. eSIM allows remote provisioning, while RCMS provides centralized monitoring and management.
Industrial Telemetry
Collect data from serial-connected sensors and controllers and transmit it securely over cellular networks. Remote configuration minimizes deployment and maintenance costs.
Environmental Monitoring
Support continuous data transmission for environmental and utility monitoring projects. eSIM eliminates physical SIM handling and enables scalable remote management.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, itโs impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

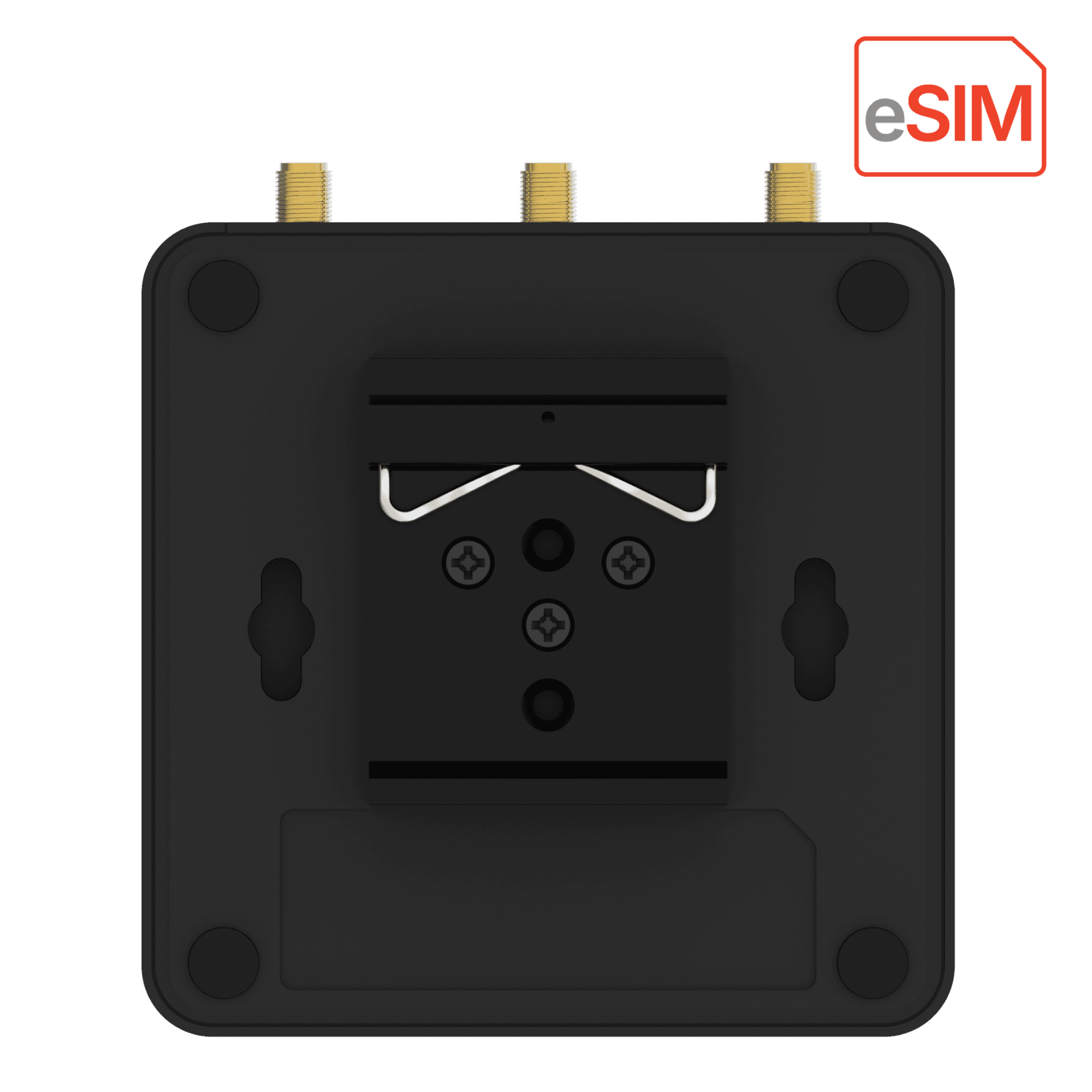

DIN Rail Mount

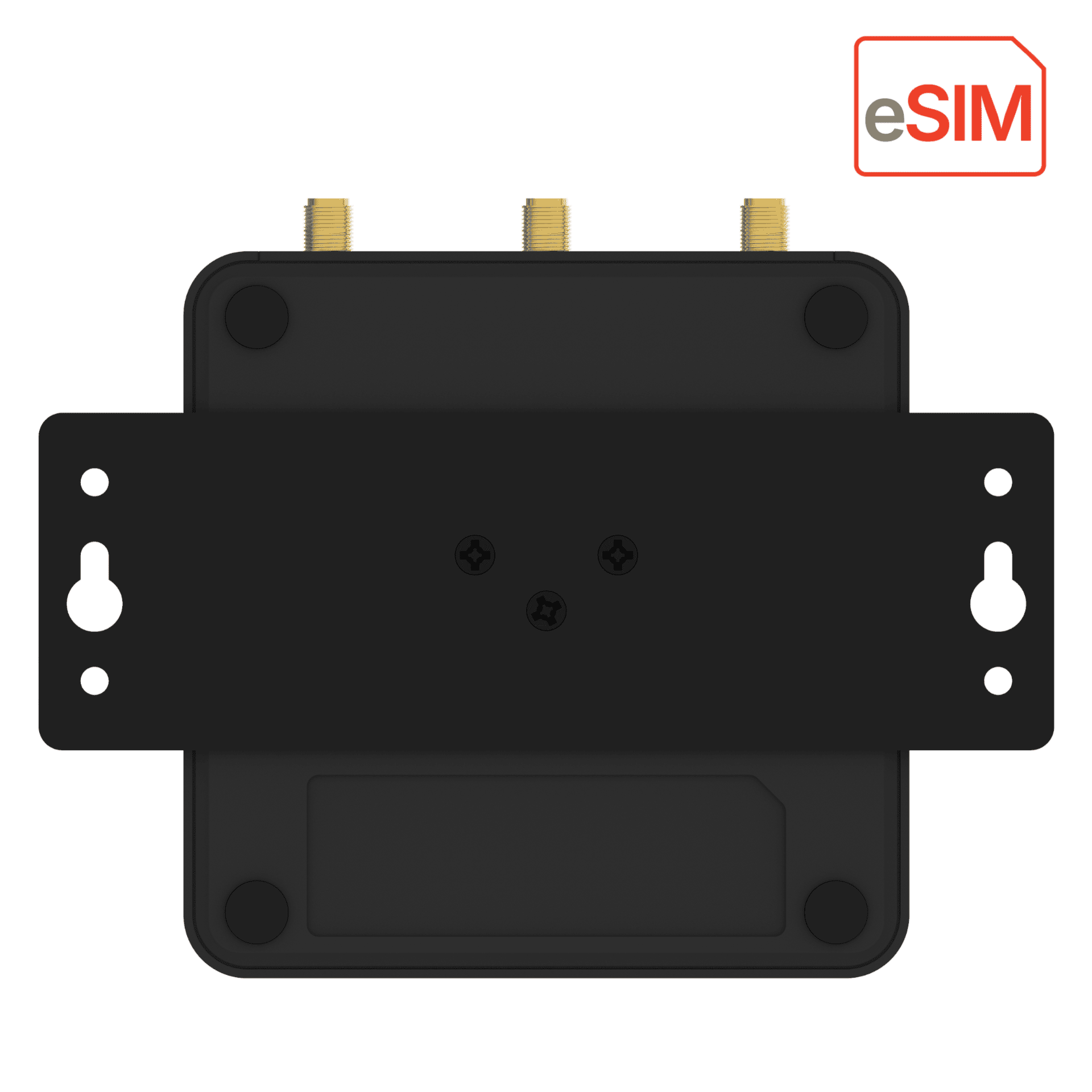

Wall Mount
System Architecture
|
Operating System |
RobustOS |
|
CPU |
MIPS, 650 MHz |
|
RAM |
128MB |
|
Flash |
16MB |
Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 (MAIN + DIV) |
|
Connector |
SMA-K |
|
SIM |
1x eSIM/eUICC (MFF2) |
Ethernet
|
Ethernet Ports |
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
|
Magnet Isolation Protection |
1.5 KV |
Serial Port
|
Serial Ports |
1 x RS-232 OR 1 x RS-485 (Hardware configuration) |
|
Connector |
3-pin 3.5 mm female socket |
|
Baud Rate |
300 bps ~ 115200 bps |
Wi-Fi
|
Wi-Fi Antennas |
2 (1 x external antenna + 1 x PCB antenna) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 b/g/n, supporting AP and Client modes |
|
Frequency Bands |
2.412 โ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Encryption |
64/128 AES, TKIP |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN |
|
Watchdog |
Built-in |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm female socket |
|
Input Voltage |
12/24 V DC, 9 ~ 36 V DC Reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 1.5 W@12 V |
|
Recommended Power Supply |
12 V DC/1.0 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Plastic, 150g |
|
Dimensions |
31.5 x 91.5 x 91.5 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-25 – +75 ยฐC |
|
Storage Temperature |
-40 – +85 ยฐC |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, WireGuard |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++ |
|
Flash available for SDK |
4MB |
|
RAM available for SDK |
64MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0, WEEE |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
R1511e-4L-A35GL-A Global |
4G LTE FDD: 3G: B1/2/4/5/6/8/19 |
CE, UKCA, RCM, |
A006100755 |
1 x R1511e Router |
|
R1511e-4L-A35GL-A Global |
4G LTE FDD: 3G: B1/2/4/5/6/8/19 |
CE, UKCA, RCM, |
A006100756 |
1 x R1511e Router |
|
R1511e-4L-A35GL-B Global |
4G LTE FDD: 3G: B1/2/4/5/6/8/19 |
CE, UKCA, RCM, |
A006100758 |
1 x R1511e Router |
|
R1511e-4L-A35GL-B Global |
4G LTE FDD: 3G: B1/2/4/5/6/8/19 |
CE, UKCA, RCM, |
A006100759 |
1 x R1511e Router |
NOTE:
1. For more information about regional & carrier specific variants please contact us
