Robustel MG460 Gateway
IEC 61162-460 maritime cyber gateway—DNV-approved 460/460-Wireless.
The Robustel MG460 Gateway is a maritime cyber-security gateway built for IEC 61162-460 domains and engineered to help owners comply with IACS UR E26/E27 for ship and on-board system cyber resilience. It is the world’s first product to receive DNV type approvals as both “460-Gateway” and “460-Wireless Gateway,” providing a certified vessel-to-shore security boundary for navigation and radio-communication networks.
A multi-layer inspection firewall with per-interface rules, an isolated DMZ for controlled file/services exchange, and VPN tunnels enable encrypted, auditable transfers without exposing critical bridge systems.

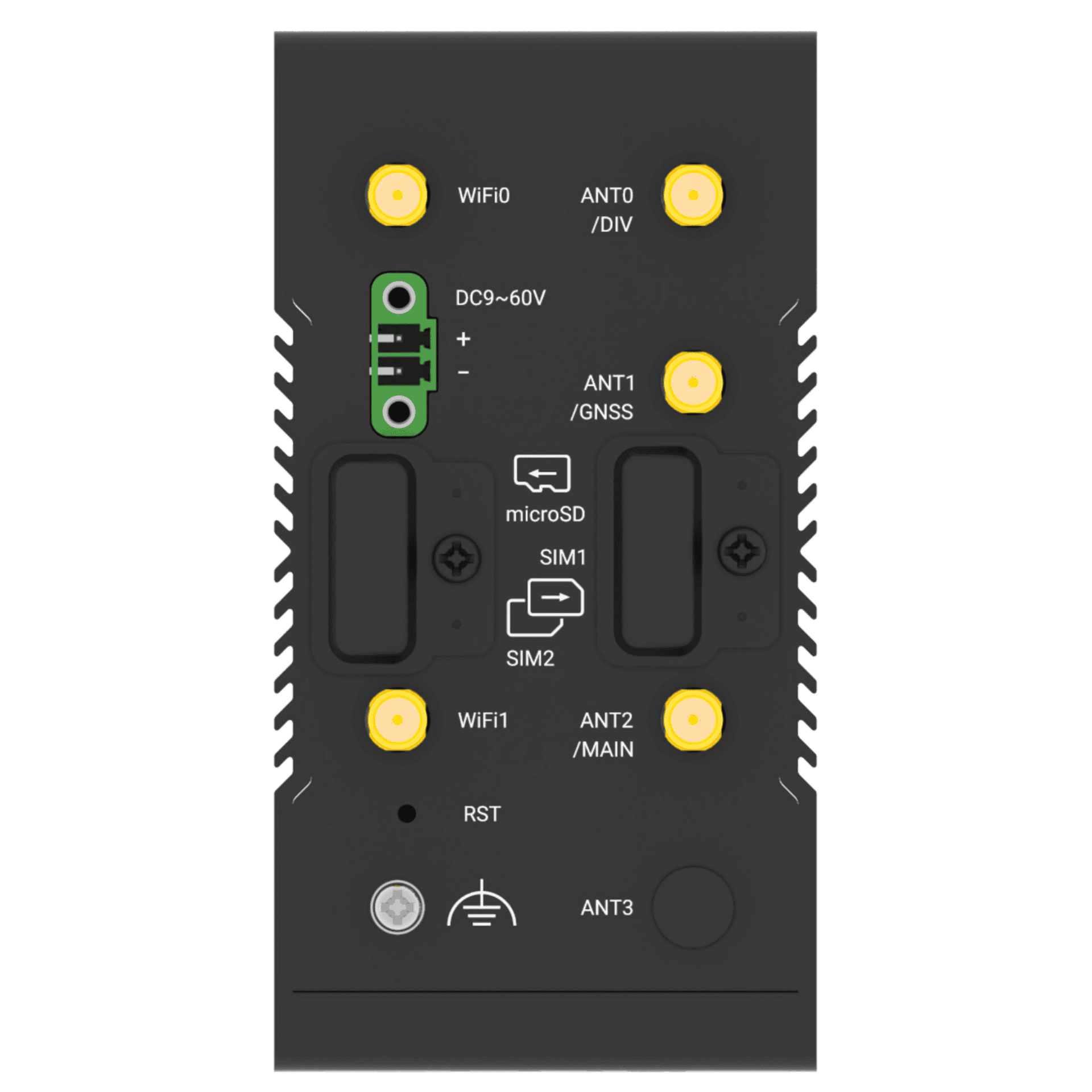

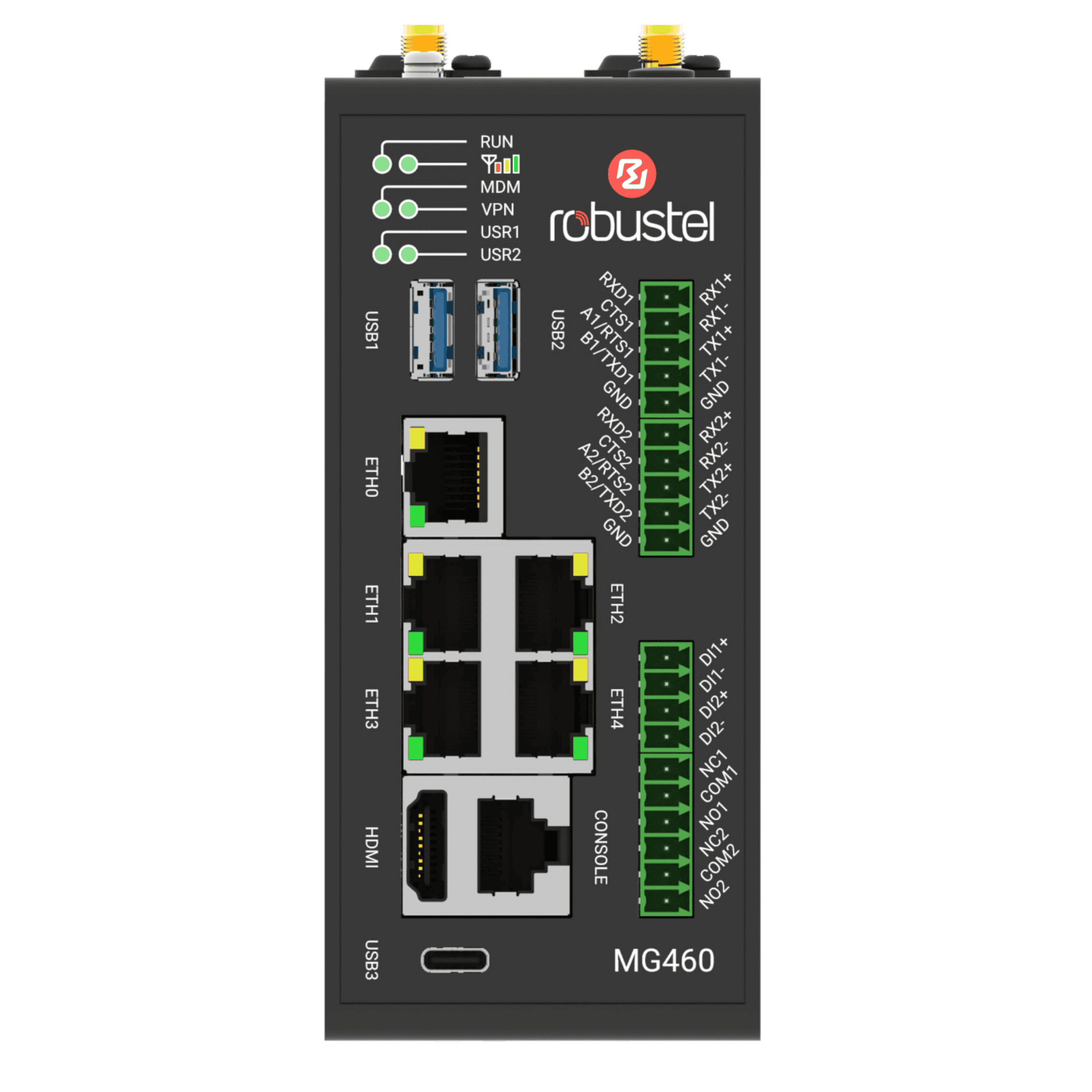

Hardware fit includes 5×Gb ETH (each with its own firewall), 2×RS-232/422/485, 2×DI + 2×relay outputs, 3×USB, microSD for extended logging, and dual-SIM for resilient comms.
The MG460 aligns with UR E26/E27 (mandatory for newbuilds from 1 July 2024) and leverages IEC 61162-460 Ed. 3 cross-references to those requirements making it a standards-anchored choice for modern fleets.
DUAL-SIM CELLULAR
5G, 4G/LTE, 3G & 2G with Dual-SIM Card support for failover
COMPLIANCE READY
DNV Certification, IEC 61162-460 & IACS UR E26/E27
INTERFACES
4x WAN + 1x LAN or 5x LAN, RS-232, RS-422, RS-485, Relay
OPERATING SYSTEM
MG Core – Full Linux Debian Operating System
RCMS ON-BOARD
RCMS Cloud device management enabled
Example MG460 Gateway Use Cases
Secure VDR & Navigational Data
Export VDR extracts and approved bridge data to shore over encrypted tunnels. The DMZ stages files; per-interface firewalls keep IEC 61162-460 domains isolated (UR E26/E27 alignment).
ECDIS Charts & Distribution
Deliver chart updates and signed firmware from shore to onboard servers through a controlled DMZ. Policy rules and audit logs protect critical networks during update windows.
IMO DCS & CII Reporting
Collect and stage fuel oil consumption and CII metrics onboard; export via encrypted tunnels to shore/regulators, aligning with IEC 61162-460 and IACS UR E26/E27.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

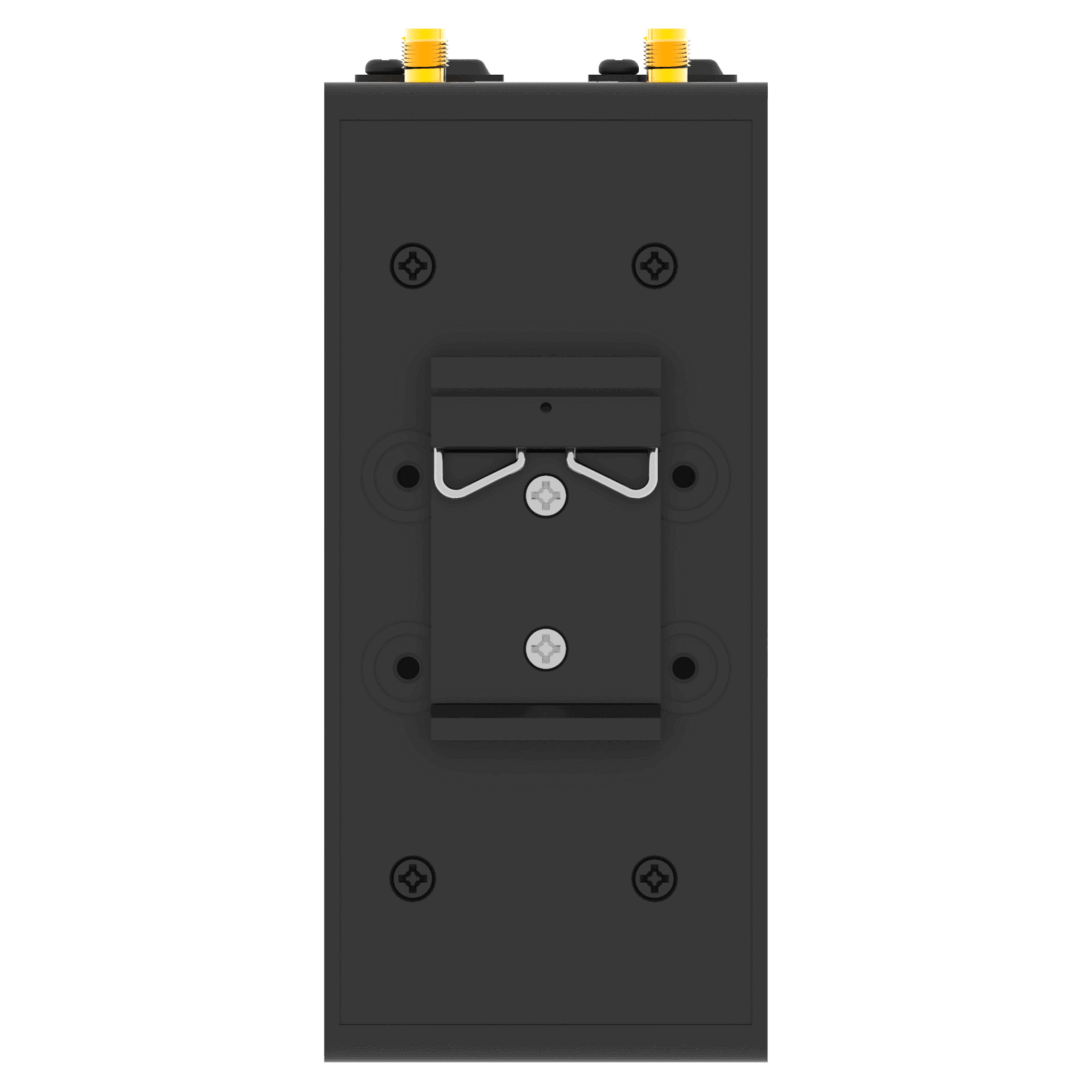

DIN Rail Mount

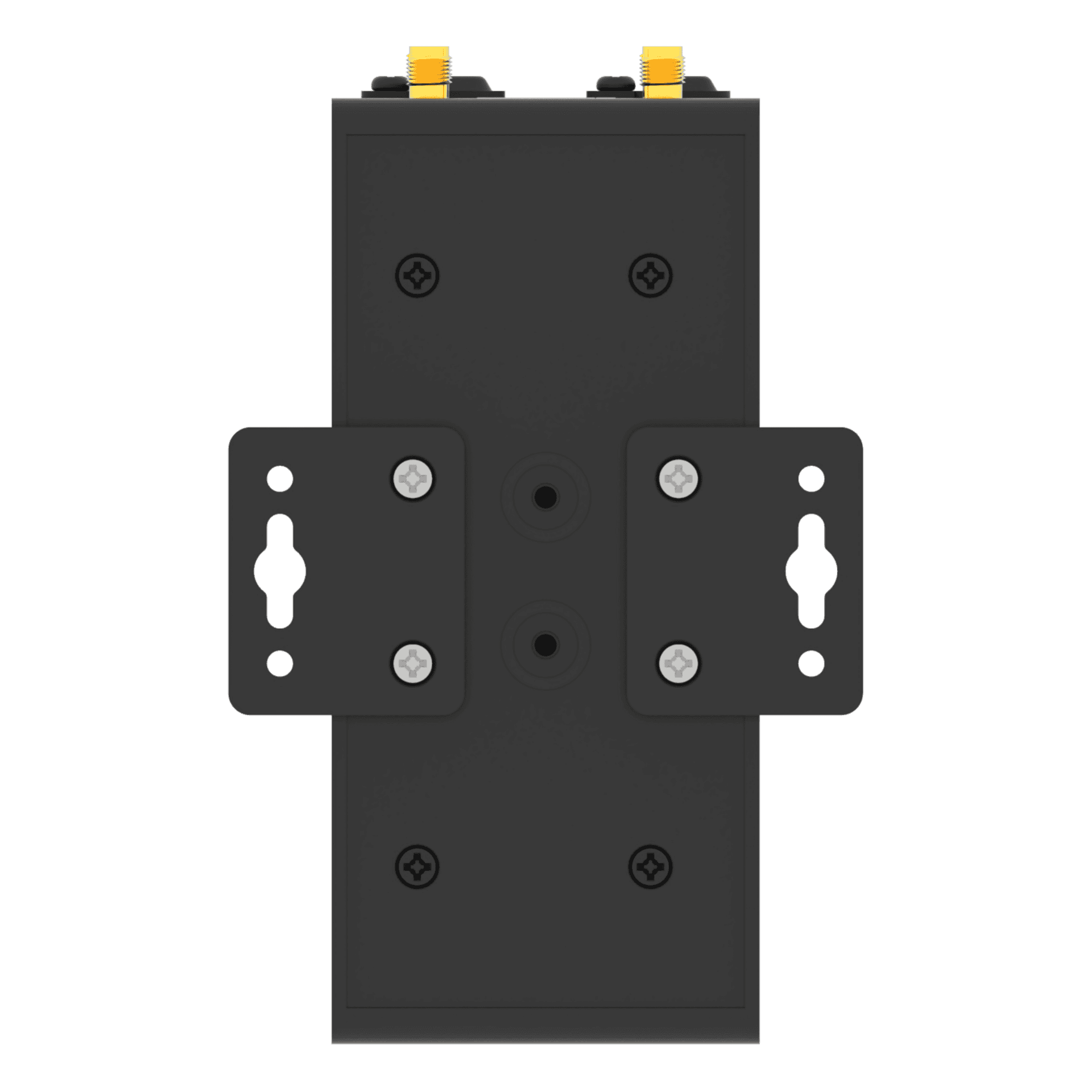

Wall Mount
System Architecture
|
Operating System |
MG Core |
|
CPU |
Quad core Cortex-A53, 1.6 GHz |
|
RAM |
4 GB DDR4 |
|
Flash |
64 GB eMMC |
|
NPU |
2.3 TOPS |
Cellular
|
Supported Technologies |
5G, 4G/LTE, 3G, 2G |
|
Antennas |
5G: 4 |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
5 x RJ45, 10/100/1000 Mbps |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
2 x RS-232/RS-422/RS-485 (software configurable) |
|
Connector |
2 x 5-pin 3.5 mm terminal block |
|
ESD Protection |
8 KV air, 4 KV contact |
|
Baud Rate |
300 bps to 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND, CTS, RTS RS-422: RX+, RX-, TX+, TX-, GND RS-485: Data+ (A), Data- (B), GND |
Console Port
|
Console Port |
1 x RS-232 |
|
Connector |
RJ45 |
|
Baud Rate |
115200 bps |
|
Signal Definition |
TXD, RXD, GND |
Digital Input
|
DI Ports |
2 x DI, wet contact |
|
Connector |
4-pin 3.5 mm terminal block |
|
Absolute Maximum VDC |
+30 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2- |
Relay Output
|
Relay Ports |
2 x Relay Output |
|
Connector |
6-pin 3.5 mm terminal block |
|
Absolute Maximum VDC |
+48 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
NC1, NO1, COM1, NC2, NO2, COM2 |
Wi-Fi (Optional)
|
Wi-Fi Antennas |
2 (Wi-Fi 0 + Wi-Fi 1) |
|
Connector |
RP-SMA-K |
|
Standards |
IEEE 802.11a/b/g/n/ac/ax, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
GNSS/GPS (Optional)
|
GNSS Antennas |
5G: N/A |
|
Connector |
SMA-K |
|
Technology |
GPS |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x Signal, 1 x USR, 1 x MDM |
|
Watchdog |
External |
|
USB |
2 x USB 3.0 (HOST), Type A, 5 V, 900 mA 1 x USB 2.0 (OTG), Type C |
|
HDMI |
1 x HDMI 2.0 |
|
SD-Card |
1x MicroSD |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 6.5 W@12 V |
|
Recommended Power Supply |
24 V DC/2 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 649 g |
|
Dimensions |
58 x 111 x 128 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-30 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
62GB |
|
RAM available for SDK |
2.5GB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 3, Air Level 3 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
MG460-A5AAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, RCM, |
A014700006 |
1 x MG460 Gateway (B Code: B014700005) |
|
MG460-A5BAZ-5G-A25GL |
5G NR SA/NSA: n1/2/3/5/7/8/ |
CE, UKCA, RCM, |
A014700007 |
1 x MG460 Gateway (B Code: B014700006) |
|
MG460-A5AAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, RCM, |
A014700004 |
1 x MG460 Gateway (B Code: B014700003) |
|
MG460-A5BAZ-4L-A06GL |
4G LTE FDD: B1/2/3/4/5/7/8/ 3G: B1/2/4/5/6/8/19 2G: B2/3/5/8 |
CE, UKCA, RCM, |
A014700005 |
1 x MG460 Gateway (B Code: B014700004) |
|
MG460-A5ZAZ-NU |
– |
CE, UKCA, RCM, |
A014700002 |
1 x MG460 Gateway (B Code: B014700001) |
|
MG460-A5CAZ-NU |
– |
CE, UKCA, RCM, |
A014700003 |
1 x MG460 Gateway (B Code: B014700002) |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
