Robustel MG460 Forwarder
IEC 61162-460 forwarder for segmented, IACS-aligned vessel networks.
The MG460 Forwarder is a DNV-certified, IEC 61162-460 maritime forwarder that standardises inside-the-vessel data exchange while preserving strict network separation. It bridges the 460-network and other controlled ship networks (e.g., IAS) using VLAN-based segmentation, per-port firewalls, traffic-priority management, and IGMP proxy for efficient multicast—so critical navigation and control traffic remains protected and predictable.
Designed for modern compliance frameworks, the Forwarder is built for IEC 61162-460 (Ed.3) domains and helps owners align with IACS UR E26 (ship cyber resilience) and UR E27 (on-board systems) when deployed within a compliant architecture. Monitoring and alerts support auditability, while RS-232/422/485 and DI/relay I/O simplify integration with legacy equipment.
Pair it with the MG460 Gateway to complete the vessel-to-shore path: keep shipboard domains segmented on board, then export only approved data through a policy-controlled DMZ and encrypted tunnels for shore workflows. Final acceptance remains at the discretion of your class society.
DNV 460-Forwarder
Certified role for segmented, auditable shipboard networking.
IEC 61162-460
Ethernet interconnection with elevated safety/security for bridge networks.
IACS UR E26/E27
Forwarder helps support alignment when used in a compliant vessel architecture.
INTERFACES
4x WAN + 1x LAN or 5x LAN, RS-232, RS-422, RS-485, Relay
OPERATING SYSTEM
MG Core – Full Linux Debian Operating System
Example MG460 Forwarder Use Cases
Bridge to IAS Data Exchange
Share only approved signals (e.g., engine RPM, tank levels) between the 460 bridge domain and IAS using VLANs and per-port firewalls maintaining isolation while enabling operations.
Navigation Data Share with QoS
Distribute IEC 61162-460 multicast (GNSS, gyro, AIS) to ECDIS, conning, and VDR via IGMP proxy and traffic prioritisation avoiding flooding and preserving timing.
Audit-Ready 460 Backbone
Implement monitored, alarmed 460 domains with logging for class/cyber audits. Pair with the MG460 Gateway to hand off only approved datasets to shore securely.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
Close the loop: Pair with the MG460 Gateway
Complete your IEC 61162-460 architecture add the MG460 Gateway for secure, policy-controlled vessel-to-shore transfer.
Product Mounting Options
Desktop Mount

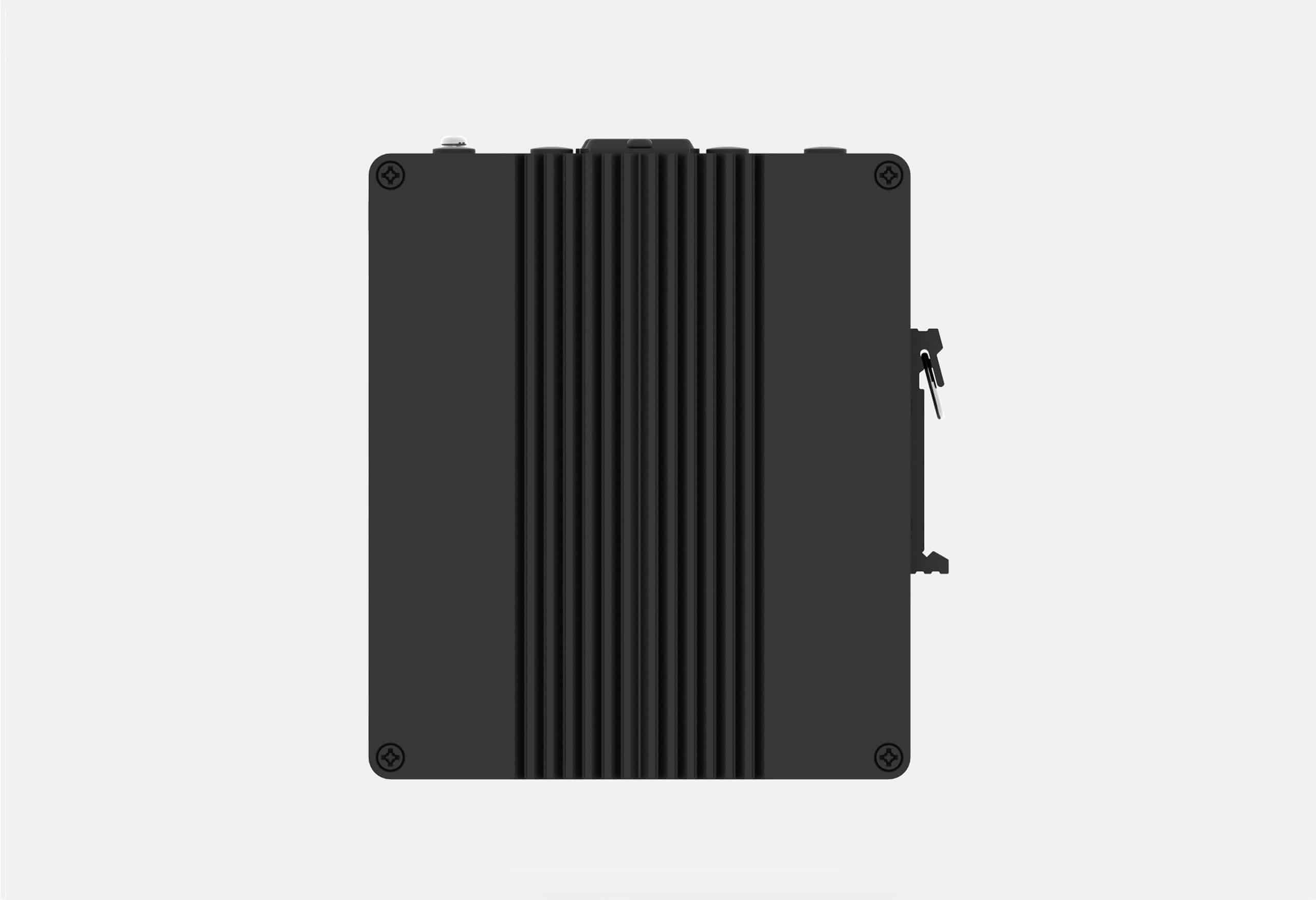

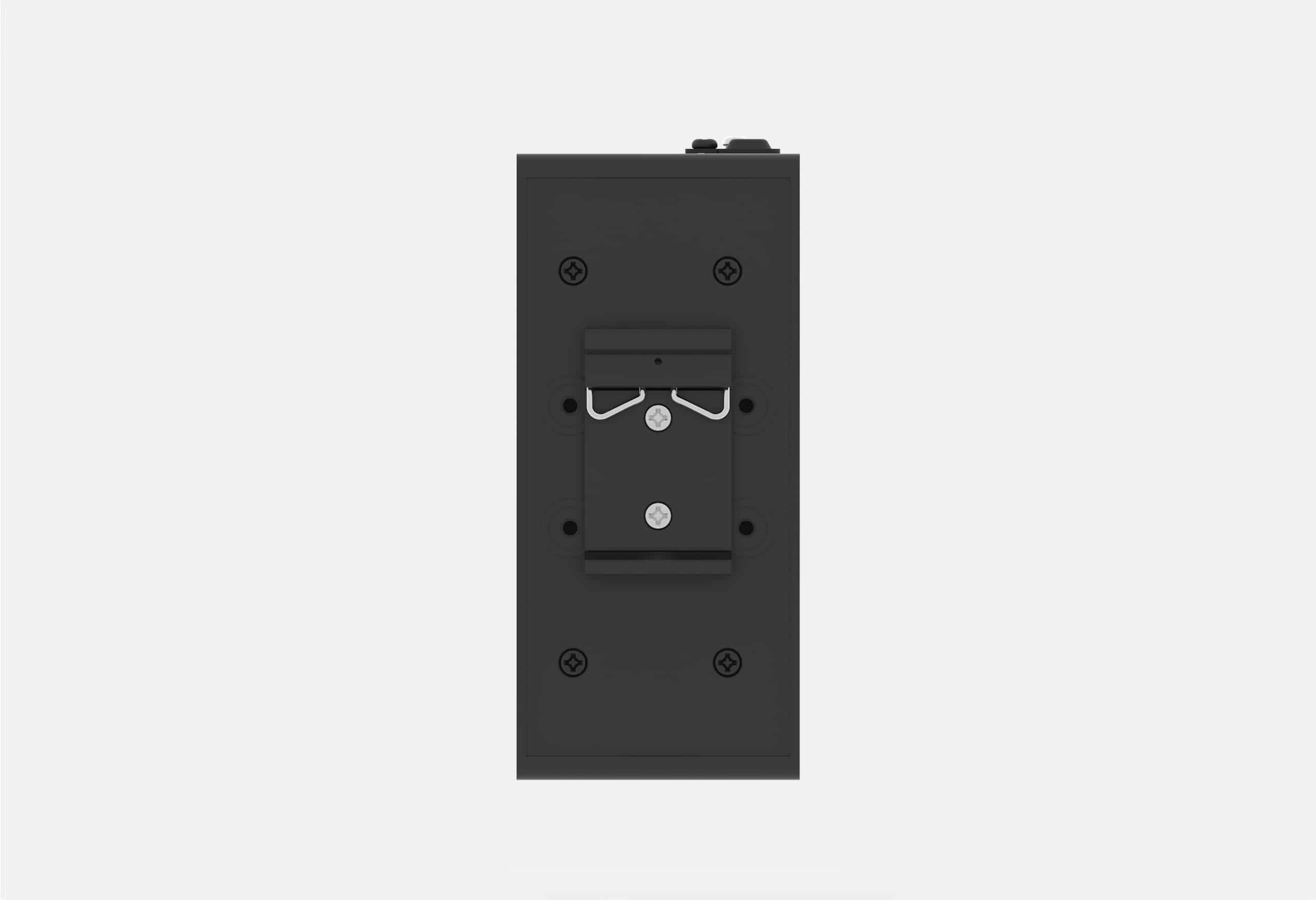

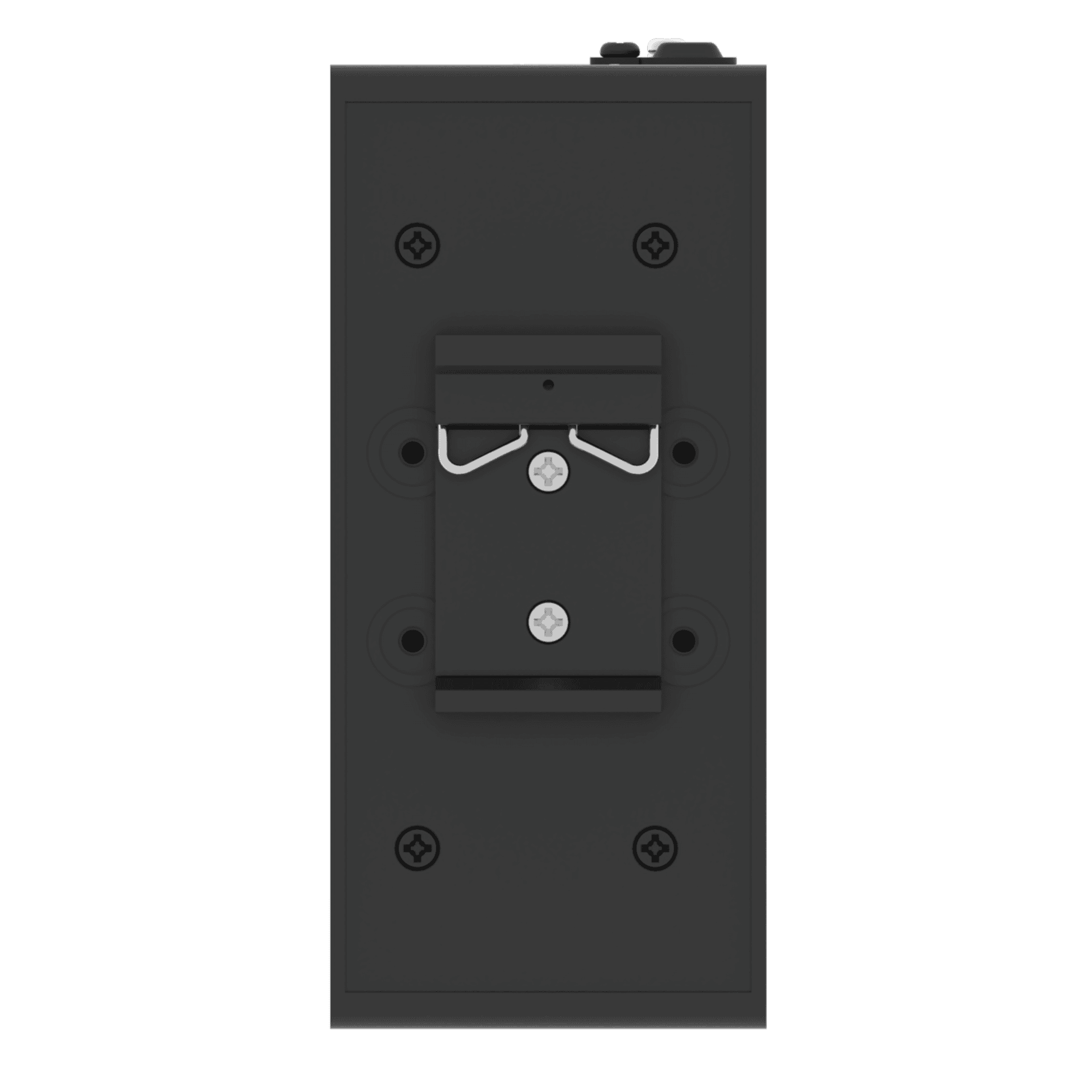

DIN Rail Mount

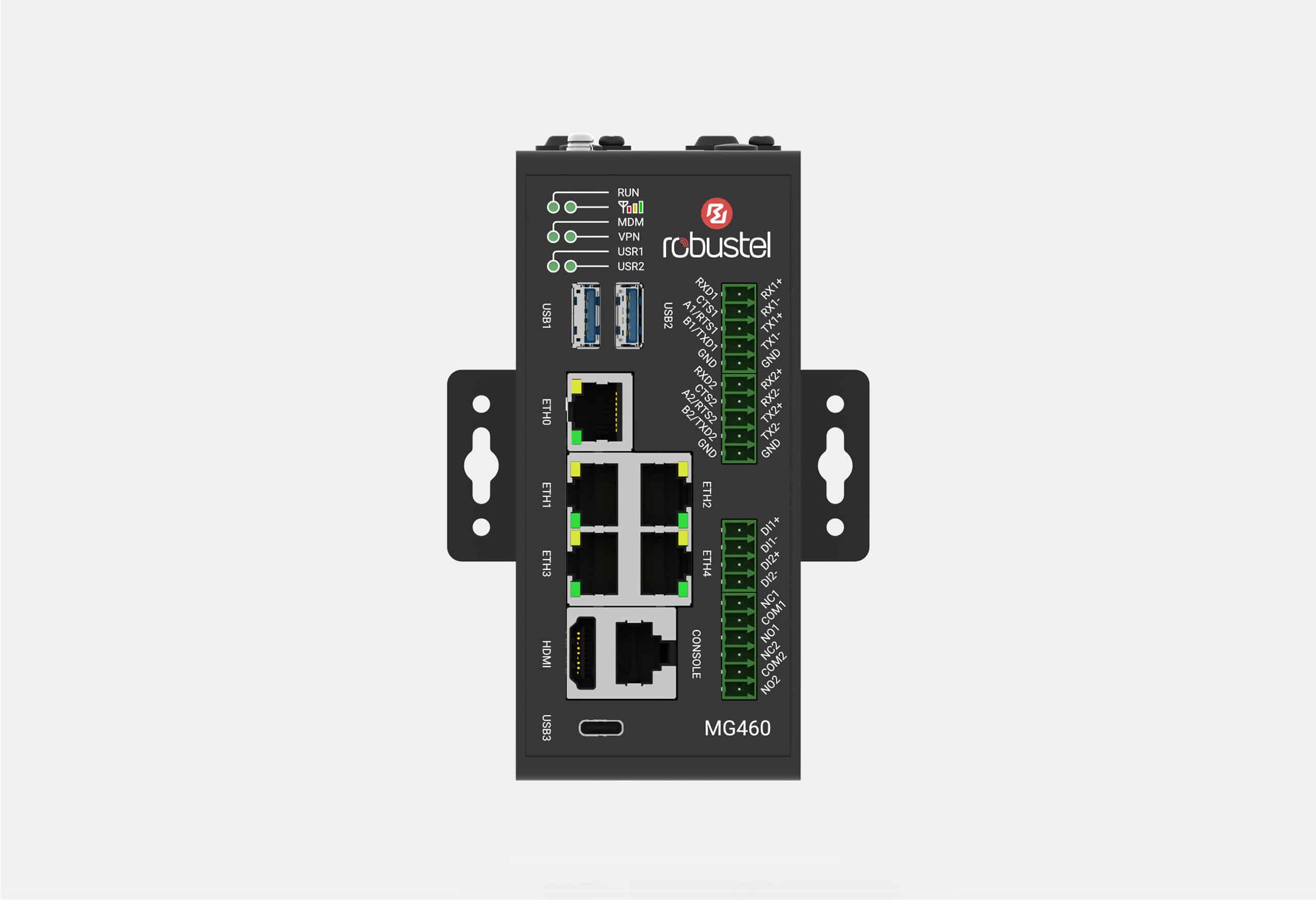

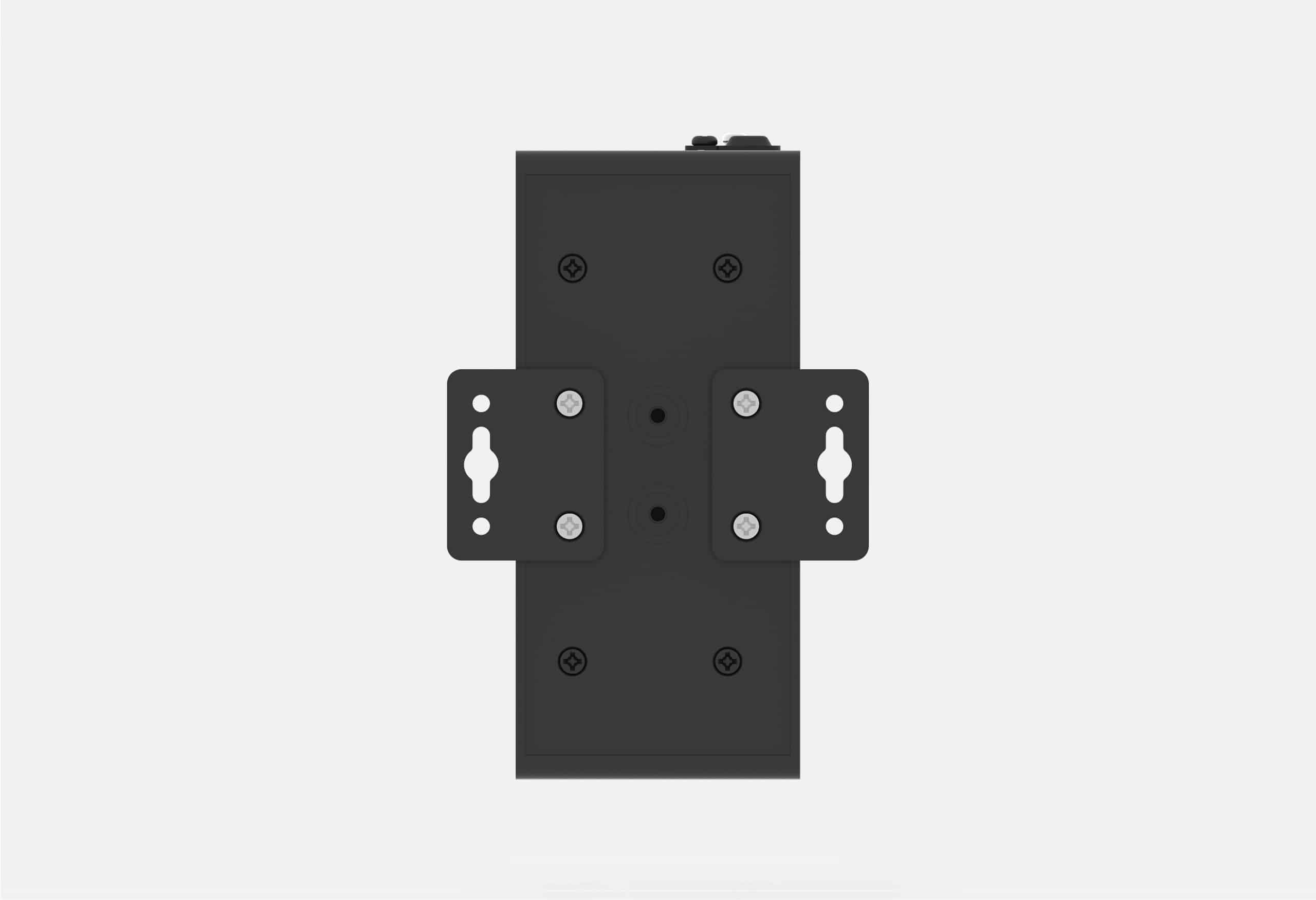

Wall Mount
System Architecture
|
Operating System |
MG Core |
|
CPU |
Quad core Cortex-A53, 1.6 GHz |
|
RAM |
4 GB DDR4 |
|
Flash |
64 GB eMMC |
Ethernet
|
Ethernet Ports |
5 x RJ45, 10/100/1000 Mbps |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
2 x RS-232/RS-422/RS-485 (software configurable) |
|
Connector |
2 x 5-pin 3.5 mm terminal block |
|
ESD Protection |
8 KV air, 4 KV contact |
|
Baud Rate |
300 bps to 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND, CTS, RTS RS-422: RX+, RX-, TX+, TX-, GND RS-485: Data+ (A), Data- (B), GND |
Console Port
|
Console Port |
1 x RS-232 |
|
Connector |
RJ45 |
|
Baud Rate |
115200 bps |
|
Signal Definition |
TXD, RXD, GND |
Digital Input
|
DI Ports |
2 x DI, wet contact |
|
Connector |
4-pin 3.5 mm terminal block |
|
Absolute Maximum VDC |
+30 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2- |
Relay Output
|
Relay Ports |
2 x Relay Output |
|
Connector |
6-pin 3.5 mm terminal block |
|
Absolute Maximum VDC |
+48 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
NC1, NO1, COM1, NC2, NO2, COM2 |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x ALT, 4 x USR |
|
Watchdog |
External |
|
USB |
2 x USB 3.0 (HOST), Type A, 5 V, 900 mA 1 x USB 2.0 (OTG), Type C |
|
HDMI |
1 x HDMI 2.0 |
|
SD-Card |
1x MicroSD |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
24 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 8.76 W@24 V |
|
Recommended Power Supply |
24 V DC/2 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 649 g |
|
Dimensions |
58 x 111 x 128 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-30 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
6.5GB |
|
RAM available for SDK |
2.5GB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 3, Air Level 3 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-11 (Dips) |
Available Models
|
Model |
Supported Frequency Bands |
Certifications |
Order Code |
Package Contents |
|
MG460-A5ZAZ-NU |
– |
CE, UKCA, RCM, CB, |
A014700010 |
1 x MG460 Forwarder (B Code: B014700009) 1 x DIN Rail Mounting Kit |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
