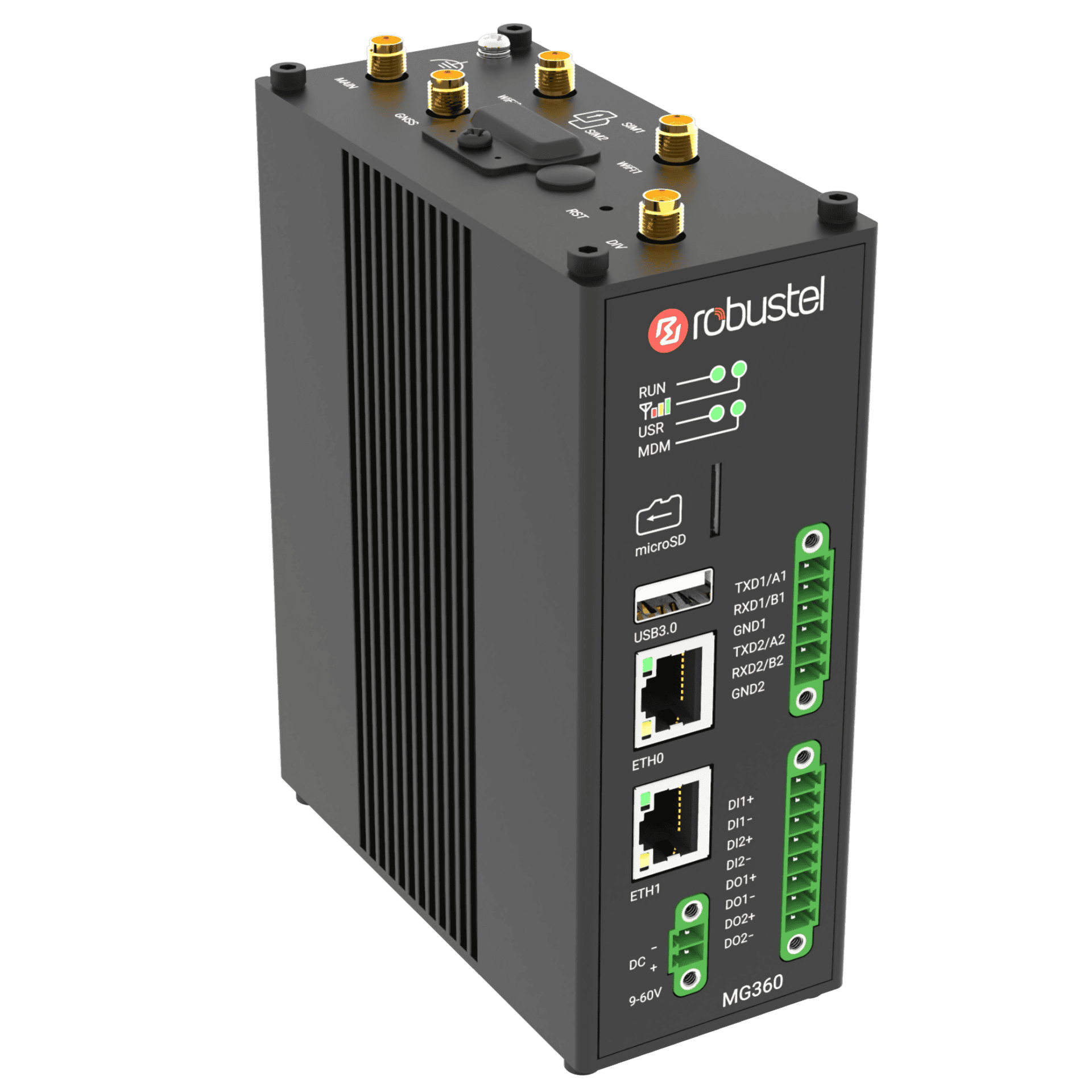

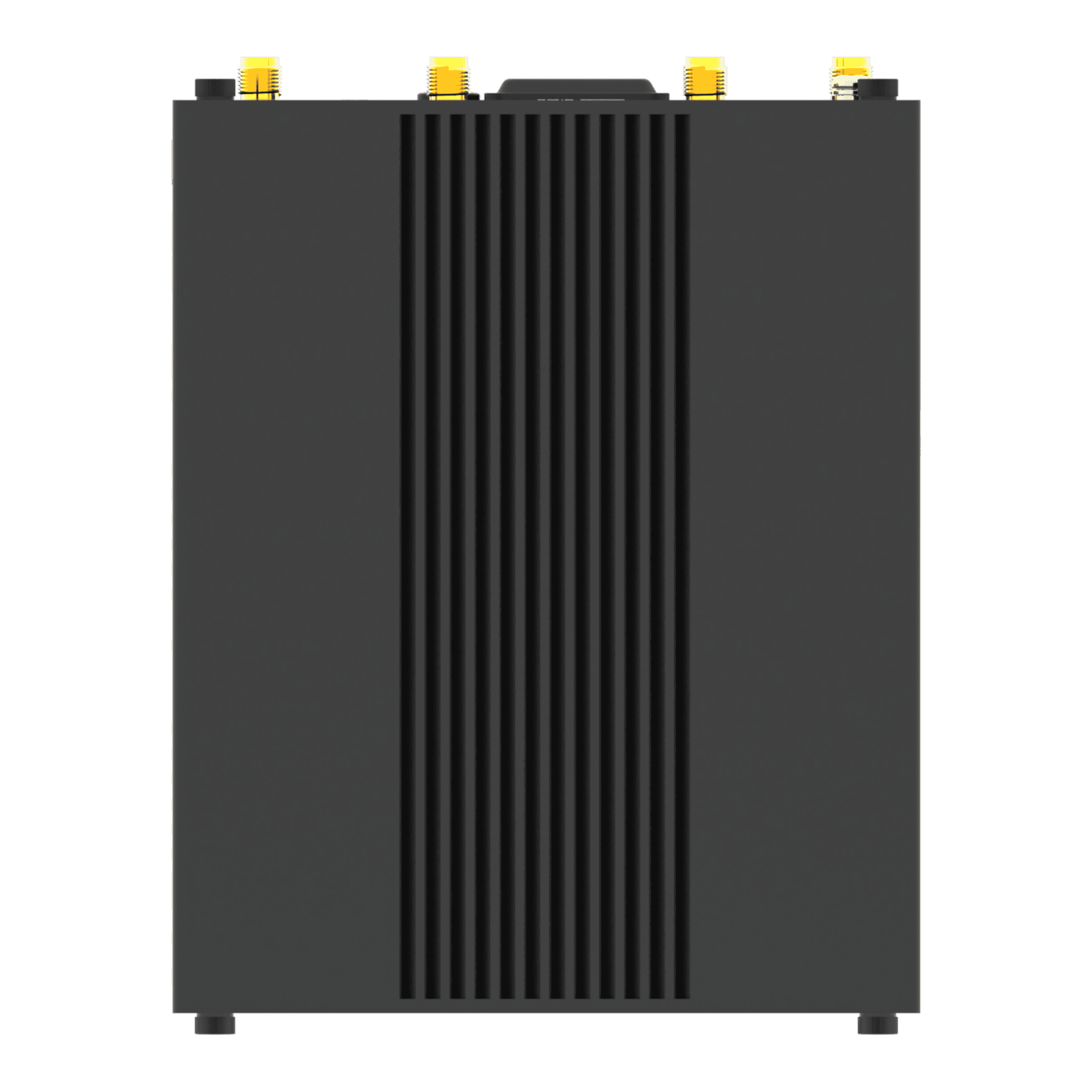

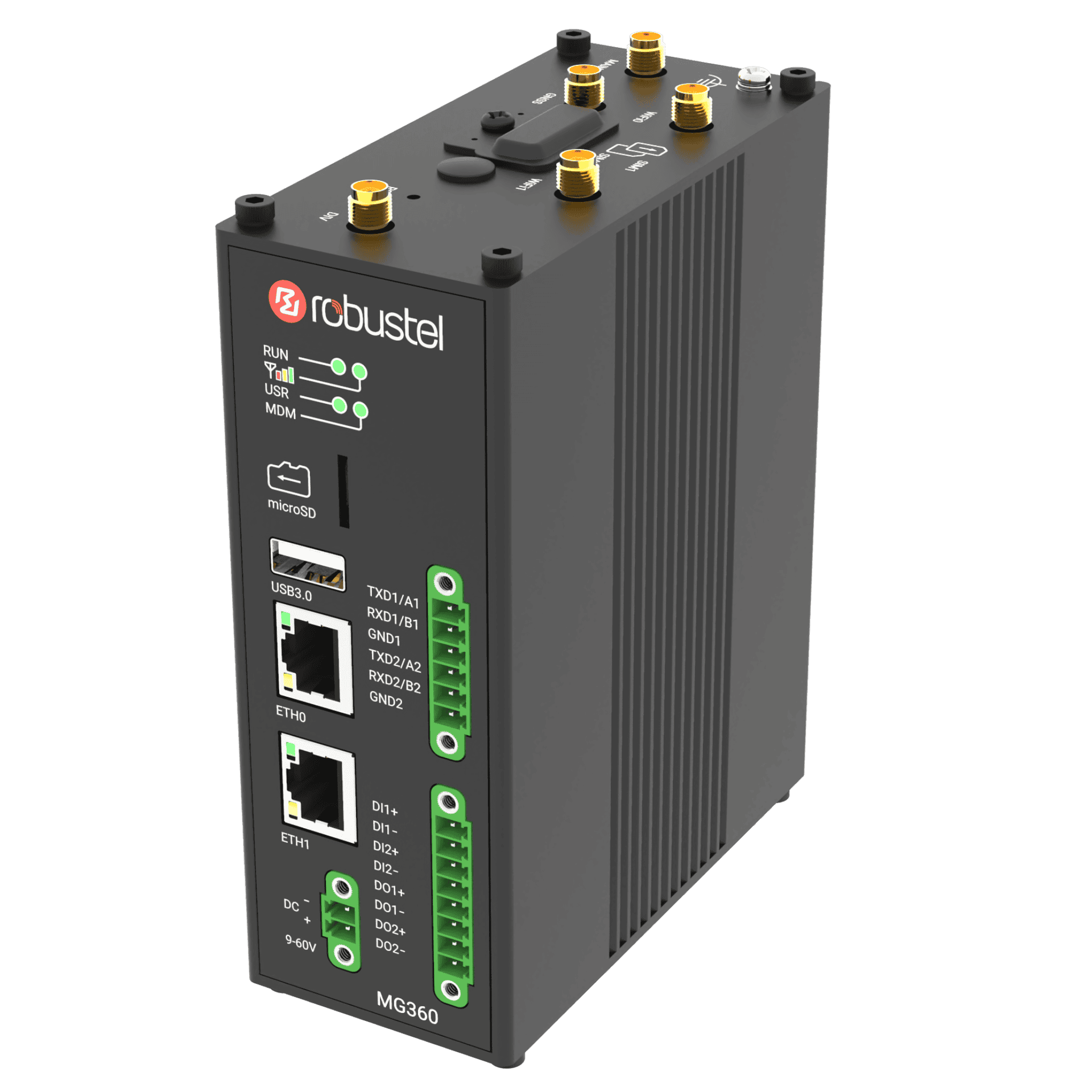

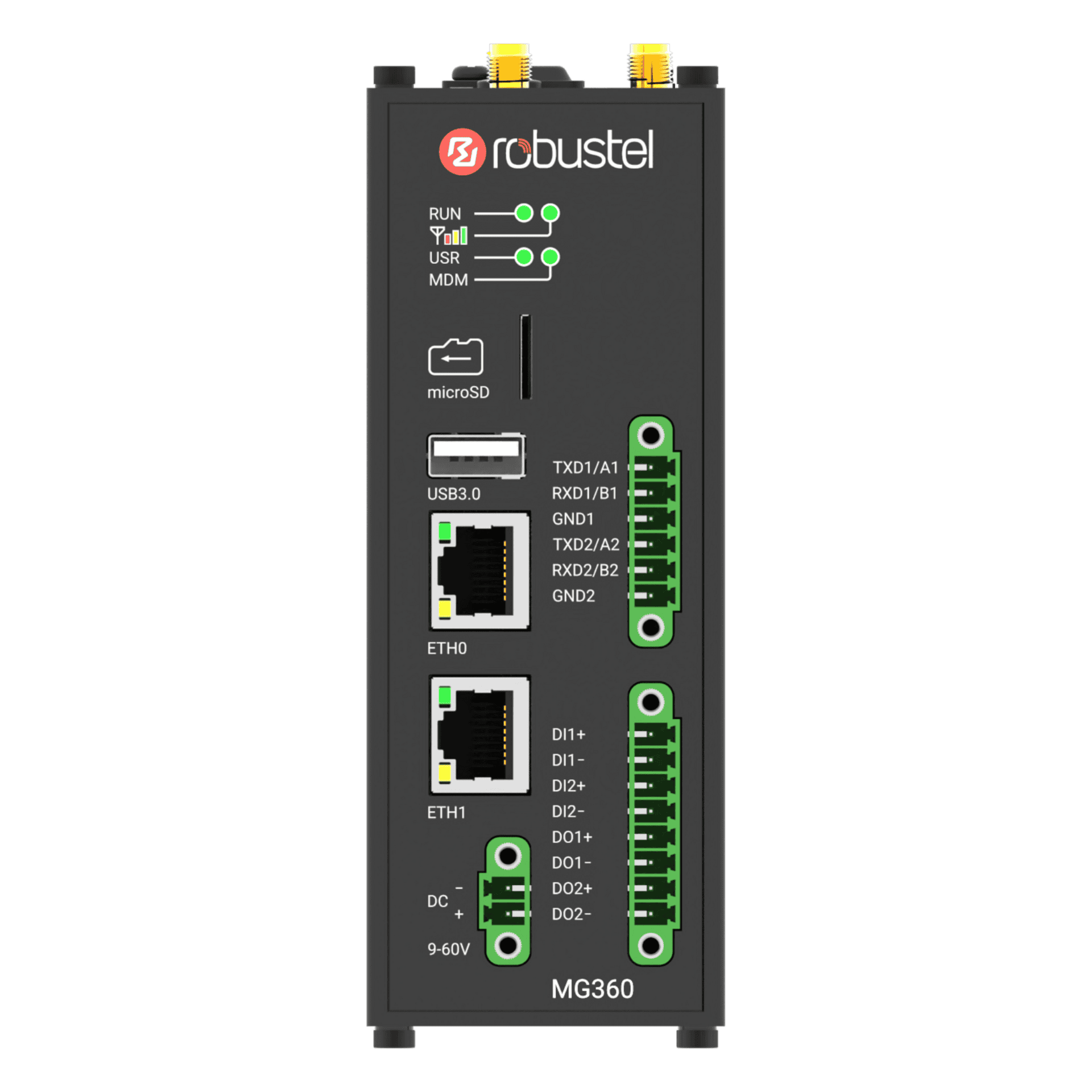

Robustel MG360
IEC 60945-compliant maritime gateway for secure vessel-to-cloud data exchange
The Robustel MG360 is an IEC 60945-compliant maritime gateway purpose-built to move data securely between shipboard networks and shore. Designed for the bridge environment, it combines a hardened enclosure with dual-SIM 4G/3G/2G backhaul and per-interface firewalls to segment navigational/OT networks from external links.
A built-in DMZ supports controlled file transfer and application services, while VPN tunnels provide encrypted remote access for audits, updates, and support—without exposing critical systems. Under the hood, a quad-core 1.6 GHz CPU with 16 GB eMMC runs a Debian Linux environment for edge applications and logging. Integration is straightforward: 2×GbE (PoE-capable), 2×RS-232/485, and 2×DI + 2×DO connect common marine devices; a microSD slot enables extended log retention and evidence capture. Fleet operations scale through RCMS and RobustVPN for policy-driven access and centralized monitoring.
In short: a rugged, standards-aligned gateway that prioritizes isolation, encryption, and operational control for modern vessels.
DUAL-SIM CELLULAR
4G/LTE, 3G & 2G with Dual-SIM Card support for failover
IEC 60945
IEC 60945-compliant for vessel-to-cloud communications
INTERFACES
1x WAN + 1x LAN or 2x LAN, RS-232, RS-485, 2x DI/DO
OPERATING SYSTEM
MG Core – Full Linux Debian Operating System for Vessels
RCMS ON-BOARD
RCMS Cloud device management enabled
Example MG360 Use Cases
Port/Coastal Data Offload
Upload VDR extracts, engine and emissions logs to shore over cellular; DMZ staging and per-interface firewalls isolate bridge networks; VPN ensures encrypted, auditable transfer.

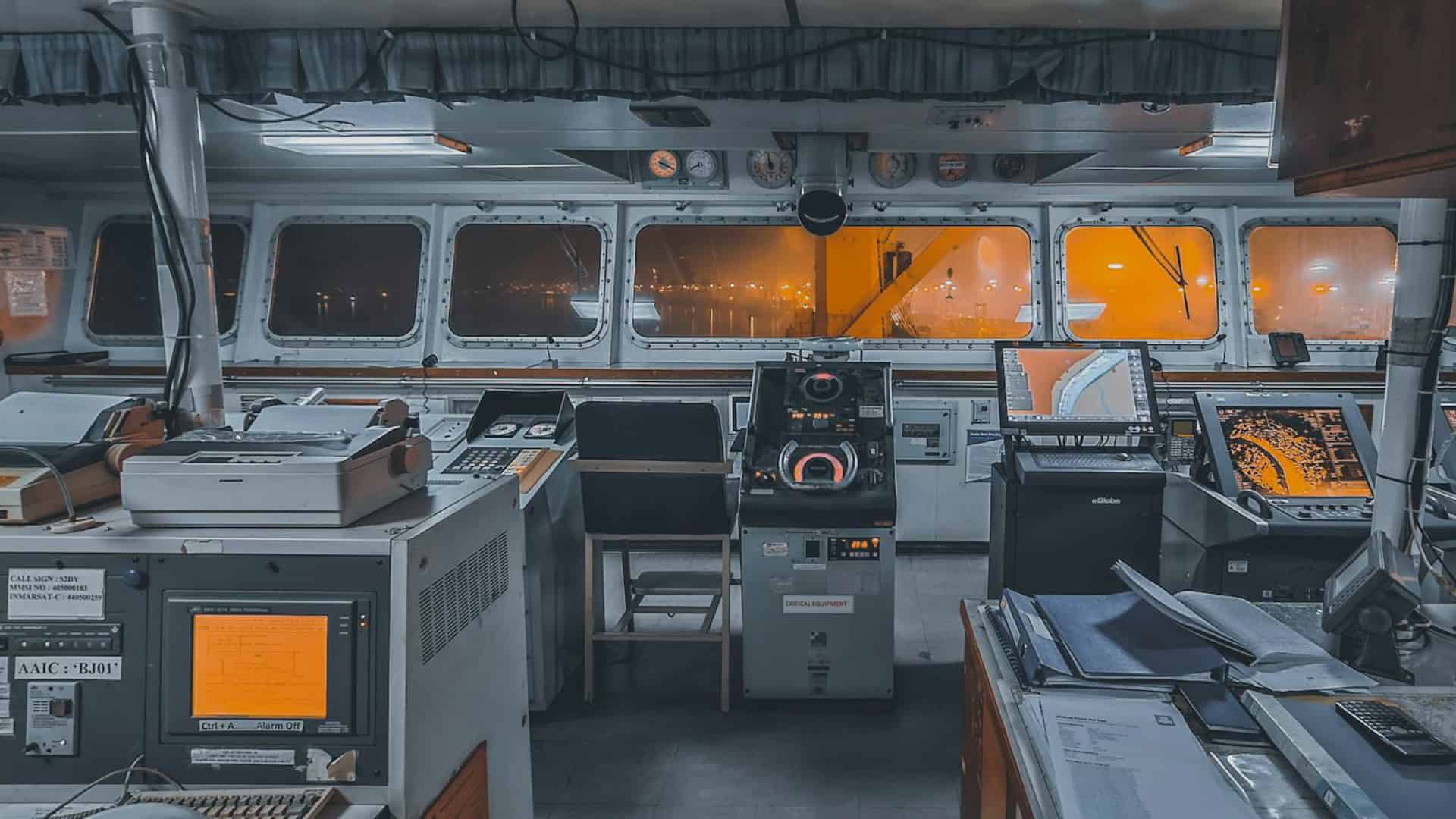

Predictive Maintenance
Deliver ECDIS chart updates and approved firmware from shore to onboard servers via the DMZ; VPN access and policy rules protect navigational networks during updates.
Docked Vessel Audit & Support
Enable time-bound, encrypted access for class, vendor, or IT audits; segregate traffic with per-port firewalls and log sessions, keeping critical systems off the public WAN.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
Product Mounting Options
Desktop Mount

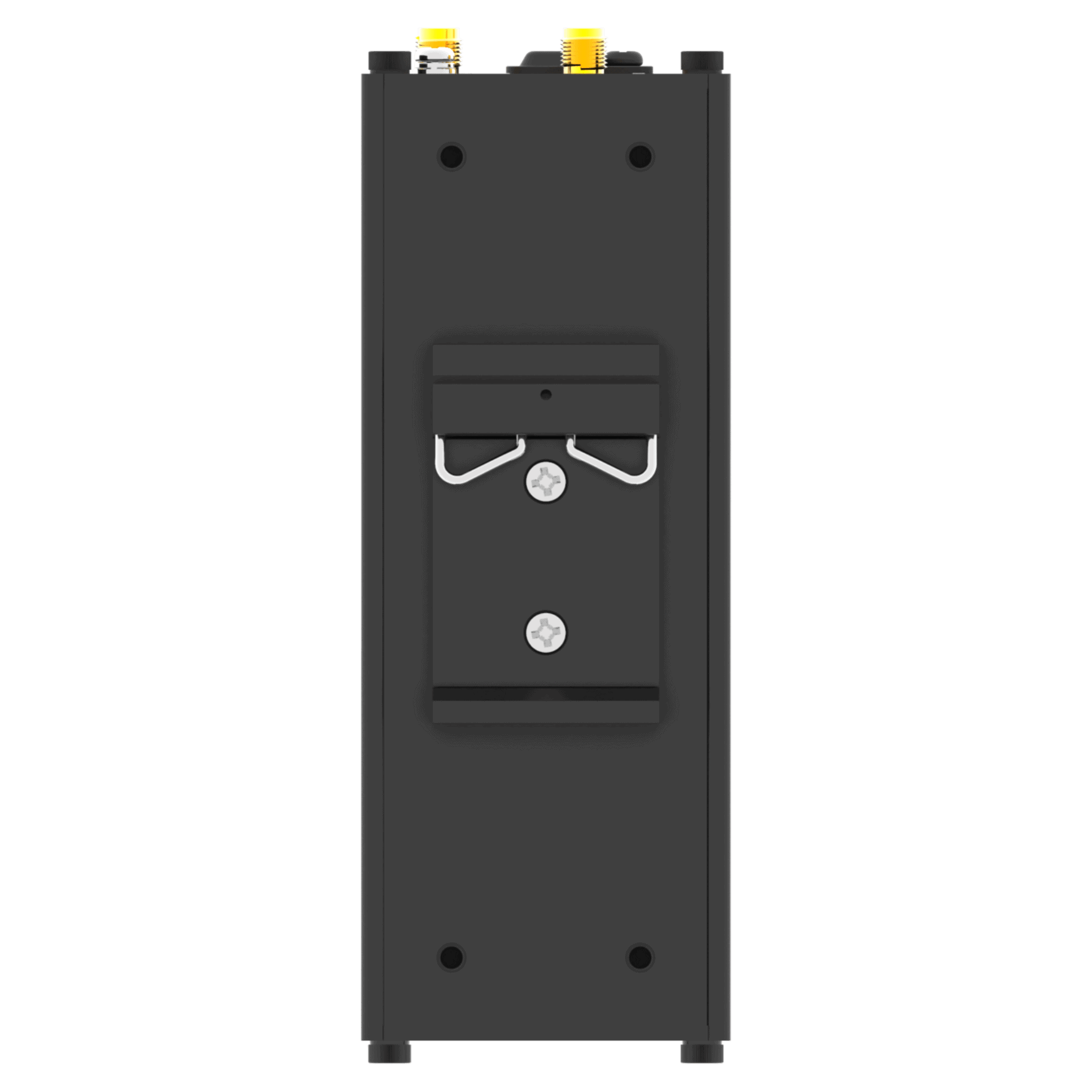

DIN Rail Mount
Wall Mount
System Architecture
|
Operating System |
MG Core |
|
CPU |
Quad core Cortex-A53, 1.6 GHz |
|
RAM |
4 GB DDR4 |
|
Flash |
64 GB eMMC |
|
NPU |
2.3 TOPS |

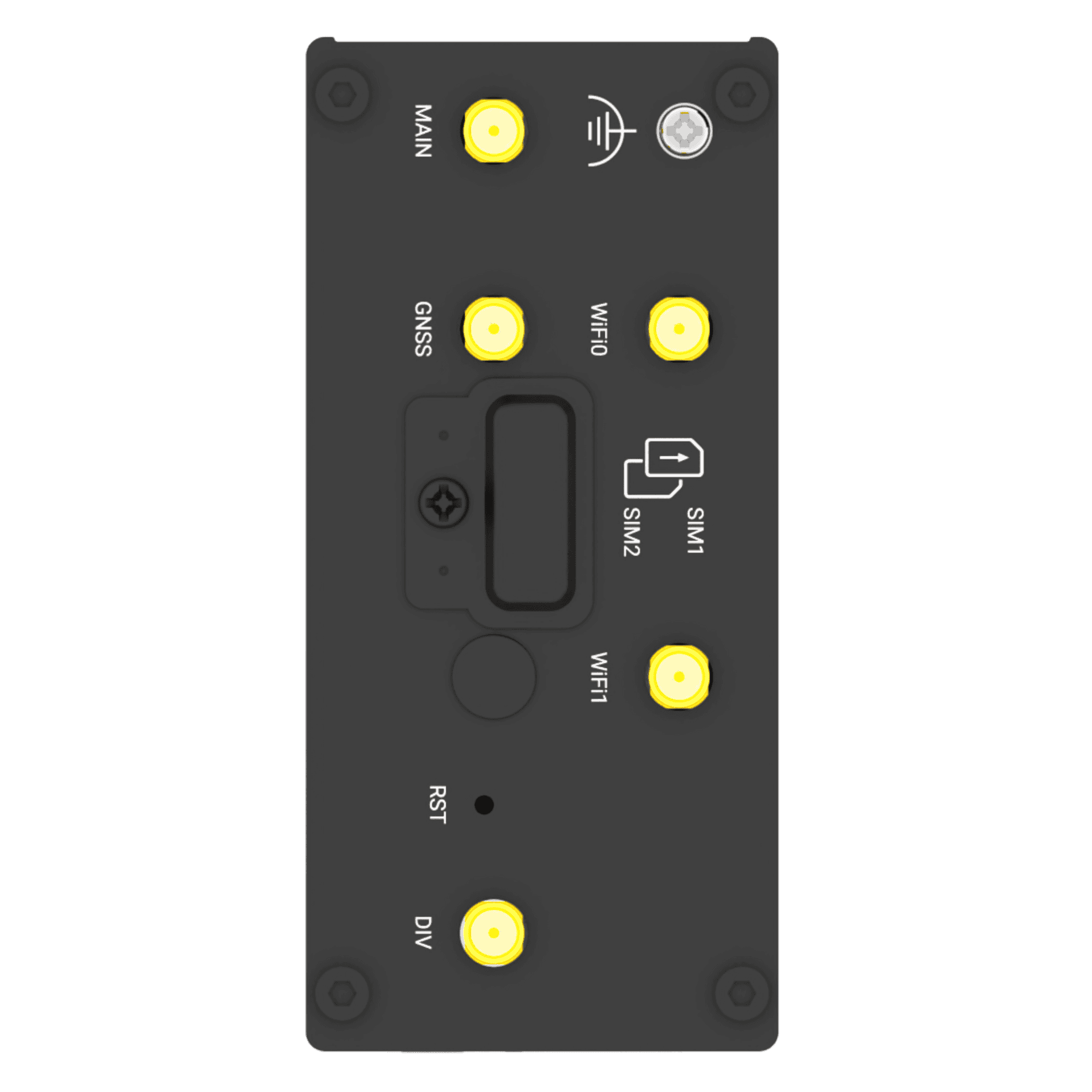

Cellular
|
Supported Technologies |
4G/LTE, 3G, 2G |
|
Antennas |
2 |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
2 x RS-232/RS-485 (software configurable) |
|
Connector |
6-pin 3.5 mm terminal block with lock |
|
ESD Protection |
8 KV air, 4 KV contact |
|
Baud Rate |
300 bps to 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
|
DI/DO Ports |
2 x DI + 2 x DO, wet contact |
|
Connector |
8-pin 3.5 mm terminal block with lock (DI/DO) |
|
Absolute Maximum VDC |
+30 V DC |
|
Absolute Maximum ADC |
100 mA |
|
Signal Definition |
DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi
|
Wi-Fi Antennas |
2 (Wi-Fi 0 + Wi-Fi 1) |
|
Connector |
RP-SMA-K |
|
Standards |
802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
|
Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
|
Security |
WPA, WPA2, WEP, WPA3 |
|
Encryption |
AES, TKIP, WEP64 |
Bluetooth (Optional)
|
Bluetooth Antennas |
1 (Multiplexing Wi-Fi antenna) |
|
Connector |
RP-SMA-K |
|
Standards |
Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
GNSS/GPS
|
GNSS Antennas |
1 |
|
Connector |
SMA-K |
|
Technology |
GPS |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x MDM, 1 x USR, 1 x Signal |
|
Watchdog |
External |
|
USB |
1 x USB 2.0 (host), Type A, 5 V, 900 mA |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
24 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 5.0 W@24 V |
|
Recommended Power Supply |
24 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
IP30 |
|
Housing & Weight |
Metal, 567 g |
|
Dimensions |
49 x 105 x 128 mm |
|
Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
|
Operating Temperature |
-40 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
14GB |
|
RAM available for SDK |
1.5GB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 4 EN 61000-4-11 (Dips) |
Available Models
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * Denotes Certification in Progress
