Robustel EG5101p
Embedded Industrial edge computing gateway with Dual-SIM 4G LTE Cat-1, Serial and a Debian-based OS

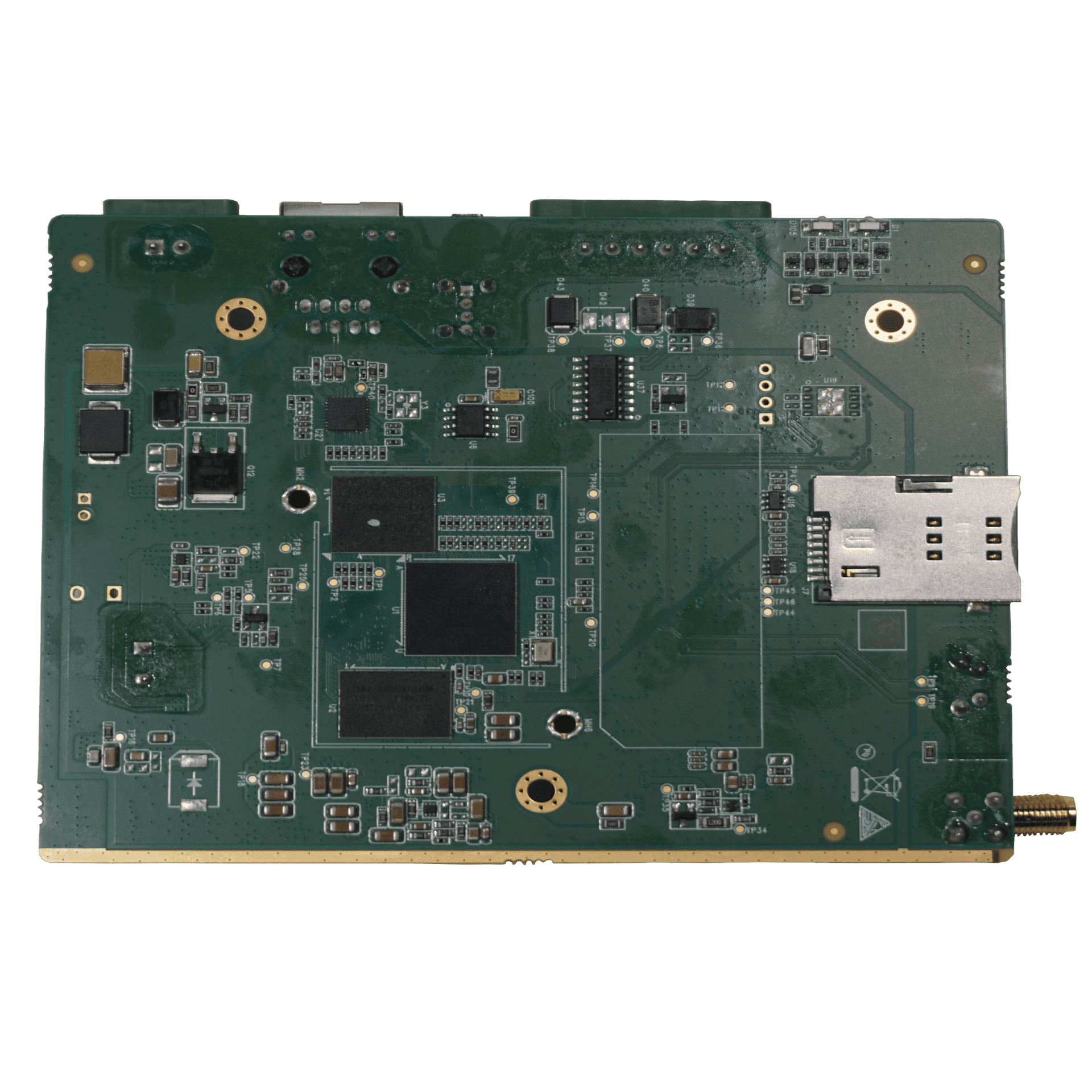

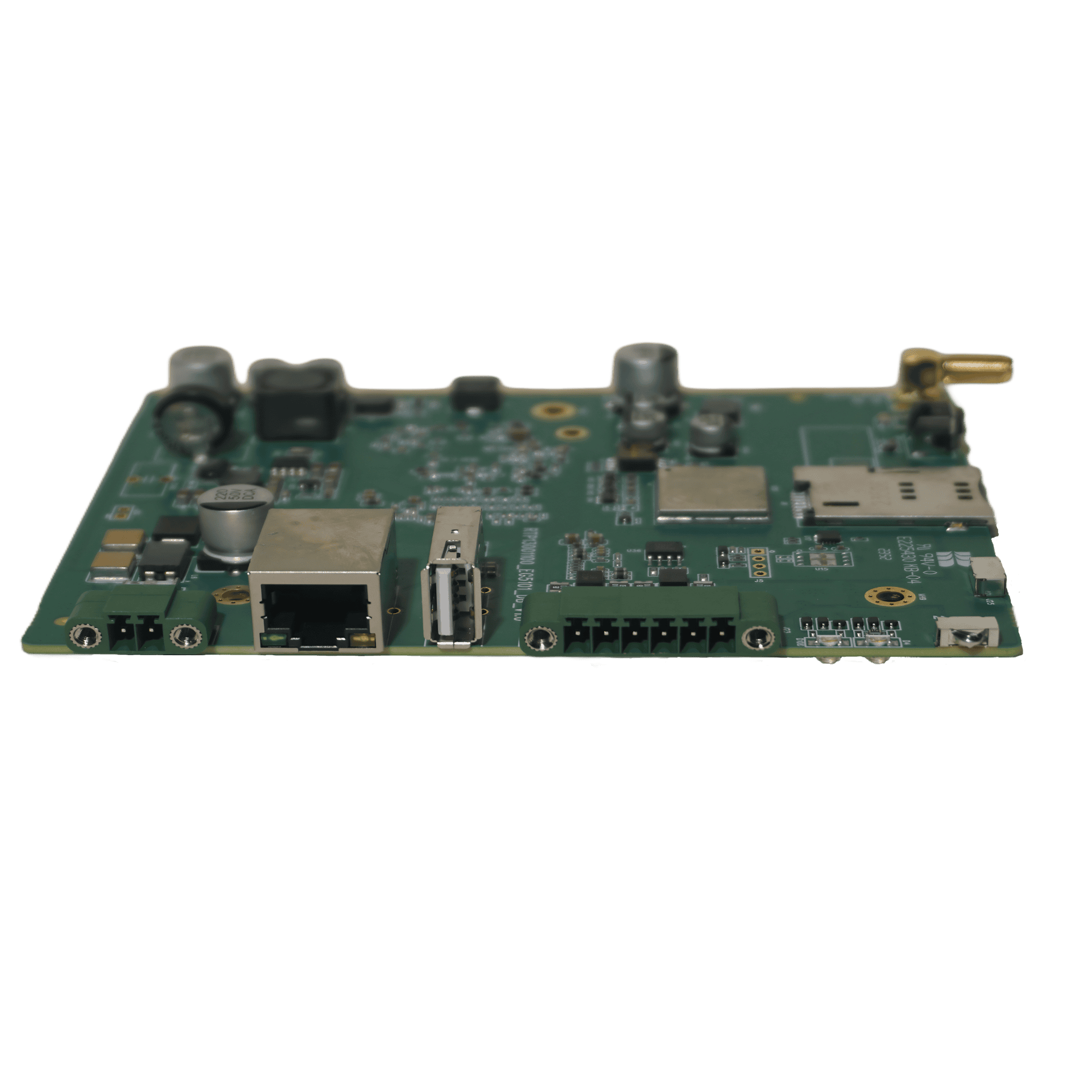

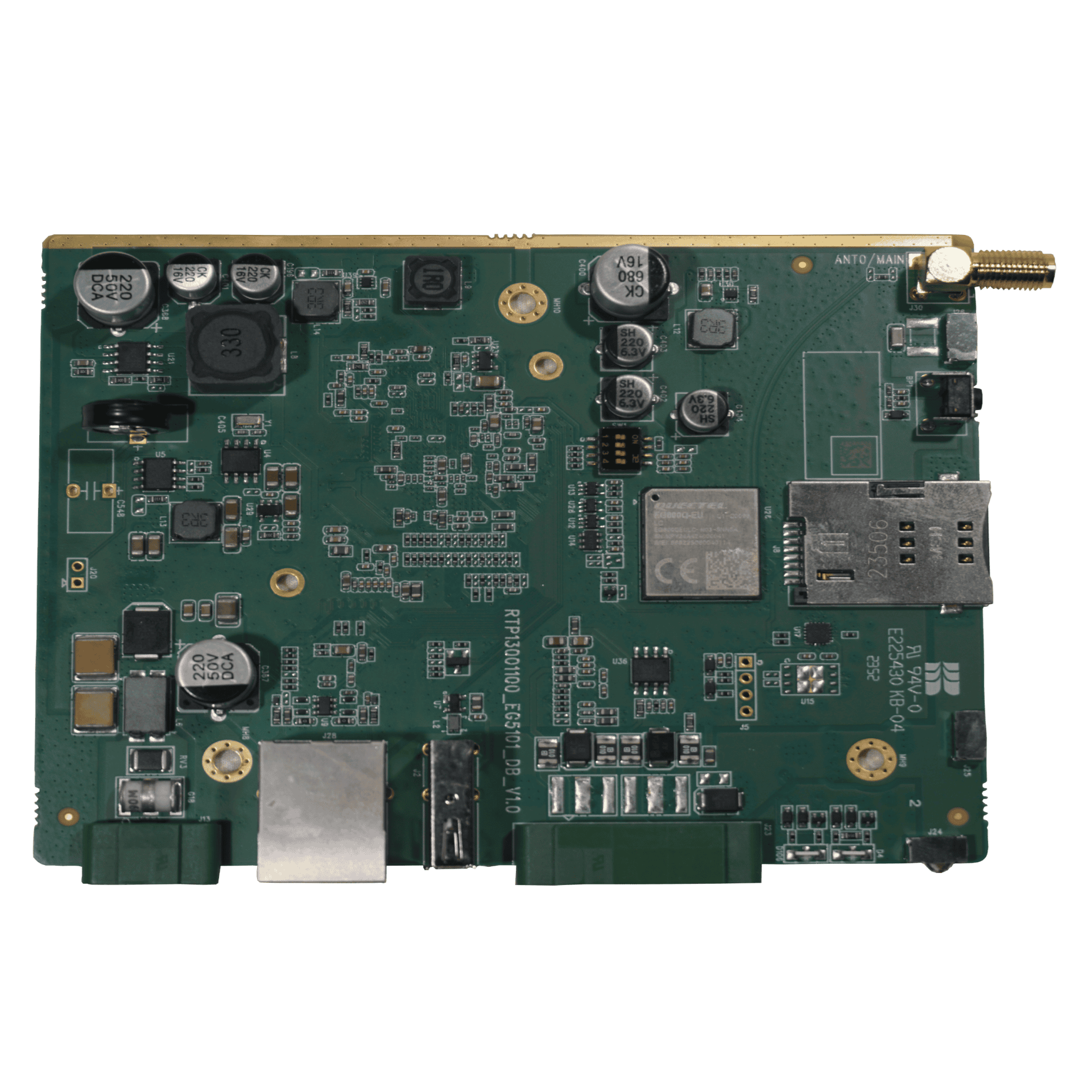

The EG5101p is the board-level, embedded version of Robustel’s EG5101 edge gateway. It’s designed to be built directly into your own hardware — chargers, kiosks, cabinets, controllers — when you want managed cellular backhaul and on-device processing without bolting in a boxed gateway.
Powered by an NXP i.MX 6ULL (792 MHz) with 8 GB eMMC, the EG5101p runs RobustOS Pro (Debian 11) and supports containerized workloads. That means you can deploy your own applications for protocol bridging, buffering, data reduction, and local decision-making at site level, instead of streaming every raw register back to the cloud.
For connectivity, the EG5101p combines LTE Cat 1 with dual-SIM redundancy and Ethernet WAN for resilience in the field. An enterprise VPN toolkit (IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN) gives you secure tunnels back to your network — even in remote or untrusted locations.
For industrial integration, the board exposes RS-232 and RS-485 alongside Ethernet, so you can talk directly to PLCs, meters, legacy instruments, and panel controllers as well as modern IP devices. Wide temperature tolerance and panel-friendly mounting make it suitable for plant rooms, street cabinets, and OEM enclosures.
In short: EG5101p gives you an embedded, Linux-based edge compute platform with built-in cellular and industrial I/O, ready for rapid integration.
DUAL-SIM CELLULAR
4G/LTE Cat-1, Dual-SIM Card support for failover
INDUSTRIAL READY
Metal Housing, Small Form Factor and -20 – +70 °C Support
INTERFACES
1x LAN and RS-232 & RS-485 Serial
OPERATING SYSTEM
RobustOS Pro – Full Linux Debian Operating System
RCMS ON-BOARD
RCMS Cloud device management enabled
Edge Gateway Series ‘Quick Pitch’ Video
Example EG5101p Use Cases
Smart Metering
Poll Modbus meters via RS-485, aggregate/threshold locally in Docker, buffer data, then send compact reports over LTE Cat-1 to MDMS/SCADA with RCMS oversight.
Water & Plant Monitoring
Connect legacy RS-232/RS-485 instruments at reservoirs, pump stations, weather/water-quality sites. Run edge rules to detect excursions and rate-limit chatter; uplink summaries over Cat-1.
Rental & Mobile Equipment
Read controller telemetry over serial, apply on-box logic for runtime/alerts, batch uploads via Cat-1 to fleet systems—keeping airtime predictable and management centralized.
Looking for more use cases?
With millions of Robustel devices deployed across more than 100 countries, it’s impossible to capture every use case above. Explore the links below to discover some of the exciting and innovative ways our technology is making an impact worldwide.
This Device is RCMS Ready
RCMS is a cloud-based IoT device management platform that gives you real-time visibility across your entire Robustel fleet. So you can troubleshoot, update, and optimize performance from anywhere at anytime, without sending engineers to site.
System Architecture
|
Operating System |
RobustOS Pro |
|
CPU |
i.MX 6ULL, 792 MHz |
|
RAM |
512 MB DDR3/1 GB DDR3 |
|
Flash |
8 GB eMMC |
Cellular
|
Supported Technologies |
4G/LTE Cat-1 |
|
Antennas |
1 (MAIN) |
|
Connector |
SMA-K |
|
SIM |
2 x Mini SIM (2FF) |
Ethernet
|
Ethernet Ports |
1 x 10/100Mbps |
|
Magnet Isolation Protection |
1 KV |
Serial Port
|
Serial Ports |
1 x RS-232 + 1 x RS-485 |
|
Connector |
6-pin 3.5 mm terminal block with lock |
|
ESD Protection |
8 KV air, 4 KV contact |
|
Baud Rate |
300 bps to 115200 bps |
|
Signal Definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), GND |
Other Interfaces
|
Reset Button |
1 x RST |
|
LED Indicators |
1 x RUN, 1 x RSSI, 1 x USR, 1 x MDM |
|
Watchdog |
External |
|
USB |
1 x USB 2.0 (host), Type A, 5 V, 500 mA |
Power Supply & Consumption
|
PSU Connector |
2-pin 3.5 mm terminal block with lock |
|
Input Voltage |
12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
|
Power Consumption |
Idle: 1 W@12 V |
|
Recommended Power Supply |
12 V DC/1.5 A power adapter |
Physical Characteristics
|
Ingress Protection |
Exposed Board – Coating Options Available, Contact Robustel |
|
Housing & Weight |
174 g |
|
Dimensions |
32 x 105 x 134.8 mm |
|
Installation Options |
Three screw holes |
|
Operating Temperature |
-20 – +70 °C |
|
Storage Temperature |
-40 – +85 °C |
|
Relative Humidity |
5 – 95% RH (non-condensing) |
Software Features
|
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
|
VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
|
Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
Remote Management |
RCMS, Web, CLI, SMS |
|
Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
|
SIM Management |
Smart Roaming |
|
Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
|
Supported Programming Languages |
C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
|
Flash available for SDK |
6GB |
|
RAM available for SDK |
256 MB/768 MB |
Regulatory and Type Approvals
|
Environmental |
RoHS 2.0 |
|
EMI |
EN 55032 Conducted Emission Class B |
|
EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 2 |
