4G/LTE Connectivity for Vending Machines and Kiosks Using the R1520
A Robustel Application Example
Application Example – Fast Facts
Industry
Retail & Payments, Vending Machines, Kiosks
Product(s)
R1520 4G/LTE Router, RCMS
Challenges
Unattended machines must process cards, report inventory, and accept remote updates regardless of venue network quality or policy. Estates span malls, campuses, stations, and forecourts where site networks are unavailable, untrusted, or inconsistent. Rolling a truck to reboot a cabinet or change a setting destroys margin.
Expected Outcomes
Each machine carries its own secure cellular path, with predictable routing and encrypted maintenance access. Operations can see health in one place, push changes safely, and reduce visits raising availability and lowering cost to serve.
Make unattended feel managed
A vending or self-service kiosk only earns when it is online. Card payments need a clean path to the processor. Telemetry needs to arrive on time so replenishment and fault triage are not guesswork. Firmware and menu updates need to move quietly in the background, not wait for a technician with a USB stick.
The R1520 places a consistent cellular connection inside each cabinet, independent of the venue. That means the machine talks to your systems the same way everywhere, with encryption, access controls, and a dashboard view across the estate. Your team focuses on revenue, stock, and service quality, not network firefighting.
Business Challenges
Retail technology leaders face the same pressure points across hundreds or thousands of mixed sites. The issues below show up repeatedly in service data and support queues.
- Card acceptance at all times: Payments must not depend on a venue LAN that is locked down, misconfigured, or unreliable.
- Diverse environments: Indoor atriums, outdoor foyers, underground corridors, and metal enclosures change RF behavior and power conditions.
- Security expectations: Payment modules and controllers need an encrypted route and controlled access. Audit trails matter during disputes and vendor interventions.
- Operational change control: Menu files, firmware, and parameter changes should move centrally without on-site access.
- Incident cost: A truck roll to power-cycle or reconfigure a device wipes out the profit on many machines for the month.
- Data discipline: Uncapped or misrouted traffic produces surprise bills. Teams need clear caps, alerts, and reports to stay ahead.
- Fleet visibility: Ops needs to know which machines are offline, which are on weak signal, and which are approaching data thresholds without logging into every unit.

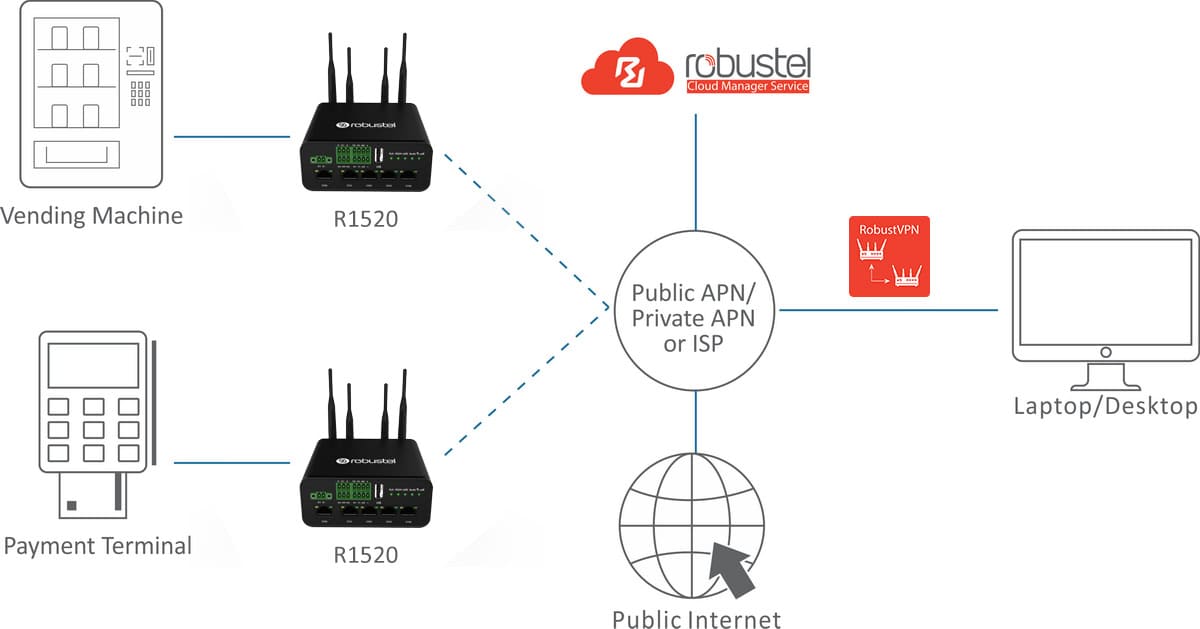

Solution Overview
Each cabinet ships with an R1520 preconfigured to establish a secure cellular uplink, segment traffic, and enroll into centralized fleet operations. The same design applies everywhere, so deployment is fast and support is consistent.
- Dedicated cellular backhaul: Provide 4G/LTE as the primary path or as a clean failover, avoiding venue dependencies.
- Dual-SIM resilience: Use two carriers to reduce exposure to local outages and keep machines reachable during events and peak periods.
- Encrypted paths to your systems: Establish IPsec or OpenVPN tunnels to your data center or cloud edge so transaction and maintenance traffic stays private and predictable.
- Scoped access and policy: Separate payment flows from telemetry and maintenance using firewall rules and VLANs. Limit who can reach what, and record access.
- Centralized operations with RCMS: Enroll devices, apply templates, schedule firmware and configuration updates, and watch health and data use in a single view.
- Proactive alerts: Trigger notifications on offline status, high round-trip times, weak signal, or unusual data patterns so incidents are handled early.
- Cabinet-friendly integration: Compact footprint, industrial power options, and mounting accessories fit tight enclosures and retrofit programs.
- Field-aware RF design: Support for external antennas and extension leads to move the radio path away from metal and glass that detune signals.
Expected Customer Outcomes
Success looks different by role. The outcomes below reflect what stakeholders typically ask for when machines must run without supervision.
- Retail Operations Manager: Higher availability across varied sites; early warning on signal, data, and device health; smoother replenishment through reliable telemetry.
- Payments and Risk Lead: Encrypted paths and scoped access; clear change history and access logs for investigations and audits.
- Field Service Provider / Kiosk Integrator: Remote triage and controlled restarts reduce truck rolls; standardized configs shorten installs and de-risk handovers.
- Network Operations Center: One dashboard for status and alarms; faster isolation of RF, SIM, or device issues; shorter mean time to repair.
- Finance and Procurement: Predictable data usage with caps and alerts; lower total cost to serve through fewer site visits and less downtime.
Featured Products
Robustel R1520 4G/LTE Router
RCMS Cloud Device Management
Talk to an Expert
Rolling out or standardizing vending and kiosk connectivity? Speak to an expert and we’ll map a secure, repeatable design for your cabinets, payment flows, and service model.
