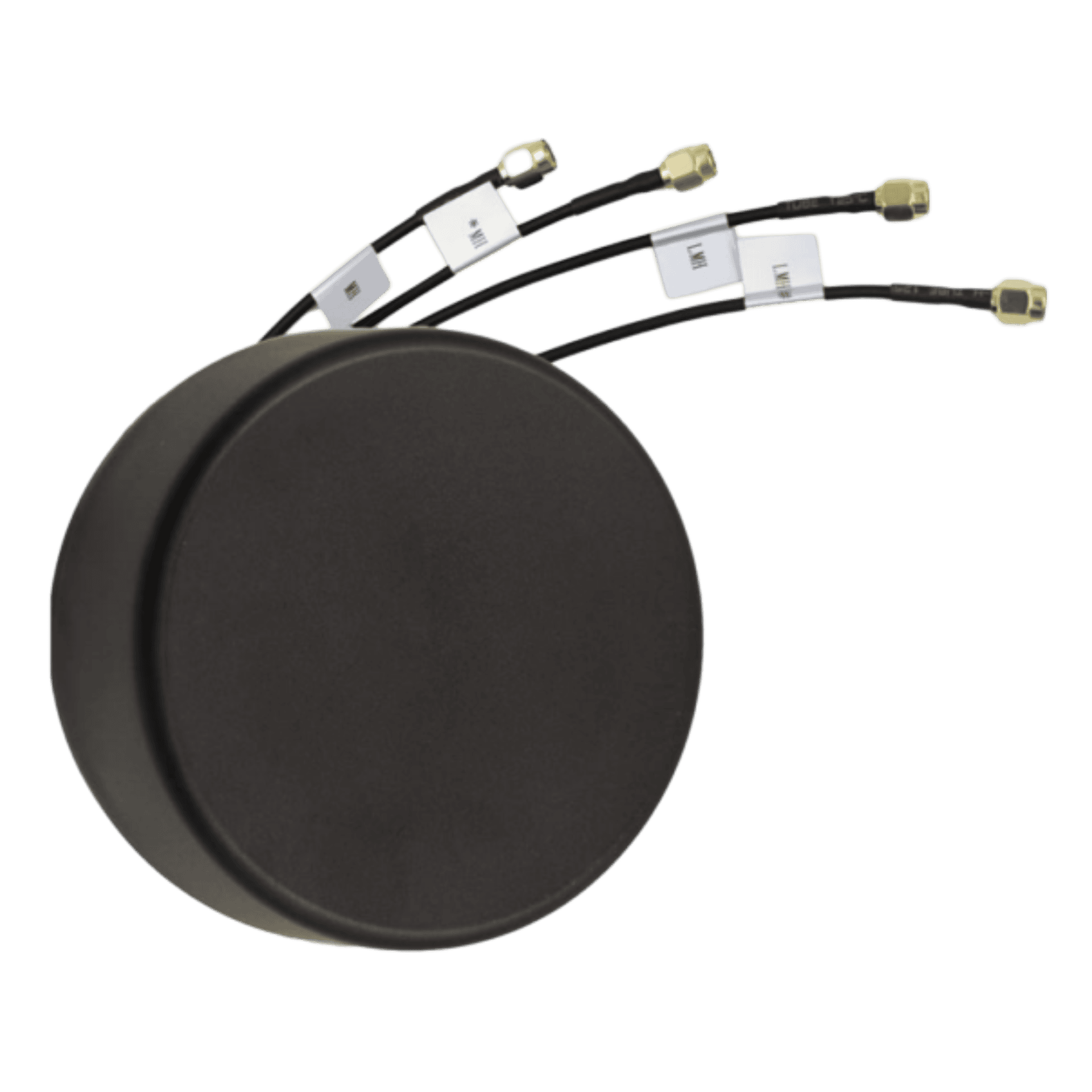

IP67 5G Cellular/GNSS Combo Antenna

Part Number (PN): E000330190


The IP67 5G Cellular/GNSS Combo Antenna (PN: E000330190) is a SMA male antenna covering 700–960 MHz, 1100–2690 MHz and 3300–5000 MHz bands, with typical gain of 3.3 dBi and a 3 m cable. Its IP67 rating makes it suitable for use with Robustel 5G and LTE routers and gateways in installations where a low-profile external antenna is required for cellular and GNSS connectivity.

Antenna Specifications

Compatible Products

R5020-5G-A09GL-A/B, MG460-A5AAZ-5G-A25GL, MG460-A5BAZ-5G-A25GL, EG5120-A2AAZ-5G-A25GL, EG5120-A2CAZ-5G-A25GL, EG5200-A5AAZ-5G-A25GL, EG5200-A5BAZ-5G-A25GL

Frequency Range

700MHz-960MHz, 1100MHz-2690MHz, 3300MHz-5000MHz

Gain

3.3 dBi

Connector

SMA Male

Size/Length

3m Cable Length

Weight

577g

IP Rating

IP67
