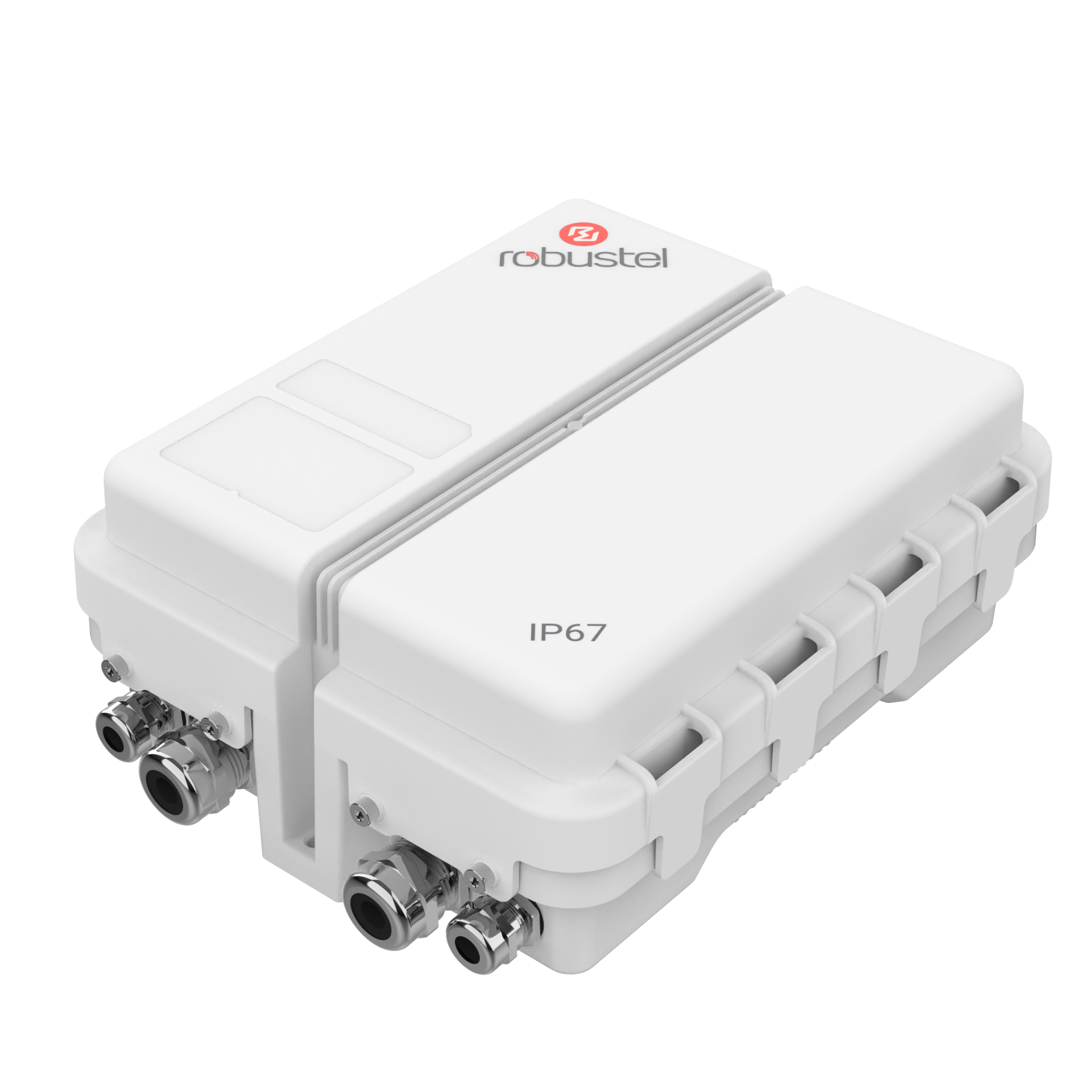

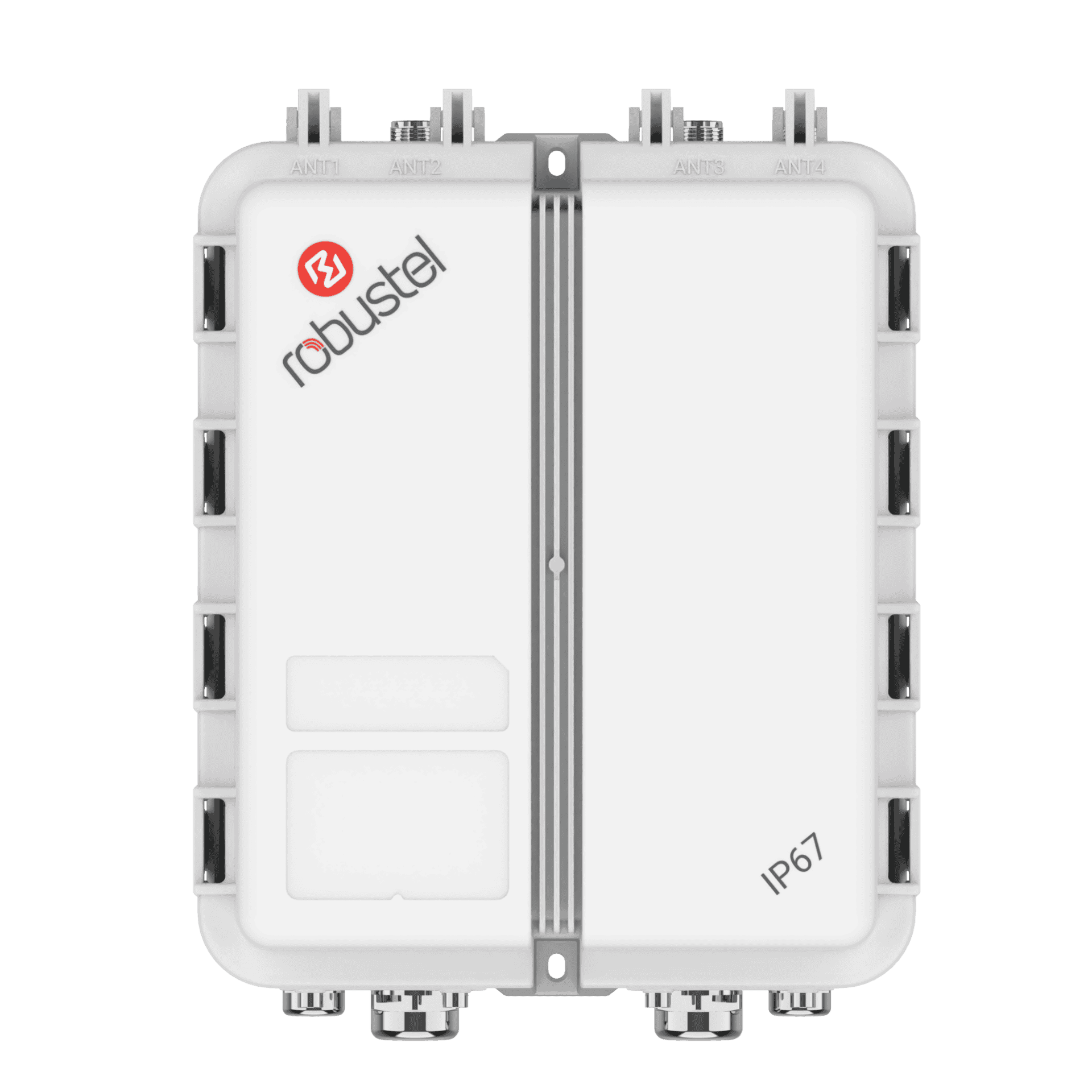

Robustel OTD6710 IP67 Enclosure
IP67 Industrial Enclosure with Integrated Cooling and Flexible RF Support
The OTD6710 is a ruggedized waterproof enclosure designed to house Robustel 4G/5G industrial routers and gateways in demanding outdoor environments. A built-in heavy-duty aluminium heat sink manages thermal load without active cooling, preventing performance throttling during sustained operation in high-ambient-temperature conditions. The enclosure body is moulded from UL 746C F1-rated PC 945U resin, providing UV resistance and UL94-V0 flame retardancy for long-term exposure to direct sunlight and temperature extremes.
RF configuration is flexible: up to four external N-type connectors support high-gain fiberglass antennas for extended range, while up to six internal PCB antennas (four cellular, two Wi-Fi) provide a clean, integrated installation where external antennas aren’t required. Internal pigtails are customisable to SMA or RP-SMA to match the installed device’s antenna ports.
A hinge-connected lid secured by dual quick-release buckles and front reinforcement screws achieves a hermetic IP67 seal while keeping on-site access straightforward. A built-in waterproof breather valve balances internal and external air pressure to prevent condensation buildup. Four waterproof cable glands — two M16 for power and serial, two M22 for Ethernet — complete the cable management, with support for wall and pole mounting across all variants.
IP67 RATED
Full dust exclusion and protection against temporary submersion — suitable for exposed outdoor installations in all weather conditions.

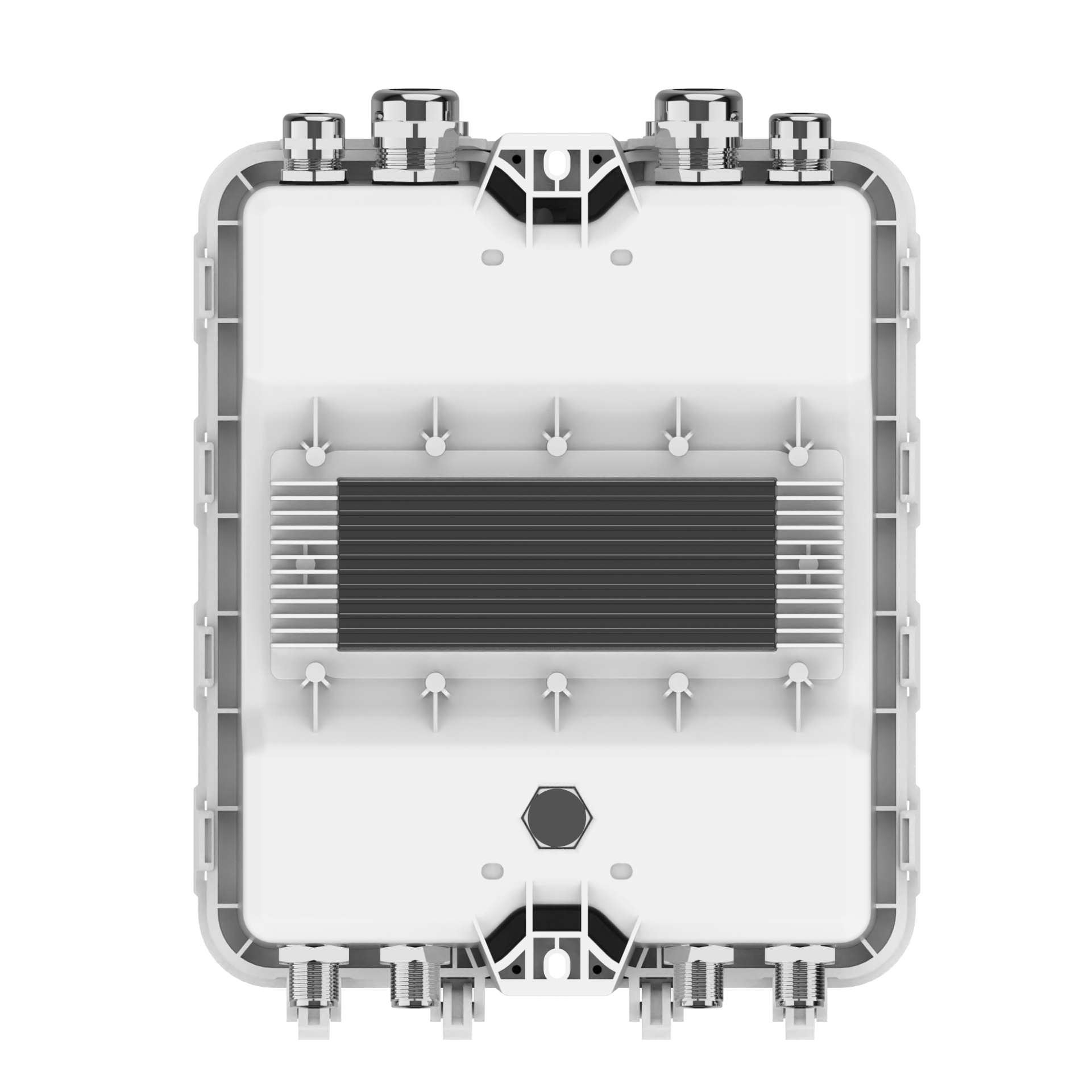

BUILT-IN HEAT SINK
Built-in 156 × 75 × 14 mm aluminium heat sink dissipates heat from high-power routers and gateways without active cooling, preventing thermal throttling under sustained load.

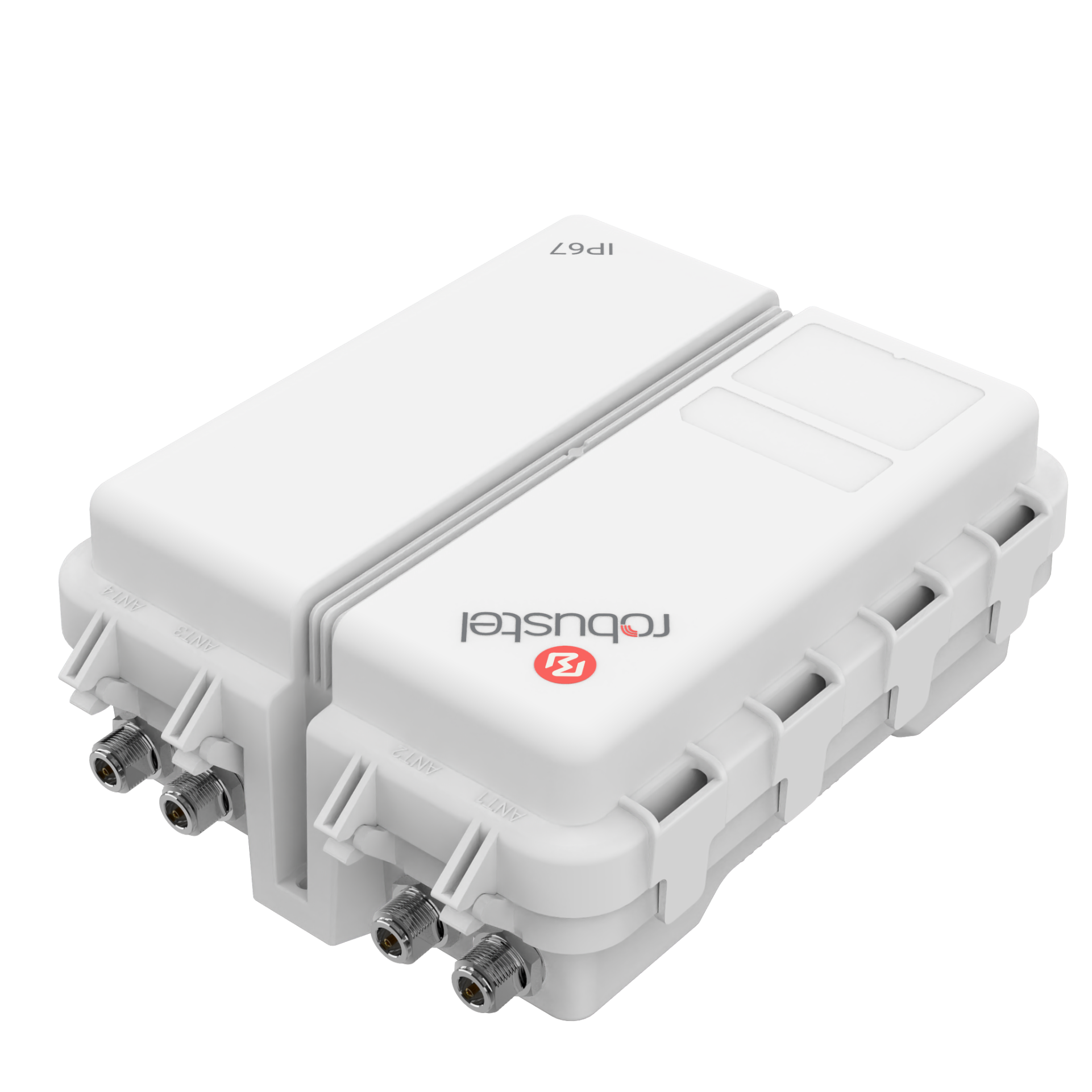

FLEXIBLE RF CONFIG
Up to 4 external N-type antenna ports or up to 6 internal PCB antennas (4× cellular + 2× Wi-Fi). Internal pigtails configurable to SMA or RP-SMA to match the installed device.

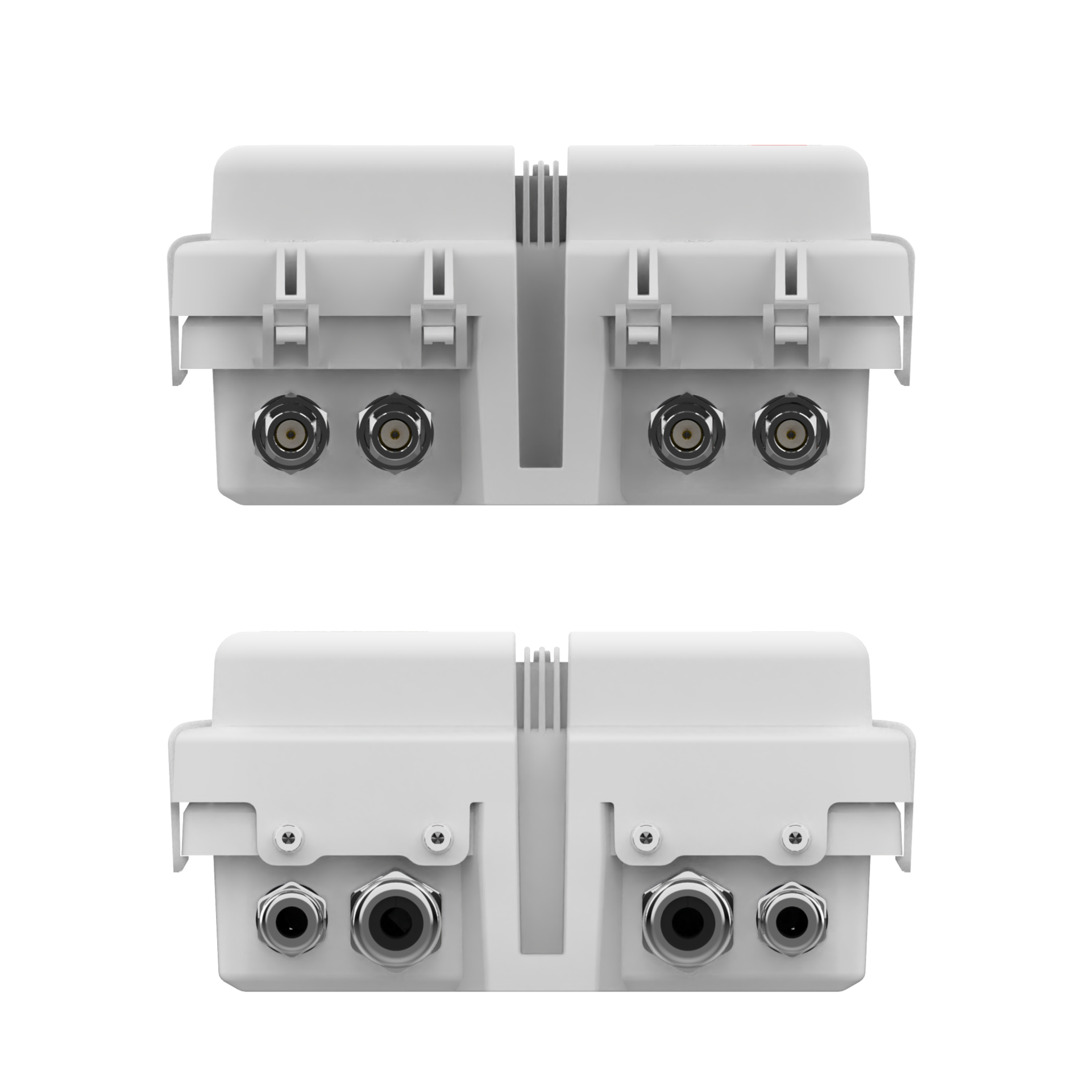

WATERPROOF GLAND
4× IP67-rated cable glands (2× M16 for power/serial, 2× M22 for Ethernet) with a clamping range of 6–8 mm cable O.D.
COMPATIBLE MODELS
Suitable for R1520, R1520LG, R5010, R5020L, R5020 and R5030.
Example OTD6710 Use Cases
Smart Utilities & Metering
Deploy 4G/5G routers in exposed locations — roadside cabinets, substations, or remote monitoring sites — without a separate weatherproof enclosure. The OTD6710 provides IP67 sealing and thermal management in a single integrated unit, reducing hardware complexity and installation time.
LoRaWAN Gateway Deployment
Pair with the R1520LG to create a fully weatherproof outdoor LoRaWAN gateway node for smart metering, precision agriculture, or asset tracking networks. External N-type ports support high-gain fiberglass antennas for maximum coverage across wide-area deployments.
Oil, Gas & Mining Edge Nodes
Mount routers or edge computing gateways on poles and structures in environments where temperature extremes, UV exposure, and moisture ingress are constant operational risks. The -40 to 75°C operating range and IK08 impact rating suit harsh industrial sites.
Vous recherchez d'autres cas d'utilisation ?
Avec des millions d'appareils Robustel déployés dans plus de 100 pays, il est impossible de répertorier tous les cas d'utilisation ci-dessus. Explorez les liens ci-dessous pour découvrir certaines des façons passionnantes et innovantes dont notre technologie a un impact dans le monde entier.
Options de montage du produit

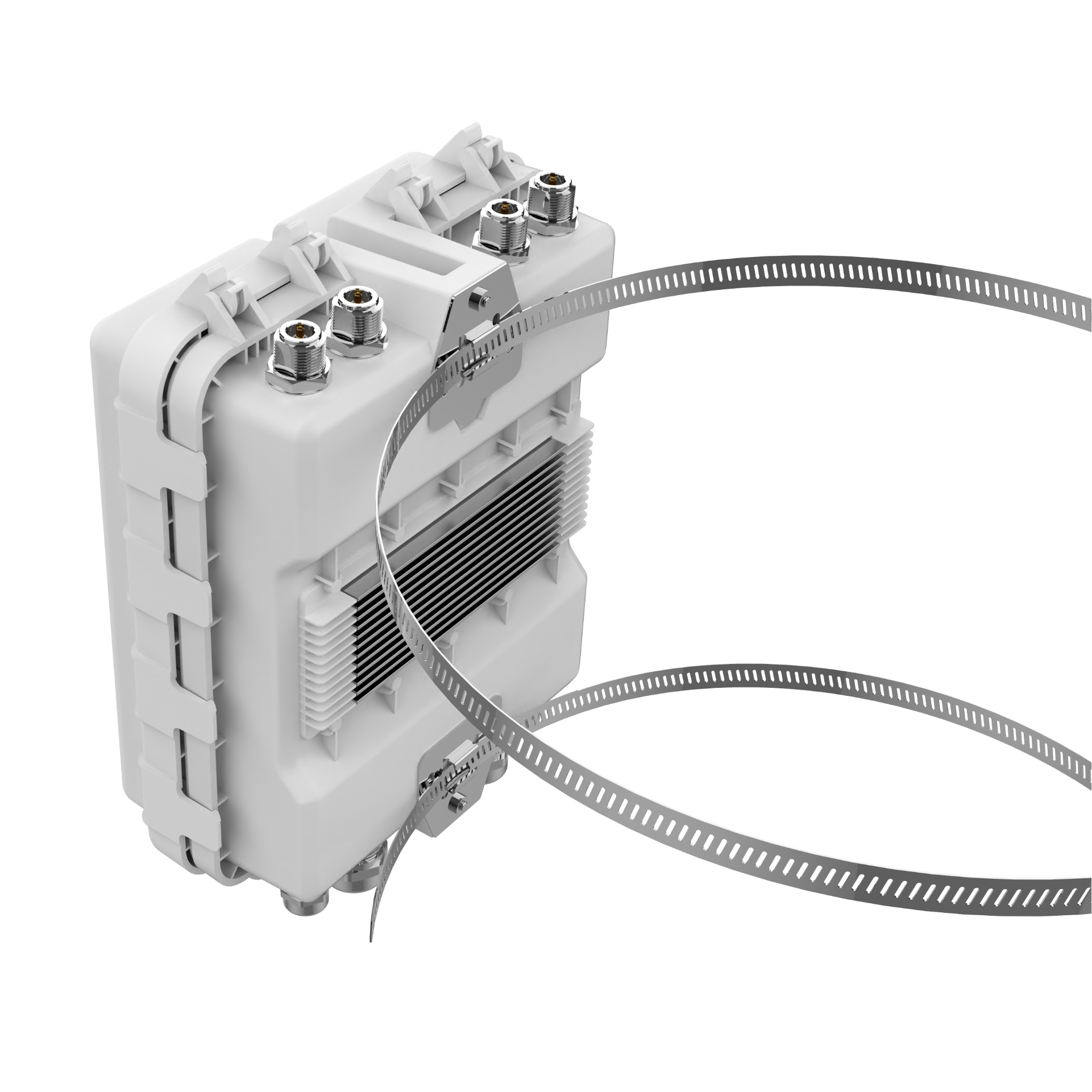

Pole Mount
Support mural
REMARQUE : Le produit est encore en cours de développement, les spécifications sont susceptibles d'être modifiées jusqu'à la mise en production.
M16 Cable Gland
|
Number of Ports |
Optional, Max 2, for power and serial cables |
|
Clamping Range |
6mm~8mm, Cable outer diameter (O.D.) |
M22 Cable Gland
|
Number of Ports |
Optional, Max 2, for Ethernet |
|
Clamping Range |
6mm~8mm, Cable outer diameter (O.D.) |
External Antennas
|
Connecteur |
N-Type, SMA to N-type or RP-SMA to N-type |
|
Number of Ports |
Optional, Max 4 |
|
Others |
To be used in conjunction with an external fiberglass antenna |
Internal Cellular Antennas
|
Connecteur |
SMA Mâle |
|
Frequency |
700-960 MHz, 1710-5000 MHz |
|
Gain (max) |
7.0 dBi@700-960 MHz |
|
Number of Antennas |
Optional, Max 4 |
|
Others |
50 Ohm, Omni-directional, Linear |
Internal Wi-Fi Antennas
|
Connecteur |
RP-SMA mâle |
|
Frequency |
2.4-2.5 GHz, 5.15-5.85 GHz |
|
Gain (max) |
5.5 dBi@2.4-2.5 GHz |
|
Number of Antennas |
Optional, Max 2 |
|
Others |
50 Ohm, Omni-directional, Linear |
Caractéristiques physiques
|
Dimensions (WxDxH) |
258.5 x 197.4 x 95 mm |
|
Weight(N.W.) |
Approx. 1.7 kg (Variations by configuration) |
|
Mounting |
Wall mounting and pole mounting |
|
Material |
PC 945U (UL 746C F1-rated)，UL94-V0 |
|
Thermal System |
Built-in Aluminum Heat Sink , 156x75x14mm |
|
Waterproof Vent Valve |
Intégré |
Environmental Characteristics
|
Température de fonctionnement |
-40°C to 75°C * |
|
Température de stockage |
-40°C to 85°C |
|
Humidité relative |
5% to 95% (non-condensing) |
|
Indice de protection IP |
IP67 |
|
IK Rating |
IK08 |
*When the router is operating inside a waterproof enclosure, expect an internal temperature rise of approximately 10°C above ambient.
Homologations réglementaires et homologations de type
|
Environnemental |
RoHS 2.0 |
Modèles disponibles
|
Modèle |
Code de commande |
Internal Celluar Antennas |
Internal Wi-Fi Antennas |
External |
Cable Glands |
Contenu du paquet |
Produit(s) compatible(s) |
|
OTD6710-A2410 |
S000200007 |
2 |
2 |
1 |
2x M16 |
1x OTD6710-A2410 |
R1520/ R1520LG |
|
OTD6710-A2600 |
S000200008 |
4 |
2 |
0 |
2x M16 |
1x OTD6710-A2600 |
R5020Lite |
|
OTD6710-B2600 |
S000200009 |
4 |
2 |
0 |
2x M16 |
1x OTD6710-B2600 |
R5020/ R5030 |
|
OTD6710-C1402 |
S000200010 |
4 |
0 |
0 |
1x M16 |
1x OTD6710-C1402 |
R5010 |
NOTE:
1. For more information about regional & carrier specific variants please contact us
2. * You need to select an SMA to N-type or RP-SMA to N-type pigtail, depending on whether the device uses standard SMA or RP-SMA female ports.
