S6000U Multifunctional Smart Sensor

Robustel’s S6000U is a multifunctional smart sensor that monitors temperature, humidity, pressure, light, noise, acceleration, tilt, vibration, and more.

The key advantages of S6000U are:
–Integrated Design for Efficiency
–Modbus Protocol Support:
–Threshold Configuration and Alarm Detection
–Flexible Data Collection Modes

  • Key Features
  • Specification
  • Downloads
  • Model
  • An all-in-one sensor capable of collecting multiple on-site environmental data points, offering a cost-effective solution to streamline deployment expenses
  • Support for the Modbus protocol, facilitating seamless software integration for system integrator
  • Pre-configured alarm threshold parameters for early risk detection and accident prevention
  • Non-intrusive installation, easy todeploy and maintain
  • A fully industrial-grade design suitable for:
    • Industrial equipment operation monitoring
    • Production environment monitoring
    • Electrical cabinet environment monitoring
    • Elevator car operation monitoring
    • Power distribution room environment monitoring
    • Warehouse environment monitoring





Temperature Sensor
Range -20~+70°C
Accuracy ±1.5°C
Resolution 14 bit



Humidity Sensor
Range 5%~95%RH
Accuracy ± 3% RH
Resolution 14 bit



Atmospheric Pressure Sensor
Range 26000~126000 Pa
Accuracy ±10 Pa



Light Sensor
Range 0 ~ 64000 Lux
Light Level 1/2/3/4/5
Resolution 16 bit



Noise Sensor
Range 0~120 dB SPL
Sensitivity -26 DBFS (Typical)
Resolution 16 bit



Acceleration Sensor
Range -2~+2 g
Accuracy ± 0.4 m/s2 (Typical)
Resolution 16 bit



Distance Sensor
Range 4cm ~ 360cm
Accuracy ± 20mm (Dark Environment)



Tilt Sensor
Range 0~90°
Accuracy ±2°

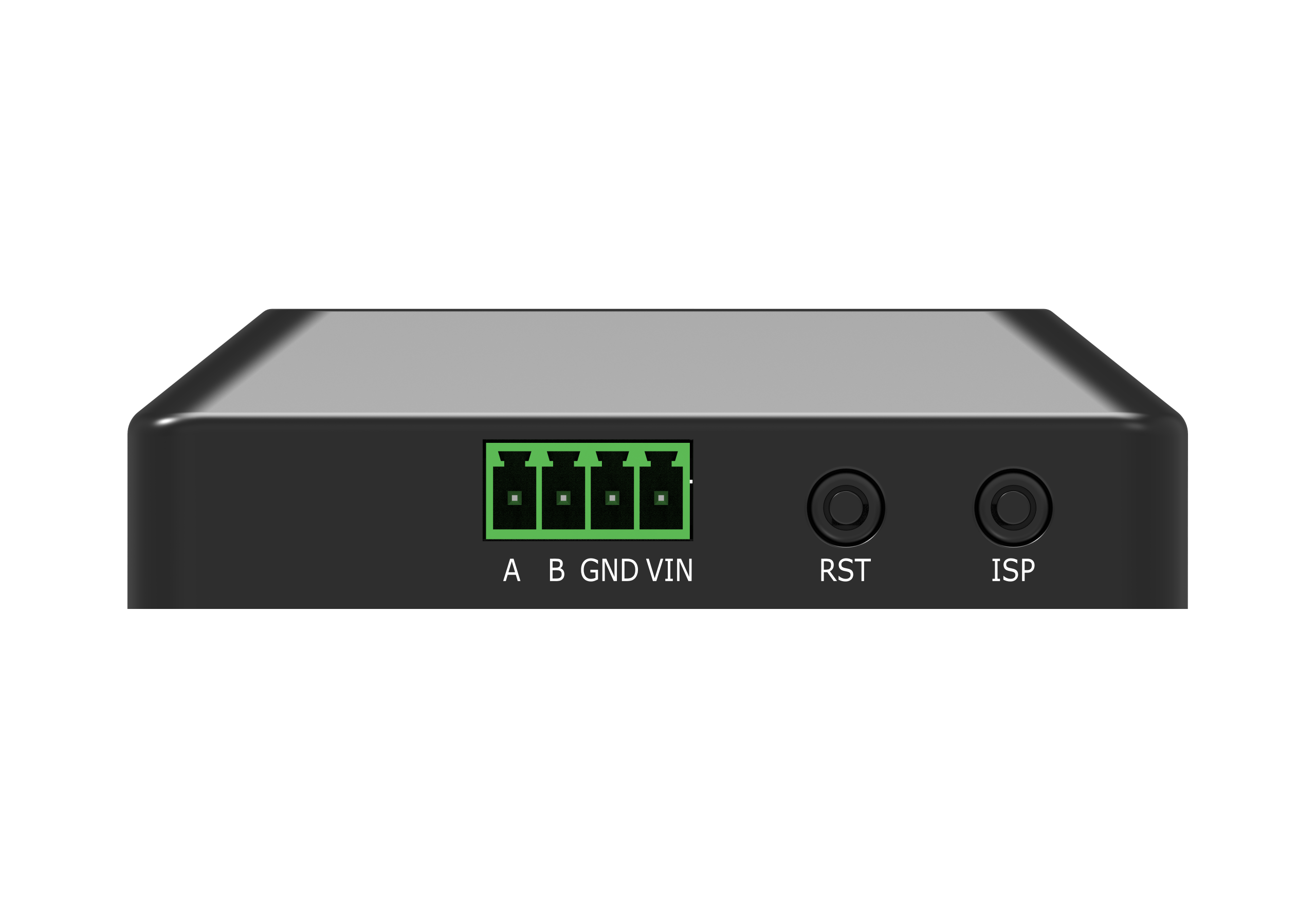

Serial Interface
Type 1 x RS485
Signal A, B, GND
Baud rate 9600/38400/57600/115200 bps
Connector 4-pin 3.5mm female terminal(shares the same connector as the power supply)
Data Transfer Protocol Modbus



LED
Number of LEDs 2 Monochrome Indicators
LED Indicator Definition Blue (RUN), Red (ERROR)





Button
Number of buttons 2
Signal definition RST, ISP



Power Supply and Consumption
Input voltage 9 ~ 24 VDC
Signal definition VIN, GND
Connector 4-pin 3.5mm female terminal(shares the same connector as the serial interface)



Physical Characteristics
Ingress protection IP31
Housing & Weight Plastic (PC+ABS), 30.5g
Fire Protection Rating UL94 V-0
Dimension 76*37*21.5 mm
Installation Bonding with 3M double-sided tape
Operating temperature -20 ~ +70 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH non-condensing



Regulatory and Type Approvals
Approval CE, FCC, UKCA, RCM
Environmental RoHS2.0, WEEE



RT146_DS_S6000U_V1.0.0



*Please contact our Technical Support if you have any trouble finding the resources.

Model PN Package Information Country/Region Certification

(*In progress)

S6000U A014600001 1 x S6000U(B014600001)

1 x 3M double-sided Tape

1 x 4-PIN Terminal Block

1 x 12W Power Adapter

Global CE, FCC, UKCA, RCM
A014600002 1 x S6000U(B014600001)

1 x 3M double-sided Tape

1 x 4-PIN Terminal Block

*For more information about ordering, please contact your Robustel sales representative.
