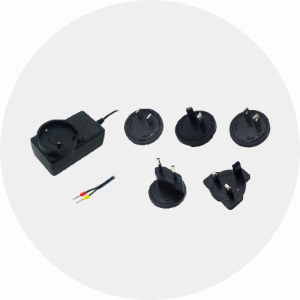

S012018toS012023 2PIN Cord End Terminal Power Supply

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100 ~ 240 VAC 90 ~ 264 VAC
Input Frequency 50/60 Hz 47 ~ 63 Hz
Input Current (@100-240 VAC) – 1.0 A
Inrush Current (@100-240 VAC) – 80 A
Output Voltage 24 24 VDC±5%
Output Current 0 ~ 1.0 A –
Overshoot – 10%
Certification IEC 62368-1:2014 (Second Edition)
Short-Circuit Protection √
Input Protection Fuse
Hi-POT (Dielectric Withstand Test) 3000 VAC
MTBF 20000 h
Weight 170g
Dimension L:76*W:44*H:31.3mm
Input Plug&Part Number Global* UK US CN AU EU
S012023 S012018 S012019 S012020 S012021 S012022
*Note: The UK plug, US plug, AU plug, and EU plug are all included in Global version.
Output Connector 2-pin, with cord end terminal
Related Products EG5120, R5020, R5020-Lite
S012018toS012023_2PIN Cord End Terminal Power Supply 24VDC1.0A 24W_FLYER
Model PN
2PIN Cord End Terminal Power Supply S012018toS012023
