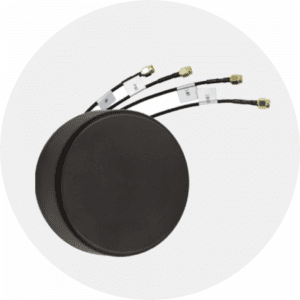

E003188 5G 4-in-1 Combo Screw Mount Antenna 0.5dBi 1M

  • Specification
  • Downloads
  • Model
Antenna Mechanical/Environmental
Frequency Range 700 ~ 960 MHz, 1100 ~ 2690 MHz, 3300 ~ 5000 MHz Installation Method Screw mount
Gain ≥ -0.5 dBi Housing Dimension Ø 120×43 mm
V.S.W.R 4.0 Max Ingress Protection Rating IP67
Polarization Linear Cable 4 x RG174, 1000 mm
Impedance 50 Ohm Operating Temperature -20°C ~ 80°C
Connector SMA male RoHS Compliant √
GNSS Supported
Related Products R5020, EG5120-5G
E003188 5G 4-in-1 Combo Screw Mount Antenna 0.5dBi 1M FLYER
Model PN
5G 4-in-1 Combo Screw Mount Antenna E003188
