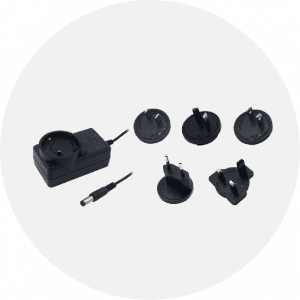

S012011-S012015 Barrel Type Jack Power Supply 12W

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100-240VAC 90-264VAC
Input Frequency 50/60 Hz 47-63 Hz
Input Current(@100-240 VAC) – 0.4A
Inrush Current(@100-240 VAC) – 60A
Output Voltage 12 VDC 12VDC±5%
Output Current 0-1.0A –
Overshoot – 10%
Certification IEC 62368-1:2014(Second Edition)
Short-Circuit Protection √
Input Protection Fuse
HIPOT (Dielectric Withstand Test) 3000VAC
MTBF 20000 h
Input Plug&Ordering Code UK US CN AU EU
S012011 S012012 S012013 S012014 S012015
Output Connector DC Barrel-Type Power Jack
Related Products R2000 Ent
S012011toS012015 Barrel Socket Power Supply 12VDC 1.0A 12W FLYER



Region UK US CN AU EU
PN S012011 S012012 S012013 S012014 S012015
